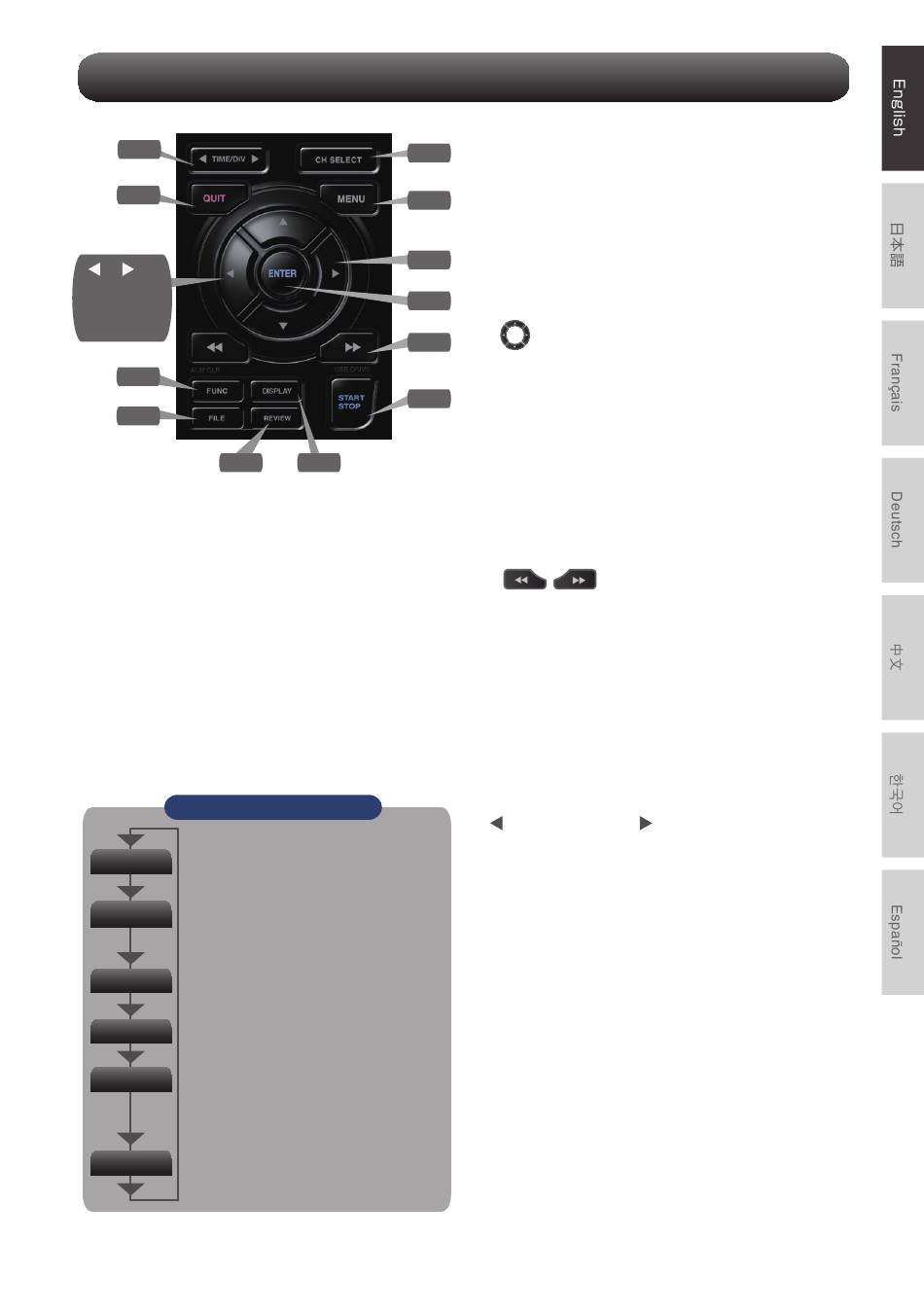

Descriptions of the Control Panel Keys

2
4
+ +
ENTER
Password
setting
12
11
10
1. CH SELECT
Switches between analog, logic pulse, and
calculation display channels.
2. TIME/DIV
Push the [TIME/DIV] key to change the time
axis display range on the waveform screen.
3. MENU
Push the [MENU] key to open a setup menu.
As you push the [MENU] key the setup screen
tabs change in the sequence shown below.
[Menu] Sequence
•AMP Settings
AMP
Set the input, range, filter, scaling, and
other channel based settings.
•Record Settings
DATA
Set sampling interval and data record
destination.
•Trigger Settings
TRIG
Set the specify recording start and stop
conditions.
•Alarm Settings
ALARM
Set the alarm conditions.
•Interface Settings
I/F
Set the USB ID.
If the optional wireless unit is installed,
configure settings for the wireless LAN
connection.
•Other Settings
OTHER
Set the screen brightness, background
color, language and etc.
4. QUIT (LOCAL)
1
Push the [QUIT] key to cancel the settings and
return to the default status.
3
If GL260 is in a Remote (Key Lock) status and
is run by a computer via a USB or WLAN
interface, push the key to return to a normal
5
operating status. (Local).
6
5.
7
Direction keys are used to select menu setup
items, to move the cursors during a data replay
8
operation.
9
6. ENTER
Push the [ENTER] key to submit the setting
and to confirm your settings.
7.
Fast forward and rewind keys are used to
move the cursor at high speed during replay or
change the operation mode in the file box.
Hold down both keys simultaneously for at
least two seconds to lock the key buttons.
(Orange key at the top right of window
indicates locked status).
To cancel key lock status, push both key again
for at least two seconds.
* Pushing these keys simultaneously with the
protection for the key lock operation.
8. START/STOP (USB DRIVE MODE)
Push the [START/STOP] key to initiate start
and stop of a recording when GL260 is in the
Free Running mode.
If the key is pushed while turning the power to
the GL260 on, the unit will switch from the USB
connection to USB DRIVE mode.
* For more information about the Drive Mode
7
Keys (DIRECTION KEYS)
Keys (KEY LOCK)
key + ENTER + key enables password
of the USB, refer to the User's Manual.
