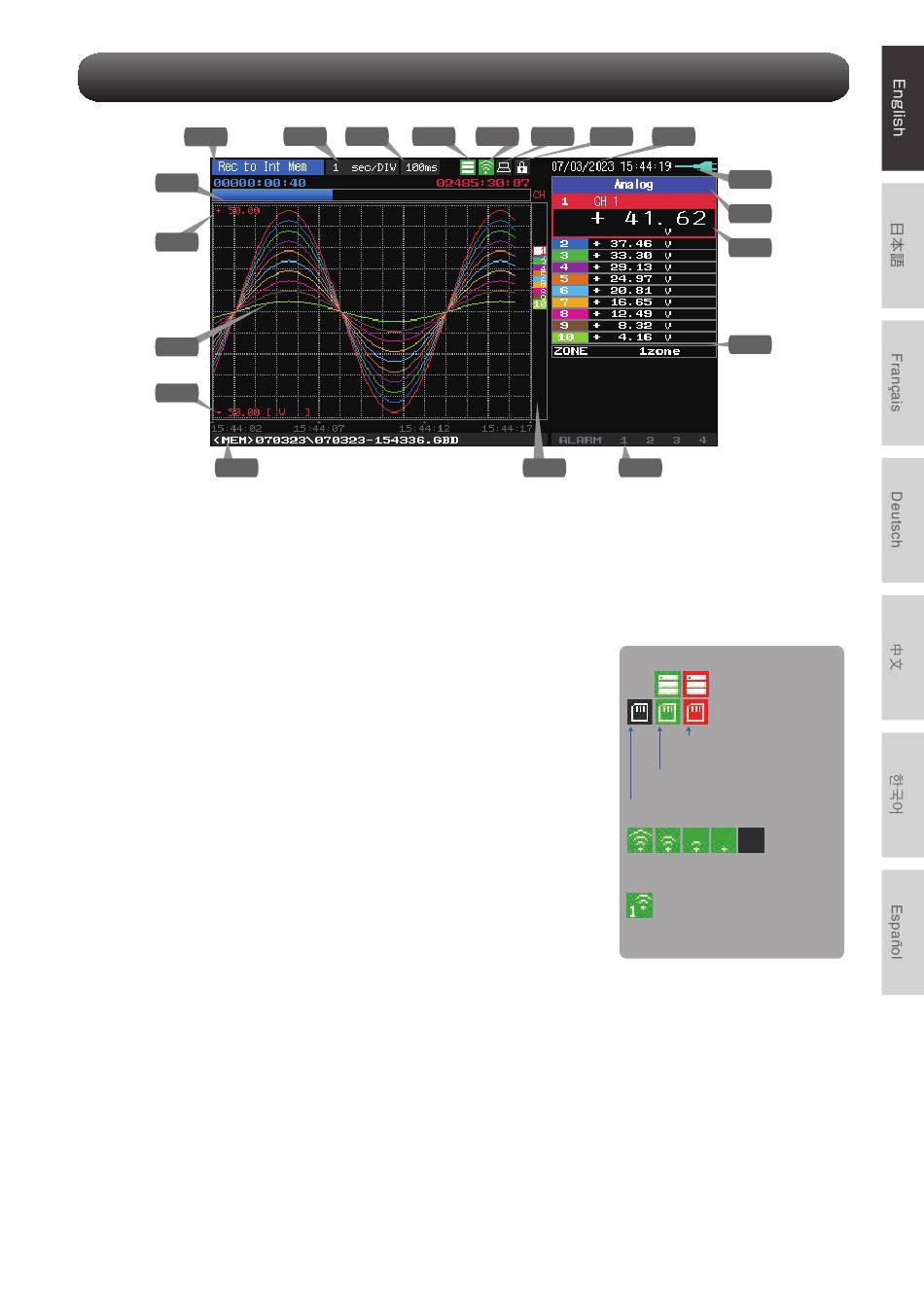

Descriptions of the Menu Screens

1
19
18
17
16
15
1. Status message
display area
2. Time/DIV display area
3. Sampling interval
display
4. Device access
display
(Internal memory)
5. Device access
display
(SD memory card /
wireless LAN display)
6. Remote lamp
7. Key lock lamp
8. Clock display
2 3 4
: Displays the operating status.
: Displays the current time scale.
: Displays the current sampling interval.
: Displayed in red when accessing the
internal memory.
: Displayed in red when accessing the
SD memory card. When the SD
memory card is inserted, it is displayed
in green.
(In station mode, the signal strength of
the connected base unit is displayed.
Also, in access point mode, the
number of connected handsets is
displayed. It turns orange when the
wireless unit is operating.)
: Displays the remote status. (Orange =
Remote status, white = Local status)
: Displays the key lock status. (Orange = keys locked, white = not
locked)
: Displays the current date and time.
9
5 6 7
14 13
Status icon
Internal/
SD memory card is inserted
SD memory card is not inserted
Radio field intensity display of base
unit (from Strong to Weak)
Child unit connection status
(0 to 5 units)
8
9
10
11
12
Internal/
SD memory card accessing
