Is possible to insert directly the Unit (using its unique number) by compiling the
"Selected BACnet Engineering
the Type" and "Select unit" the Type/Unit desired. If the second way is used, is
necessary to press the "Select Engineering

BACNET ACCESS:

By Pressing the "BACnet Access" button from the main window of SW67675 (Fig. 2) is possible to see the complete list of BACnet objects
related with their PROFIBUS slave module.

BACNET OBJECT MAP:

By Pressing the "BACnet Object
map of BACnet Objects.
ADFweb.com S.r.l.
Unit" field; or by selecting with the fields
Unit" button for confirm the choice.
Map" button from the main window of SW67675 (Fig. 2) is possible to create a .csv document with the
User Manual BACnet slave / PROFIBUS master - Converter
Document code: MN67675_ENG
"Select

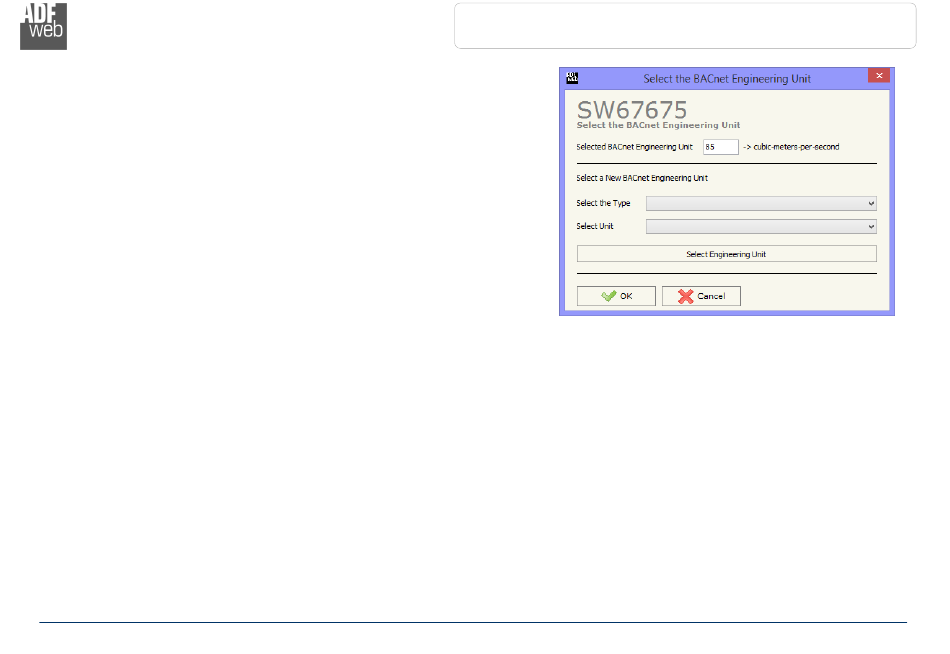

Figure 15: "Select the BACnet Engineering Unit"
window
