PROFIBUS:

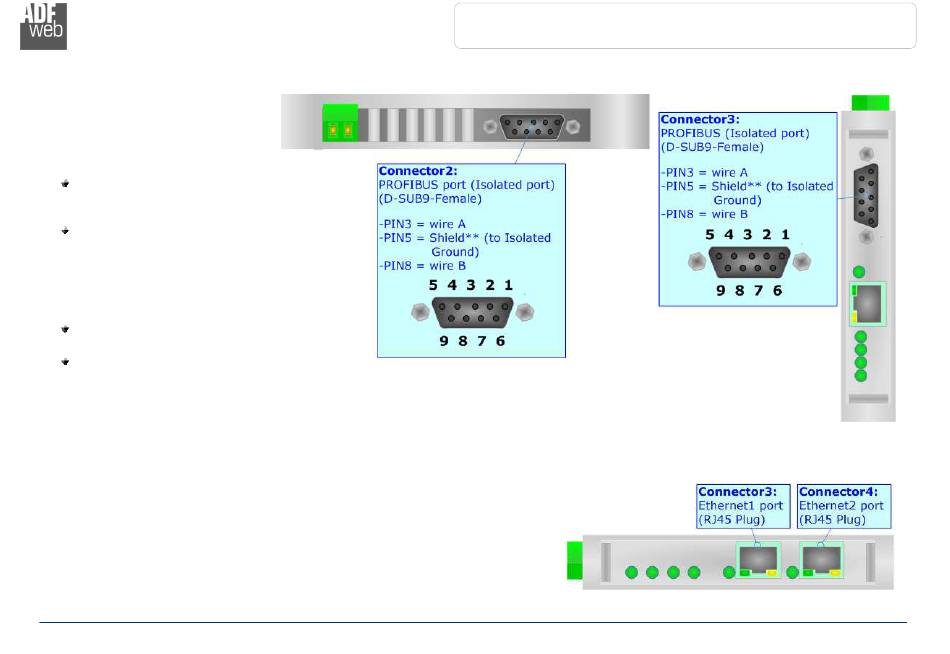

The PROFIBUS uses a 9-pin D-SUB
connector. The pin assignment is
defined like in the right figure.
Here some codes of cables:
Belden: p/n 183079A
Continuous Armor DataBus®
ISA/SP-50 PROFIBUS Cable;
Siemens: 6XV1830-0EH10
Overlapped aluminum-clad foil,
sheathed in a braided screen
of tinplated copper wires;
Here some codes of connectors:
VIPA: 972-0DP30 - EasyConn
PB 0°;
Siemens: 6GK1500-0FC10 -
PROFIBUS FC bus connector RS 485 180°.

ETHERNET:

The BACnet/IP connection and the updating of the Converter must be made using
Connector3 and/or Connector4 of HD67675-IP-A1 or Connector4 of HD67675-MSTP-
A1/HD67675-PTP-A1 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative
to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is
recommended the use of a straight cable, to connect the device to a PC/PLC/other is
recommended the use of a cross cable.
