Industrial Electronic Devices
RS485 (HD67675-MSTP-A1):

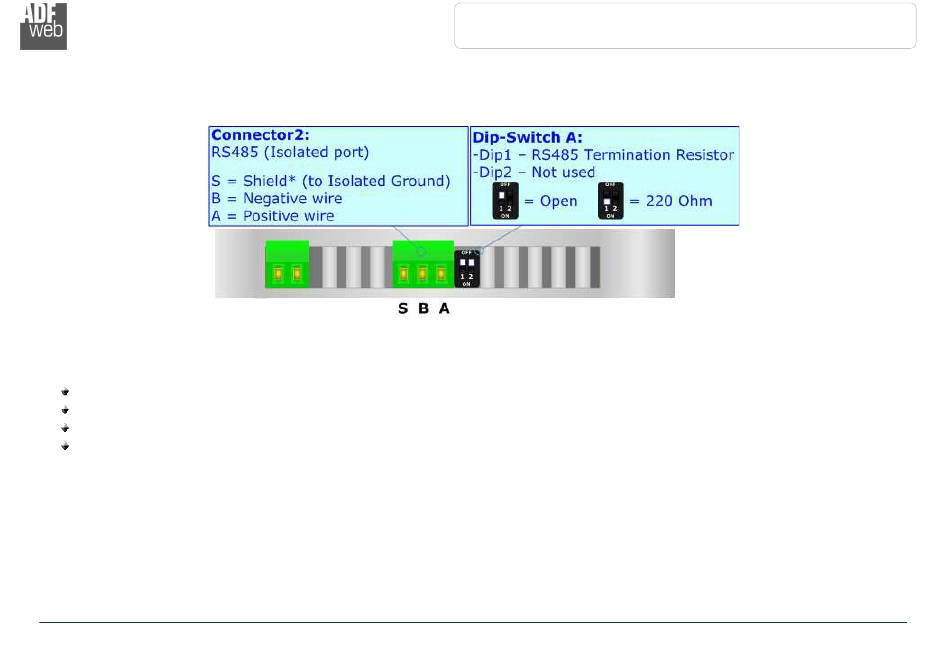

To terminate the RS485 line with a 220Ω resistor it is necessary to put ON dip 1, like in figure.
The maximum length of the cable should be 1200m (4000 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.
ADFweb.com S.r.l.
User Manual BACnet slave / PROFIBUS master - Converter
Document code: MN67675_ENG
Revision 1.010
Page 16 of 40
