SET BACNET ACCESS:

By Pressing the "Set BACnet Access
5). The window is divided in two parts, the
slaves and "BACnet Write" that contains the BACnet objects that the converter writes into the BACnet slaves.

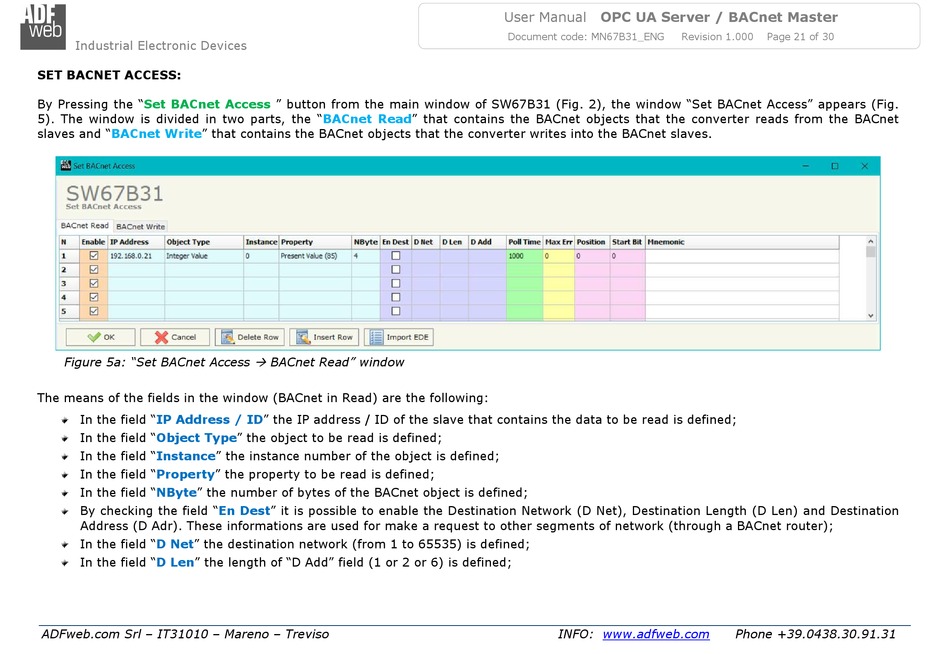

Figure 5a: "Set BACnet Access
The means of the fields in the window (BACnet in Read) are the following:
In the field "IP Address /
In the field "Object Type" the object to be read is defined;
In the field "Instance" the instance number of the object is defined;
In the field "Property" the property to be read is defined;
In the field "NByte" the number of bytes of the BACnet object is defined;
By checking the field "En
Address (D Adr). These informations are used for make a request to other segments of network (through a BACnet router);
In the field "D Net" the destination network (from 1 to 65535) is defined;
In the field "D Len" the length of "D Add" field (1 or 2 or 6) is defined;
