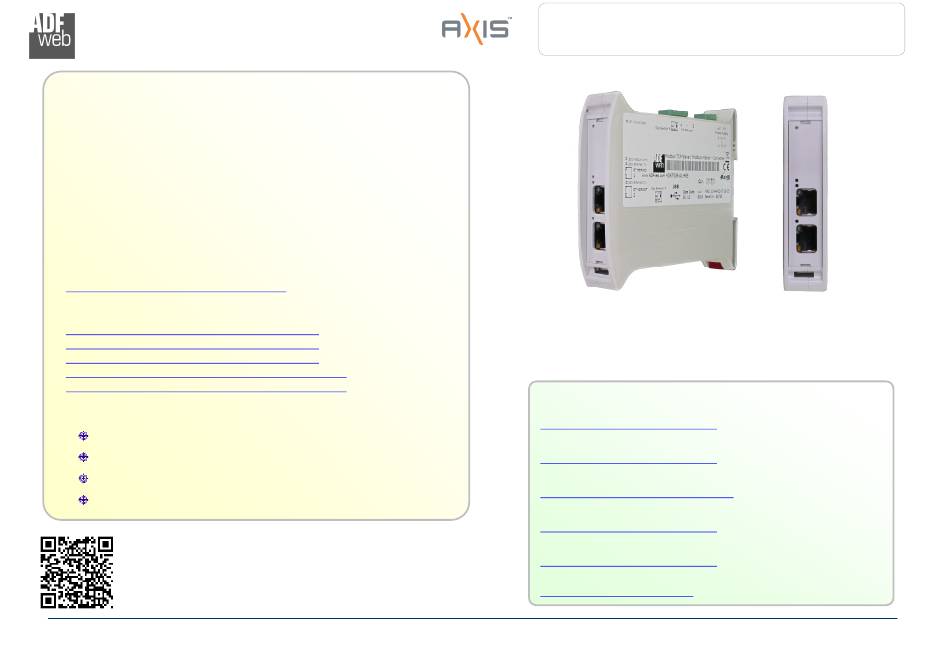

Industrial Electronic Devices

User Manual

Revision 2.012

English

Ethernet / Serial - Converter

( Order Code: HD67648-A1-232 for Serial on RS232)

( Order Code: HD67648-A1-485 for Serial on RS485)

( Order Code: HD67648-A1-422 for Serial on RS422)

( Order Code: HD67648-A1-232-485 for Serial on RS232 - RS485)

( Order Code: HD67648-A1-232-422 for Serial on RS232 - RS422)

For Website information:

www.adfweb.com?Product=HD67648

For Price information:

www.adfweb.com?Price=HD67648-A1-232

www.adfweb.com?Price=HD67648-A1-485

www.adfweb.com?Price=HD67648-A1-422

www.adfweb.com?Price=HD67648-A1-232-485

www.adfweb.com?Price=HD67648-A1-232-422

Benefits and Main Features:

Triple electrical isolation

Protocol independent, suitable for supervision software

Two Ethernet ports

Temperature range: -40°C/+85°C (-40°F/+185°F)

User Manual

ADFweb.com S.r.l.

Axis Solutions Pvt Ltd is the Authorized Distributor of

www.axisindia.in | info@axisindia.in

User Manual Ethernet / Serial

Document code: MN67648_ENG

For others products, see also the following links:

RS232 / RS485 - Converter

www.adfweb.com?Product=HD67118

USB / RS485 - Converter

www.adfweb.com?Product=HD67119

RS485 – Isolator – Repeater – Extender bus line

www.adfweb.com?Product=HD67149-A1

EtherNet/IP / Serial - Converter

www.adfweb.com?Product=HD67590

Do you have your customer protocol? Then go to:

www.adfweb.com?Product=HD67003

Do you need to choose a device? Do you want help?

www.adfweb.com?Cmd=helpme

in India

Revision 2.012

Page 1 of 38

Table of Contents

Need help?

Do you have a question about the Axis HD67648-A1-232 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADF Web Axis HD67648-A1-232

Page 1 User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 1 of 38 Industrial Electronic Devices User Manual Revision 2.012 English Ethernet / Serial - Converter ( Order Code: HD67648-A1-232 for Serial on RS232) ( Order Code: HD67648-A1-485 for Serial on RS485) ( Order Code: HD67648-A1-422 for Serial on RS422) ( Order Code: HD67648-A1-232-485 for Serial on RS232 - RS485) ( Order Code: HD67648-A1-232-422 for Serial on RS232 - RS422)
Page 2: Table Of Contents
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 2 of 38 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that INDEX you need to check that the following document is: UPDATED DOCUMENTATION Updated REVISION LIST...
Page 3: Security Alert
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 3 of 38 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application.
Page 4: Example Of Connection
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 4 of 38 Industrial Electronic Devices EXAMPLES OF CONNECTION: Note: This solution allows also an internet connection of the device; so the PC and one or more HD67648-A1-xxx can be connected together through Internet.
Page 5 User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 5 of 38 Industrial Electronic Devices Note: This solution allows also an internet connection of the device; so the PC and one or more HD67648-A1-xxx can be connected together through Internet. ADFweb.com S.r.l.
Page 6 User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 6 of 38 Industrial Electronic Devices Note: This solution allows also an internet connection of the device; so the PC and one or more HD67648-A1-xxx can be connected together through Internet. ADFweb.com S.r.l.
Page 7: Connection Scheme
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 7 of 38 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67648-A1-232 ADFweb.com S.r.l.
Page 8 User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 8 of 38 Industrial Electronic Devices Figure 1b: Connection scheme for HD67648-A1-485 ADFweb.com S.r.l.
Page 9 User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 9 of 38 Industrial Electronic Devices Figure 1c: Connection scheme for HD67648-A1-422 ADFweb.com S.r.l.
Page 10 User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 10 of 38 Industrial Electronic Devices Figure 1d: Connection scheme for HD67648-A1-232-485 ADFweb.com S.r.l.
Page 11 User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 11 of 38 Industrial Electronic Devices Figure 1e: Connection scheme for HD67648-A1-232-422 ADFweb.com S.r.l.
Page 12: Characteristics
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 12 of 38 Industrial Electronic Devices CHARACTERISTICS: The devices are Ethernet / Serial Converter. They allows the following characteristics: Triple isolation between RS232/RS485/RS422 - Power Supply, RS232/RS485/R422- Ethernet, Power Supply - Ethernet. Two-directional information between RS232/RS485/RS422 bus and Ethernet bus;...
Page 13: Power Supply
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 13 of 38 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC:...
Page 14: Function Modes
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 14 of 38 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch A’: The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip2 of Dip-Switch A’...
Page 15: Leds
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 15 of 38 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode ON: Device powered...
Page 16: Ethernet
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 16 of 38 Industrial Electronic Devices ETHERNET: The Ethernet connection must be made using Connector3 and/or Connector4 of with at least a Category 5E cable. The maximum length of the cable should not exceed 100m.
Page 17: Rs485
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 17 of 38 Industrial Electronic Devices RS485: For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be 1200m (4000 feet). Here some codes of cables: Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;...
Page 18: Use Of Compositor Sw67648
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 18 of 38 Industrial Electronic Devices USE OF COMPOSITOR SW67648: To configure the Converter, use the available software that runs with Windows called SW67648. It is downloadable on the site www.adfweb.com and its operation is described in this document.
Page 19: New Configuration / Open Configuration
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 19 of 38 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “Ethernet / Serial - Converter”...
Page 20: Software Options
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 20 of 38 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
Page 21: Devices Setting
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 21 of 38 Industrial Electronic Devices DEVICES SETTING: By Pressing the “Devices Setting” button from the main window for SW67648 (Fig. 2), the window “Devices Setting” appears (Fig. 3 or 4 or 5 or 6).
Page 22: O P . Modality Remote Com Port
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 22 of 38 Industrial Electronic Devices COM P PERATING ODALITY EMOTE It consists of a configuration in which the device is generally controlled by a PC that is connected using the TCP or UDP protocol.
Page 23 User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 23 of 38 Industrial Electronic Devices If the “Enable Change baudrate on the fly” is checked, it is possible to change the baudrate, parity and data bits of the serial from an Ethernet command (see “CHANGE BAUDRATE ON THE FLY”...
Page 24: O P . Modality Tunnel Point To Point
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 24 of 38 Industrial Electronic Devices PERATING ODALITY UNNEL OINT TO OINT A mode that allows the extension of a serial line using a Ethernet network. The two devices in this mode must be configured in a coherent way in order to allow the Ethernet communication between them.
Page 25 User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 25 of 38 Industrial Electronic Devices The means of the fields for “RS232/RS485/RS422” are: The field “Enable Serial” is used for selecting if the serial is used (field checked) or not (field unchecked). For the codes with only one serial, this field isn’t editable (it is always checked);...
Page 26: O P . Modality Tunnel Point To Multipoint (Broadcast )
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 26 of 38 Industrial Electronic Devices PERATING ODALITY UNNEL OINT TO ULTI OINT WITH ROADCAST This mode allows to extend a serial line based Master-Slave concept, where there are more Slave lines dislocated in different places.
Page 27 User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 27 of 38 Industrial Electronic Devices The means of the fields for “RS232/RS485/RS422” are: The field “Enable Serial” is used for selecting if the serial is used (field checked) or not (field unchecked). For the codes with only one serial, this field isn’t editable (it is always checked);...
Page 28: O P . Modality Tunnel Point To Multipoint (Keep Alive )
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 28 of 38 Industrial Electronic Devices PERATING ODALITY UNNEL OINT TO ULTI OINT WITH LIVE This mode allows to extend a serial line based Master-Slave concept, where there are more Slave lines dislocated in different places.
Page 29 User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 29 of 38 Industrial Electronic Devices In the field “TimeOut Keep Alive (Seconds)” the time that the Master waits for receiving a Keep Alive from a Slave is defined. If at least one Keep Alive message isn’t arrived from a slave in this time, the Master doesn’t send the serial data to that Slave.
Page 30: Update Via Udp
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 30 of 38 Industrial Electronic Devices UPDATE VIA UDP: By pressing the “Update via UDP” button, it is possible to load the created configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. If you don’t know the actual IP address of the device you have to use this procedure: Turn OFF the device;...
Page 31 User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 31 of 38 Industrial Electronic Devices Note: When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67648 device.
Page 32: Change Baud And Parity On The Fly
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 32 of 38 Industrial Electronic Devices CHANGE BAUDRATE AND PARITY ON THE FLY: Enabling the option “Enable change baudrate on the fly” in the modality “Remote COM Port”, it is possible to change the baudrate, parity and data bits of the serial port by sending a UDP frame into the selected “Port”.
Page 33: Active Serial Driver
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 33 of 38 Industrial Electronic Devices ACTIVE SERIAL DRIVER: Before pressing the “Active Serial Driver” button from the “General Parameter” window it is necessary to download the “Serial to Ethernet Connector”...
Page 34 User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 34 of 38 Industrial Electronic Devices Go in the “Connection prefs” Section. Step 1 – Select the RAW protocol; Step 2 – Select the “Send Keep alive” option; Step 3 – Confirm the parameters and create the Virtual COM port.
Page 35: Mechanical Dimensions
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 35 of 38 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 9: Mechanical dimensions scheme for HD67648-A1-232, HD67648-A1-485, HD67648-A1-422, HD67648-A1-232-485, HD67648-A1-232-422 ADFweb.com S.r.l.
Page 36: Ordering Informations
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 36 of 38 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67648 – A 1 – xxx - yyy Second Serial Port: 485: RS485 on Removable 5mm Screw Terminal connector 422: RS422 on Removable 5mm Screw Terminal connector...
Page 37: Disclaimer
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 37 of 38 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
Page 38: Warranties And Technical Support
User Manual Ethernet / Serial Document code: MN67648_ENG Revision 2.012 Page 38 of 38 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
