SET BACNET ACCESS:
By Pressing the "Set BACnet Access" button from the main window for SW67E06 (Fig. 2) the window "BACnet Set Access" appears (Fig. 5).
The window is divided in two parts, the
Write" that contains the BACnet objects writeable by a BACnet Master.
The meaning of the fields in the window are the follows:
In the field "Data Type" is possible to select the BACnet
object data type;
In the field "Eng. Unit", with double click the window
"Select the BACnet Engineering Unit" appears (Fig. 8);
In the field "Position" is possible to select the position
where take/save the data from internal memory array;
The field "Start Bit" is used for the "Binary In" and
"Binary Out" BACnet objects;
The field "Length" is used for all the others BACnet
objects;
In the field "Mnemonic" a description of the object is
defined.
ADFweb.com S.r.l.
"BACnet in Read" that contains the BACnet objects readable by a BACnet Master; and

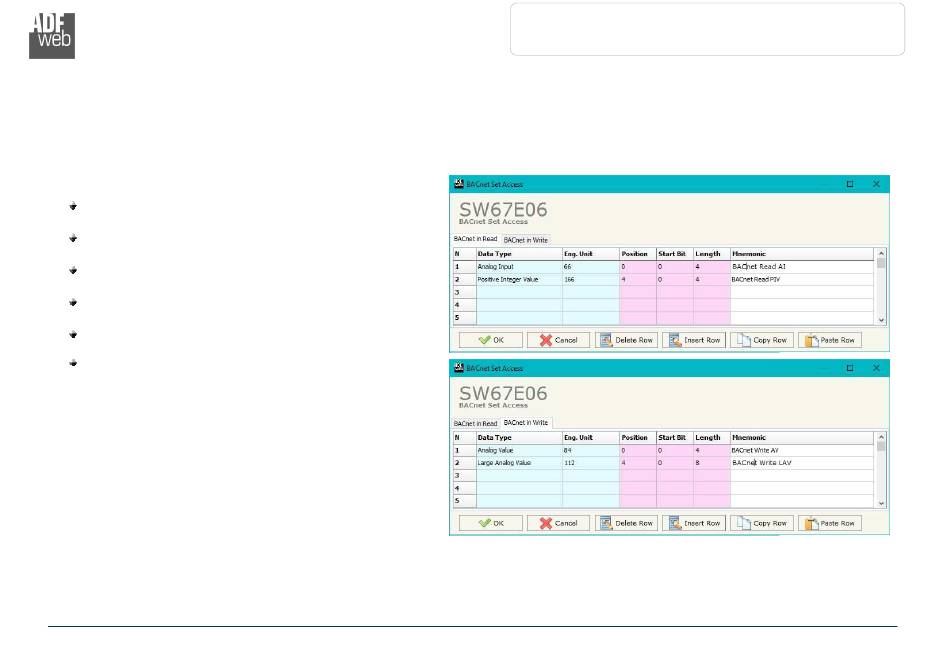

Figure 5: "BACnet Set Access" window
User Manual EtherCAT Slave / BACnet Slave
Document code: MN67E06_ENG Revision 1.000 Page 22 of 30
"BACnet in
