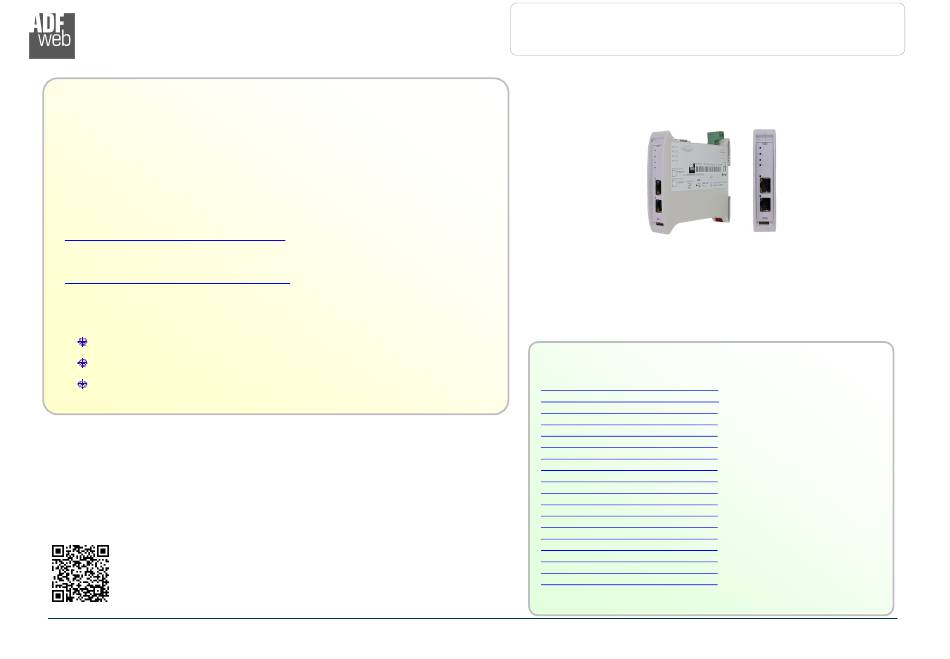

Industrial Electronic Devices
User Manual
Revision 1.000
English
EtherNet/IP Master / CAN - Converter
(Order Code: HD67645-A1 )
For Website information:
www.adfweb.com?Product=HD67645
For Price information:
www.adfweb.com?Price=HD67645-A1
Benefits and Main Features:
Very easy to configure
Triple Electrical isolation
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual EtherNet/IP Master/ CAN
Document code: MN67645_ENG
For other EtherNet/IP Master products see also the following link:
Converter EtherNet/IP Master to
www.adfweb.com?Product=HD67B38
www.adfweb.com?Product=HD67D24
www.adfweb.com?Product=HD67E26
www.adfweb.com?Product=HD67158
www.adfweb.com?Product=HD67643
www.adfweb.com?Product=HD67645
www.adfweb.com?Product=HD67646
www.adfweb.com?Product=HD67647
www.adfweb.com?Product=HD67661
www.adfweb.com?Product=HD67665
www.adfweb.com?Product=HD67667
www.adfweb.com?Product=HD67668
www.adfweb.com?Product=HD67669
www.adfweb.com?Product=HD67689
www.adfweb.com?Product=HD67743
www.adfweb.com?Product=HD67806
www.adfweb.com?Product=HD67955
www.adfweb.com?Product=HD67973
Revision 1.000
Page 1 of 27
(OPC UA Server)
(LoRaWAN)
(EtherCAT)
(SNMP Agent)
(PROFIBUS Slave)
(CAN)
(CANopen)
(DeviceNet Slave)
(PROFINET)
(Modbus TCP Slave)
(Serial)
(Ethernet)
(Modbus Slave)
(BACnet Slave)
(IEC 61850 Server)
(KNX)
(MQTT)
(IO-Link Slave)
Advertisement
Table of Contents
Related Manuals for ADF Web HD67595
Summary of Contents for ADF Web HD67595
- Page 1 User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 1 of 27 Industrial Electronic Devices User Manual Revision 1.000 English EtherNet/IP Master / CAN - Converter (Order Code: HD67645-A1 ) For Website information: www.adfweb.com?Product=HD67645 For Price information: www.adfweb.com?Price=HD67645-A1 Benefits and Main Features: Very easy to configure For other EtherNet/IP Master products see also the following link:...
-
Page 2: Table Of Contents
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 2 of 27 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that INDEX you need to check that the following document is: UPDATED DOCUMENTATION Updated REVISION LIST... -
Page 3: Security Alert
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 3 of 27 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 4 of 27 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com S.r.l. -
Page 5: Connection Scheme
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 5 of 27 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67645-A1 ADFweb.com S.r.l. -
Page 6: Characteristics
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 6 of 27 Industrial Electronic Devices CHARACTERISTICS: The HD67645-A1 are EtherNet/IP / CAN - Converters. It allows for the following characteristics: Isolation between EtherNet/IP – CAN – Power Supply; Two-directional information between EtherNet/IP bus and CAN bus;... -
Page 7: Power Supply
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 7 of 27 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC:... -
Page 8: Function Modes
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 8 of 27 Industrial Electronic Devices FUNCTION MODES: The device has got two function modes depending on the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... -
Page 9: Leds
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 9 of 27 Industrial Electronic Devices LEDS: The device has got seven LEDs that are used to give information about the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode ON: Device powered... -
Page 10: Can
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 10 of 27 Industrial Electronic Devices CAN: For terminating the CAN line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch C’ is at ON position. Cable characteristics: DC parameter: Impedance... -
Page 11: Ethernet
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 11 of 27 Industrial Electronic Devices ETHERNET: The updating of the converter must be made using Connector3 and Connector4 of the HD67645-A1 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. -
Page 12: Use Of Compositor Sw67645
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 12 of 27 Industrial Electronic Devices USE OF COMPOSITOR SW67645: To configure the Converter, use the available software that runs with Windows called SW67645. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 13: New Configuration / Open Configuration
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 13 of 27 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “EtherNet/IP Master / CAN - Converter”... -
Page 14: Software Options
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 14 of 27 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 15 User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 15 of 27 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software. ADFweb.com S.r.l.
-
Page 16: Set Communication
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 16 of 27 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, EtherNet/IP and CAN. By Pressing the “Set Communication” button from the main window for SW67645 (Fig. -
Page 17: Ethernet/Ip Access
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 17 of 27 Industrial Electronic Devices ETHERNET/IP ACCESS: By Pressing the “EtherNet/IP Access” button from the main window for SW67645 (Fig. 2) the window “Set EtherNet/IP Master Access” appears (Fig. 4). This section is used to define the list of the EtherNet/IP Slaves to read/write with the CAN. -
Page 18: Receive Frames
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 18 of 27 Industrial Electronic Devices RECEIVE FRAMES: By pressing the “Receive Frames” button from the main window for SW67645 (Fig. 2) the “Receive CAN Frames” window appears (Fig. 5). The COB inserted in this table contains the data to write on EtherNet/IP side. - Page 19 User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 19 of 27 Industrial Electronic Devices In the field “Byte6” insert the byte of the EtherNet/IP array where saving 6th byte of the CAN message; In the field “Byte7” insert the byte of the EtherNet/IP array where saving 7th byte of the CAN message; In the field “Byte8”...
-
Page 20: Send Frames
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 20 of 27 Industrial Electronic Devices SEND FRAMES: By pressing the “Send Frames” button from the main window for SW67645 (Fig. 2) the “Send CAN frames” window appears (Fig. 6). The COB inserted in this table contains the data received from EtherNet/IP side. - Page 21 User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 21 of 27 Industrial Electronic Devices In the field “Byte5” insert the byte of the EtherNet/IP array where taking 5th byte of the CAN message; In the field “Byte6” insert the byte of the EtherNet/IP array where taking 6th byte of the CAN message; In the field “Byte7”...
-
Page 22: Update Device
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 22 of 27 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 23 User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 23 of 27 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67645 device. Warning: If Fig. 8 appears when you try to do the Update try these points before seeking assistance: Try to repeat the operations for the updating;...
-
Page 24: Mechanical Dimensions
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 24 of 27 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 9: Mechanical dimensions scheme for HD67645-A1 ADFweb.com S.r.l. -
Page 25: Ordering Informations
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 25 of 27 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67645 – A 1 Connectors Type 1: Removable 5mm Screw Terminal Enclosure Type A: 1M, 35mm DIN Rail mounting Device Family... -
Page 26: Disclaimer
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 26 of 27 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 27: Warranties And Technical Support
User Manual EtherNet/IP Master/ CAN Document code: MN67645_ENG Revision 1.000 Page 27 of 27 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
