LEDS (for HD67675-MSTP-A1 and HD67675-PTP-A1):

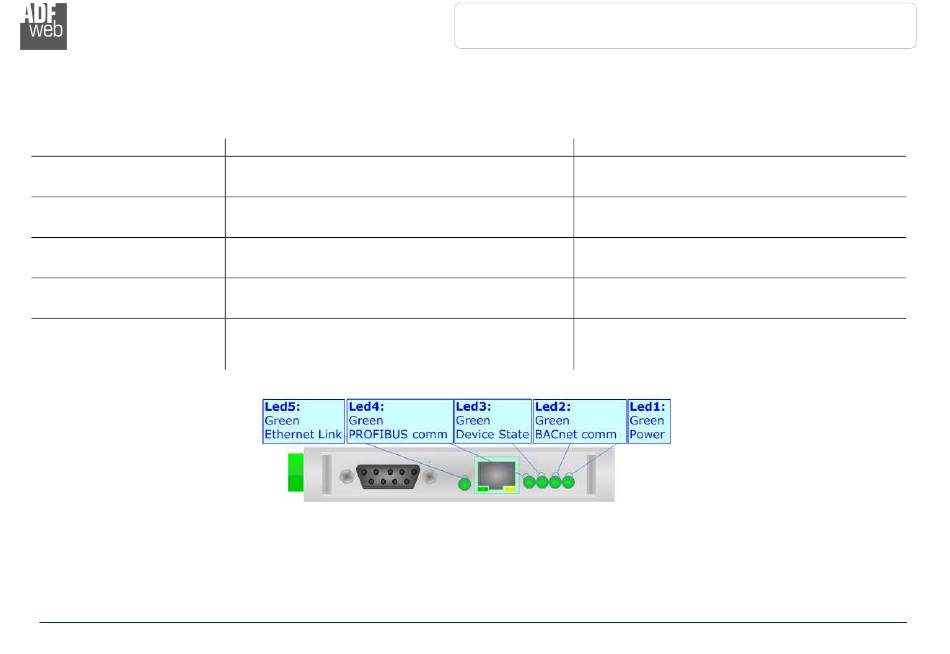

The device has got five LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Power [supply voltage]
(green)
2: BACnet comm (green)
3: Device state (green)
4: PROFIBUS comm (green)
5: Ethernet Link (green)
ADFweb.com S.r.l.
Normal Mode
ON: Device powered
OFF: Device not powered
Blinks quickly when receive BACnet requests
Blinks slowly (~1Hz)
Blinks quickly when is communicating with at least one
PROFIBUS slave device
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
User Manual BACnet slave / PROFIBUS master - Converter
Document code: MN67675_ENG
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
