SET BACNET ACCESS:

By Pressing the "Set BACnet Access" button from the main window for SW67901 (Fig. 2) the window "BACnet Set Access" appears (Fig. 5).
The window is divided in two parts, the
and "BACnet in Write" that contains the BACnet objects writeable by a BACnet Master (HART data written).
The meaning of the fields in the window are the follows:
In the field "Data Type" is possible to select the
BACnet object data type;
In the field "Eng. Unit", with double click the
window "Select the
appears (Fig. 6);
In the field "Position" is possible to select the
position where take/save the data from internal
memory array;
The field "Start Bit" is used for the "Binary In" and
"Binary Out" BACnet objects;
The field "Length" is used for all the others BACnet
objects;
In the field "Mnemonic" a description of the object
is defined.
ADFweb.com S.r.l.
"BACnet in Read" that contains the BACnet objects readable by a BACnet Master (HART data read);
BACnet Engineering Unit"
User Manual BACnet Slave / HART Master
Document code: MN67901_ENG

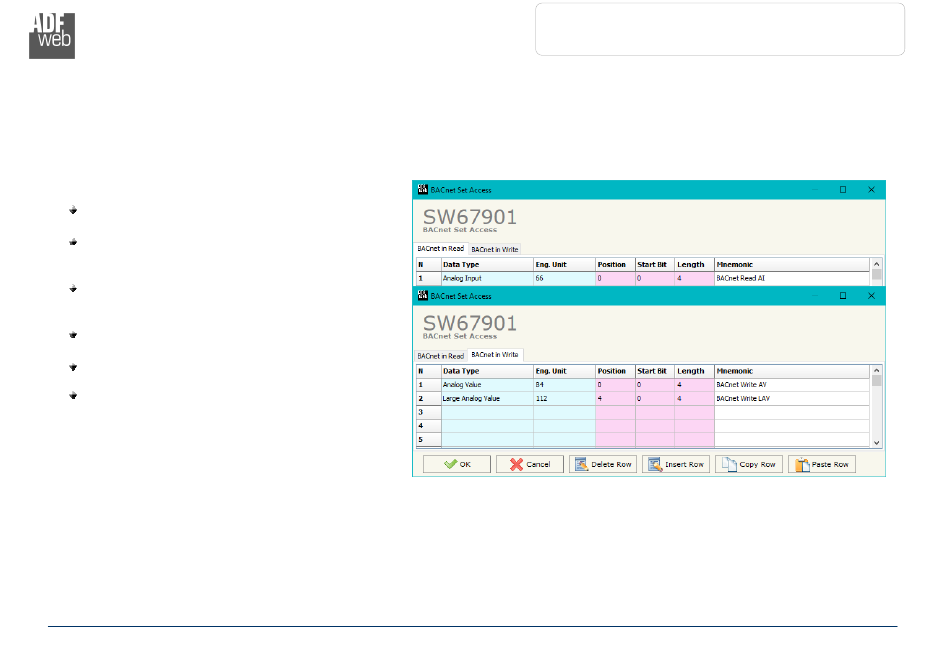

Figure 5: "BACnet Set Access" window
