SET COMMUNICATION:

This section defines the fundamental communication parameter of two buses, PROFIBUS and BACnet.
By pressing the "Set Communication" button from the main window of SW67675 (Fig. 2) the
window "Set Communication" appears (Fig. 3).
In the section "BACnet Type" is possible to select the type of BACnet to use from:
BACnet/IP (use ethernet);
BACnet MS/TP (use RS485);
BACnet PTP (use RS232).
The means of the fields for "PROFIBUS" are:
In the field "ID Dev." the address of the PROFIBUS side is defined;
In the field "Baud rate" the baud rate for the PROFIBUS side is defined.
If selected "BACnet/IP" the means of the fields for "BACnet" are:
In the fields "IP ADDRESS" insert the IP address that you want to give to the Converter;
In the fields "SUBNET
In the fields "GATEWAY" insert the default gateway that you want to use. This feature can
be enabled or disabled pressing the Check Box field. This feature is used for going out of the
net;
In the field "Port" the port number used for BACnet communication is defined. The default
port used for BACnet communication is 47808, but is possible to insert any value (except
10000 and 10001);
In the field "BACnet Device
In the field "Device Identifier" is possible to assign a number to the BACnet node (Used for
the Device Identifier).
ADFweb.com S.r.l.
Mask" insert the SubNet Mask;
Name" is possible to assign a name to the BACnet node;
User Manual BACnet slave / PROFIBUS master - Converter
Document code: MN67675_ENG Revision 1.010 Page 20 of 40

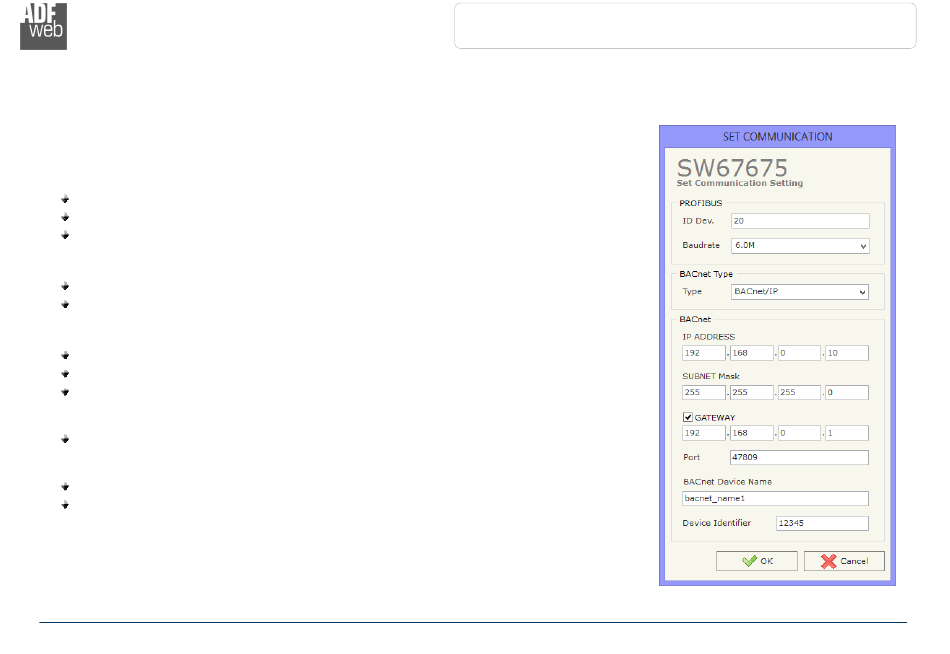

Figure 3: "Set Communication"
window
Figure 3: "Set Communication" window
