SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, Modbus and PROFINET.
By Pressing the "Set Communication" button from the main window of SW674-A007 (Fig. 2) the
window "Set Communication" appears (Fig. 3).
The meaning of the fields of "PROFINET" are:
In the field "IP ADDRESS" the IP address of the PROFINET side of the converter is defined;
In the field "SUBNET
defined;
In the field "GATEWAY" the default gateway of the network is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field "Port" the port used for PROFINET communication is defined (fixed to '34964');
In the field "PROFINET Name of
defined;
In the field "PROFINET ->
is defined (at maximum it is possible to use 1439 byte);
In the field "PROFINET <-
is defined (at maximum it is possible to use 1439 byte).
The means of the fields for the "Modbus Master" section are:
In the field "Serial" the serial port to use is defined (RS232 or RS485);
In the field "Baudrate" the baudrate for the serial line is defined;
In the field "Parity" the parity of the serial line is defined;
In the field "Device ID" the ID of Modbus side is defined;
If the field "Read with Input Register / Status
the Input bytes of PROFINET side with Input Registers (Function 04) and write the Output bytes
of PROFINET side with Holding Registers (Function 06/16). The Output bytes are readable with
Function 03. Otherwise, only Holding Registers will be used and the Output bytes of PROFINET
side cannot be read back.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Mask" the SubNet Mask of the PROFINET side of the converter is
Station" the name to the PROFINET side of the converter is
Gateway" the number of byte from the PROFINET to the converter
Gateway" the number of byte from the converter to the PROFINET
Function" is checked, it is possible to read
User Manual PROFINET / Modbus Slave
Document code: MN674-A007_ENG
Page 18 of 34

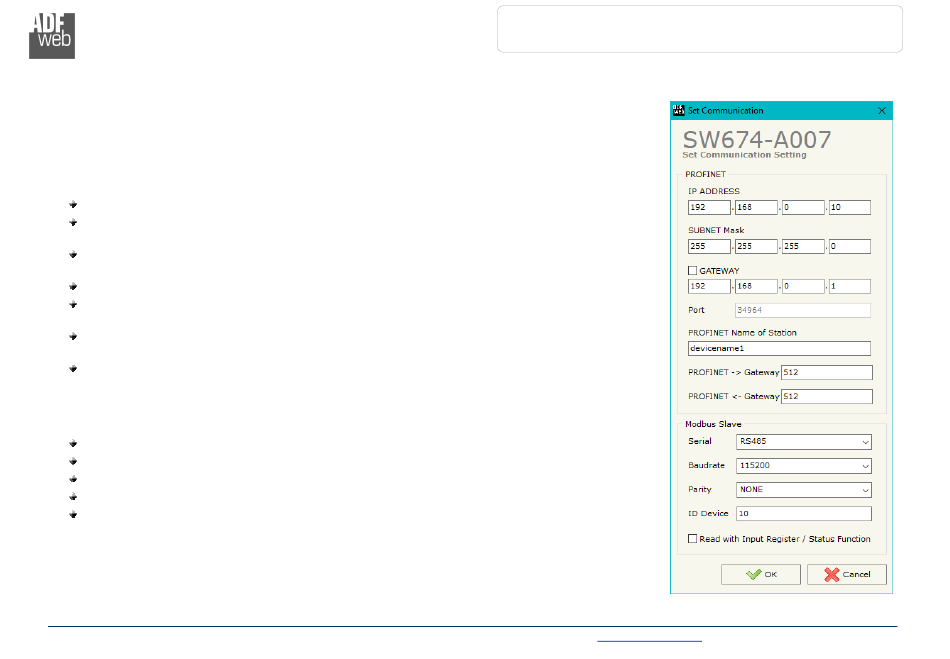

Figure 3: "Set Communication" window
