SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, BACnet and CAN.
By Pressing the "Set Communication" button from the main window for SW67717 (Fig. 2) the
window "Set Communication" appears (Fig. 3).
The window is divided in three sections, one for selecting the type of BACnet (in relation to the device
used), one for the BACnet parameters and the other for the CAN parameters.
In the section "BACnet Type" is possible to select the type of BACnet to use from:
BACnet/IP (uses Ethernet);
BACnet MS/TP (uses RS485).
The means of the fields for "BACnet" are:
In the field "IP ADDRESS" the IP address of BACnet/IP side of the converter is defined;
In the field "SUBNET Mask" the SubNet Mask of the converter is defined;
In the field "GATEWAY" the default gateway of the net is defined. This feature can be enabled
or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field "Port" the port used for BACnet communication is defined;
In the field "BACnet Device
In the field "Device Instance" the identifier of the BACnet side of the converter is defined.
The means of the fields for the "CAN" section are:
In the field "Baudrate" the data rate of the CAN line is defined.
ADFweb.com S.r.l.
Name" the name of the BACnet side of the converter is defined;
User Manual BACnet Master / CAN
Document code: MN67717_ENG Revision 1.001

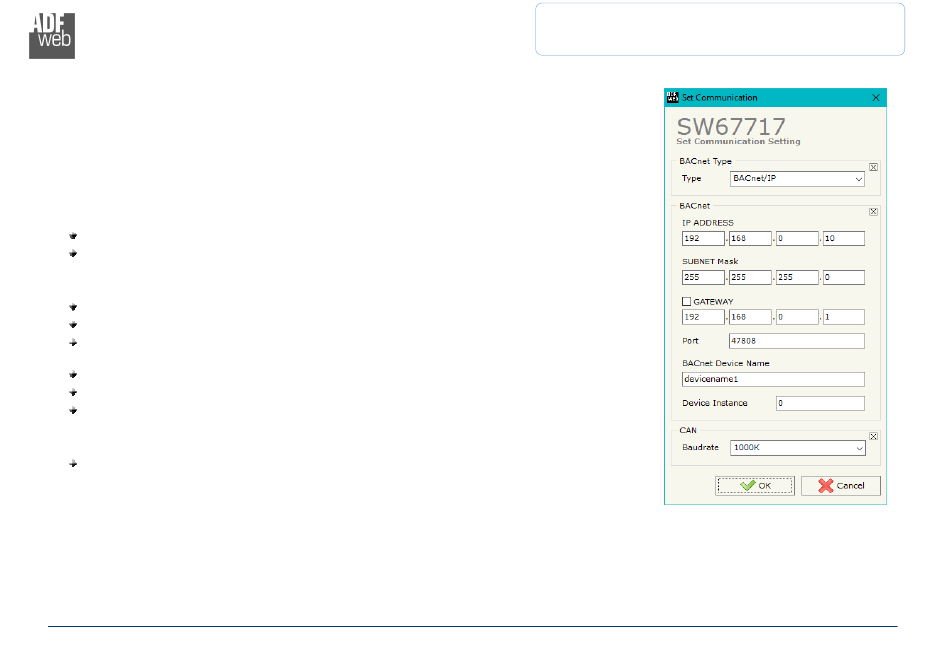

Figure 3: "Set Communication" window
