SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, KNX and Modbus.
By Pressing the "Set Communication" button from the main window for SW67813 (Fig. 2) the
window "Set Communication" appears (Fig. 3).
The window is divided in three sections, one for the KNX, one for the Modbus and the other for
Ethernet.
The means of the fields for "KNX" are:
In the field "Type" the type of KNX is defined (fixed to 'KNX TP');
In the field "ID Device" the ID of the KNX side of the converter is defined.
The means of the fields for the "Modbus Slave" section are:
In the field "Serial" the serial to use is defined (RS232 or RS485);
In the field "Baudrate" the baudrate for the serial line is defined;
In the field "Parity" the parity of the serial line is defined;
In the field "Stop Bits" the number of Stop Bits of the serial line is defined;
In the field "ID Device" the address of the Modbus side is defined.
The means of the fields for "Ethernet" are:
In the fields "IP ADDRESS" insert the IP address that you want to give to the Converter;
In the fields "SUBNET
In the fields "GATEWAY" insert the default gateway that you want to use. This feature can
be enabled or disabled pressing the Check Box field. This feature is used for going out of the
net.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Mask" insert the SubNet Mask;
User Manual Modbus Slave / KNX
Document code: MN67813_ENG

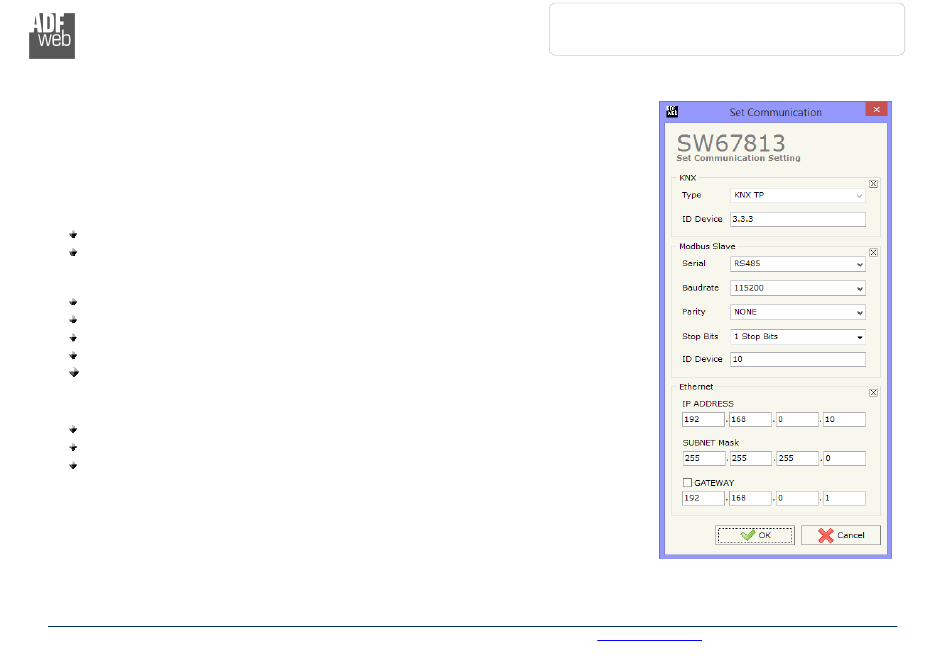

Figure 3: "Set Communication" window
