Industrial Electronic Devices
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, IO-
Link and DeviceNet.
By Pressing the
"Set
Communication" button from the main window for SW67969
(Fig. 2) the window "Set Communication" appears (Fig. 3).
The means of the fields for "Ethernet Connection" are:
In the field
"Device Name
converter is defined;
If the field
"Obtain an IP Address Automatically (DHCP for Cable
Connection)" is checked, DHCP for LAN connection is enabled;
If the field
"Enable
DNS" is checked, DNS protocol is enabled;
In the field
"Primary
defined;
In the field
"Secondary
defined.
The means of the fields for "IO-Link Slave" are:
In the field "Baudrate" the standard baudrate used by the IO-Link interface
is defined.
The means of the fields for "DeviceNet Master" are:
In the field
"ID
Device" the ID for DeviceNet side is defined;
In the field "Baudrate" the data rate for DeviceNet is defined;
The means of the fields for the "Ethernet" section are:
In the field
"Ip
Address" the IP address of the converter is defined;
In the field
"SubNet
Mask" the Subnet Mask of the converter is defined;
In the field "Gateway" the default gateway of the net is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
ADFweb.com S.r.l.
(Hostname)" the Hostname to assign to the
DNS" the IP Address of the primary DNS server is
DNS" the IP Address of the secondary DNS server is
User Manual IO-Link Slave / DeviceNet Master
Document code: MN67969_ENG
Revision 1.000

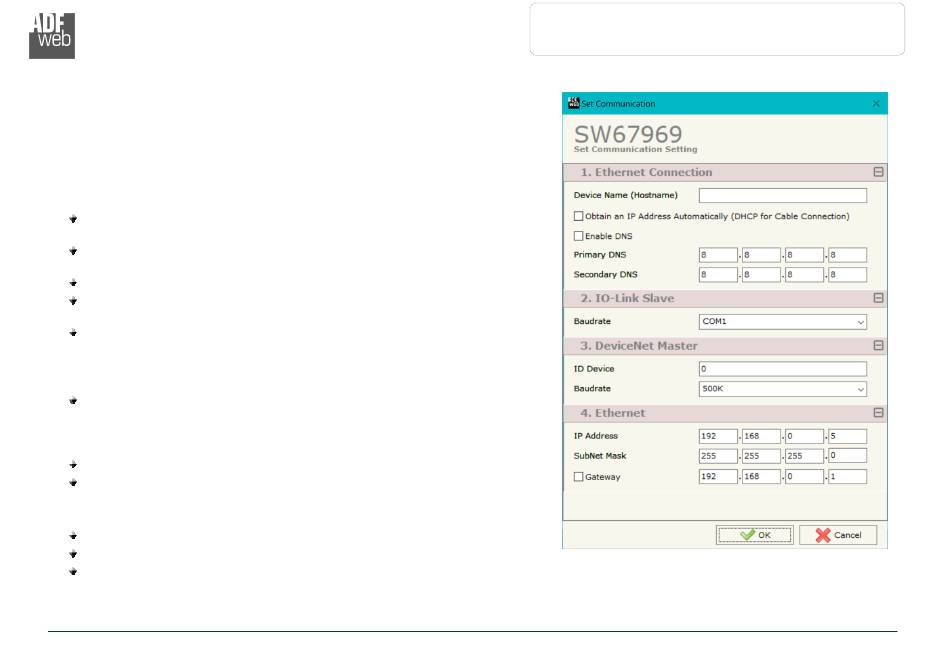

Figure 3: "Set Communication" window
Page 18 of 29
