PROFIBUS:

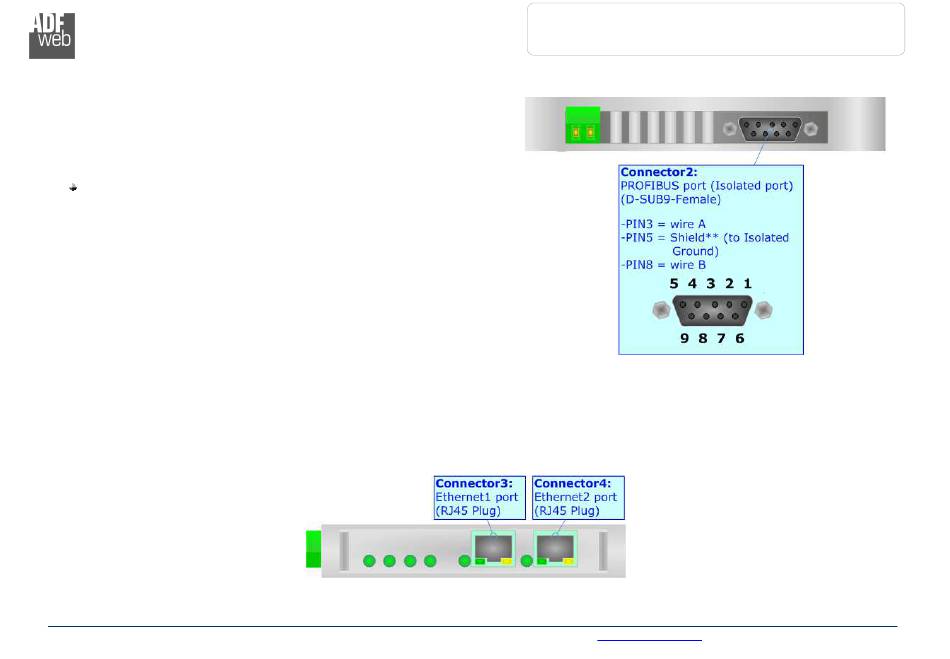

The PROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined
like in the right figure.
Here some codes of cables:
Belden: p/n 183079A - Continuous Armor DataBus® ISA/SP-50
PROFIBUS Cable.
ETHERNET:
The SNMP communication and the firmware/configuration updating must be made using Connector3 or Connector4 of HD67177-A1 with at
least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative
to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the
device to a PC/other is recommended the use of a cross cable.
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual PROFIBUS Slave / SNMP Manager
Document code: MN67177_ENG
Revision 1.000
