PROFIBUS:

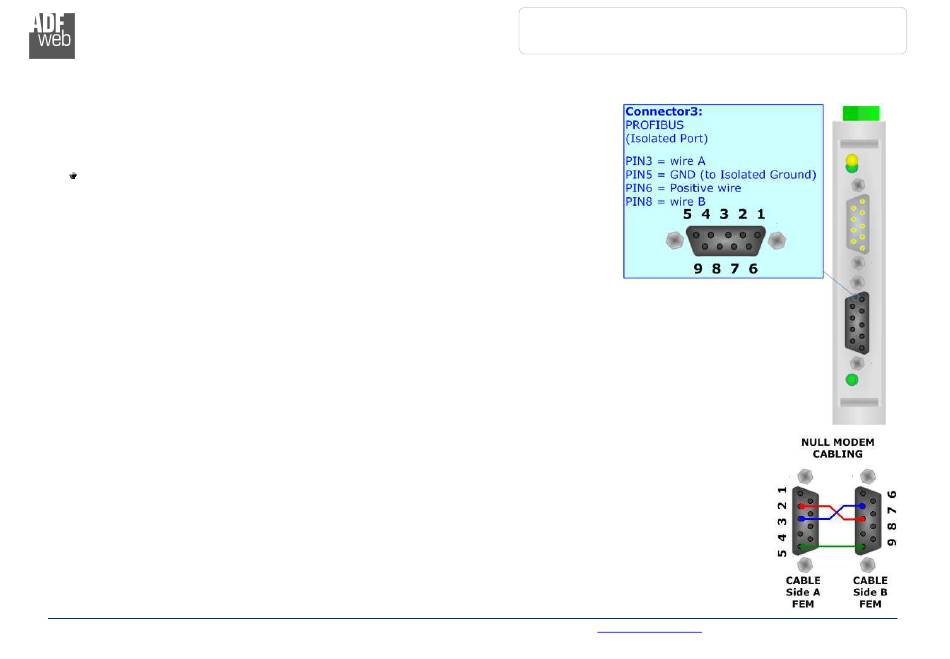

The PROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined like in the right
figure.
Here some codes of cables:
Belden: p/n 183079A - Continuous Armor DataBus® ISA/SP-50 PROFIBUS Cable;
RS232:
The connection from RS232 socket to a serial port (example one from a personal computer), must be made with a Null
Modem cable (a serial cable where the pins 2 and 3 are crossed). It is recommended that the RS232C Cable not exceed
15 meters.
The serial port is used for programming the device.
