User Manual DeviceNet Slave / PROFIBUS Slave
Document code: MN67574_ENG
Revision 1.001
Page 10 of 18
Industrial Electronic Devices
PROFIBUS:

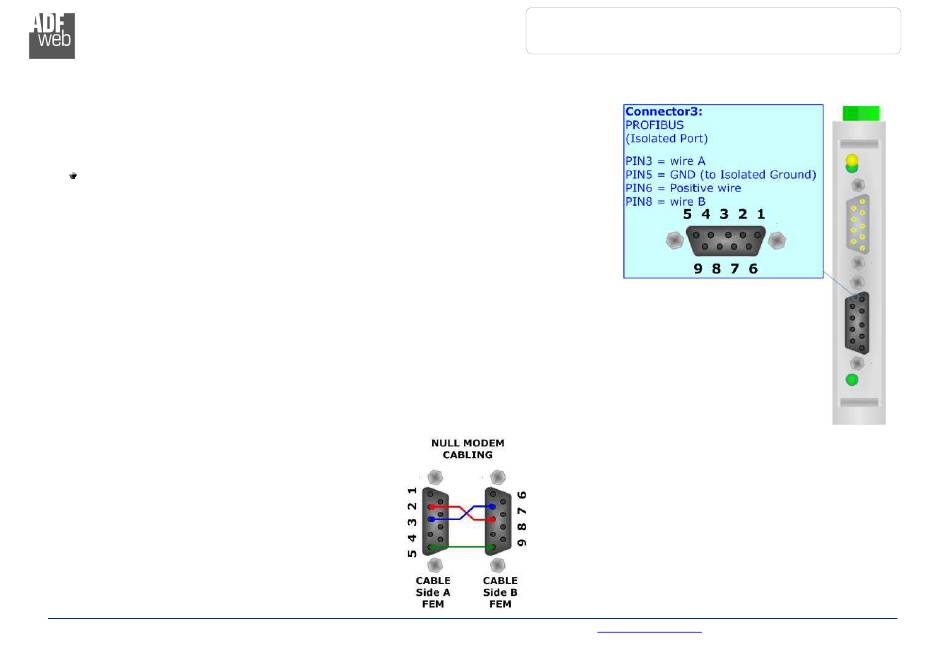

The PROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined like in the right
figure.
Here some codes of cables:
Belden: p/n 183079A - Continuous Armor DataBus® ISA/SP-50 PROFIBUS Cable;
RS232:
The connection from RS232 socket to a serial port (example one from a personal computer),
must be made with a Null Modem cable (a serial cable where the pins 2 and 3 are crossed). It
is recommended that the RS232C Cable not exceed 15 meters.
The serial port is used for programming the device.
ADFweb.com Srl – IT31010 – Mareno – Treviso
INFO:
www.adfweb.com
Phone +39.0438.30.91.31
