3. Mechanical Installation

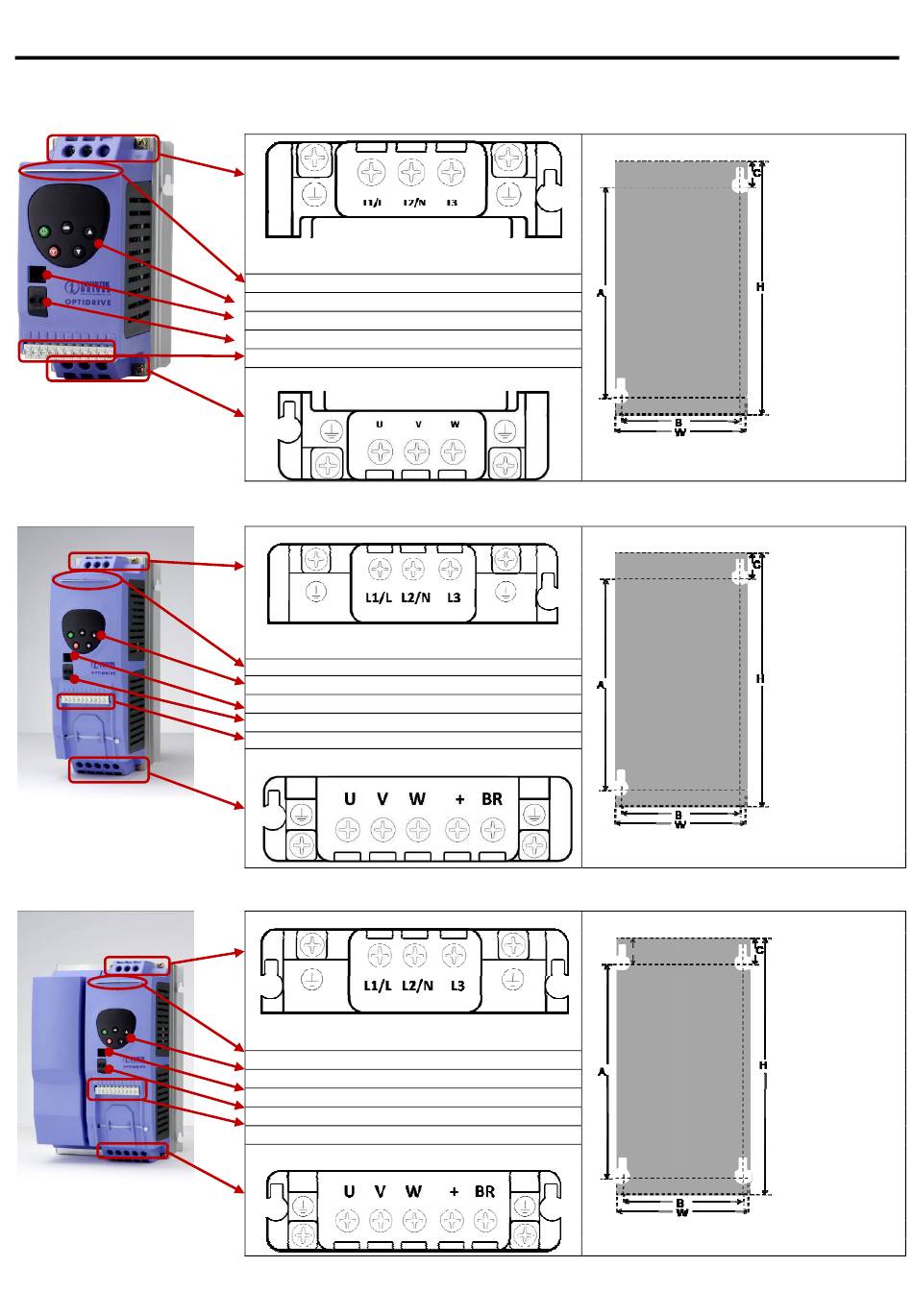

3.1. Mechanical dimensions and mounting
3.1.1. Frame Size 1
3.1.2. Frame Size 2
3.1.3. Frame Size 3
6
www.invertek.co.uk
Incoming Power Terminals
Help Card
Keypad & Display – See Section 4.8 on page 11
RJ11 Connector – See Section 10.3 on page 31
Infra Red Interface
Control Terminals – See Section 4.7 on page 11
Motor Connection Terminals
Incoming Power Terminals
Help Card
Keypad & Display – See Section 4.8 on page 11
RJ11 Connector – See Section 10.3 on page 31
Infra Red Interface
Control Terminals – See Section 4.7 on page 11
Motor & Brake Resistor Connection Terminals
Incoming Power Terminals
Help Card
Keypad & Display – See Section 4.8 on page 11
RJ11 Connector – See Section 10.3 on page 31
Infra Red Interface
Control Terminals – See Section 4.7 on page 11
Motor & Brake Resistor Connection Terminals
Overall Dimensions
Fixings : 2 x M4 Keyhole slots
Power Terminals Torque Setting : 1Nm
Overall Dimensions
Fixings : 2 x M4 Keyhole slots
Power Terminals Torque Setting : 1Nm
Overall Dimensions
Fixings : 4 x M4 Keyhole slots
Power Terminals Torque Setting : 1Nm
GV
Optidrive Plus 3 User Guide
Height 155mm
Width 80mm
Depth 130mm
A 105mm
B 72mm
C 25mm
Footprint View
Weight : 1.1Kg
Height 260mm
Width 100mm
Depth 175mm
A 210mm
B 92mm
C 25mm
Footprint View
Weight : 2.6Kg
Height 260mm
Width 171mm
Depth 175mm
A 210mm
B 163mm
C 25mm
Footprint View
Weight : 5.3Kg
