3. Mechanical Installation

3.1. General

Store the Optidrive in its box until required. Storage should be clean and dry and within the temperature range –40°C to +60°C
•
The Optidrive must be installed in a pollution degree 1 or 2 environment
•

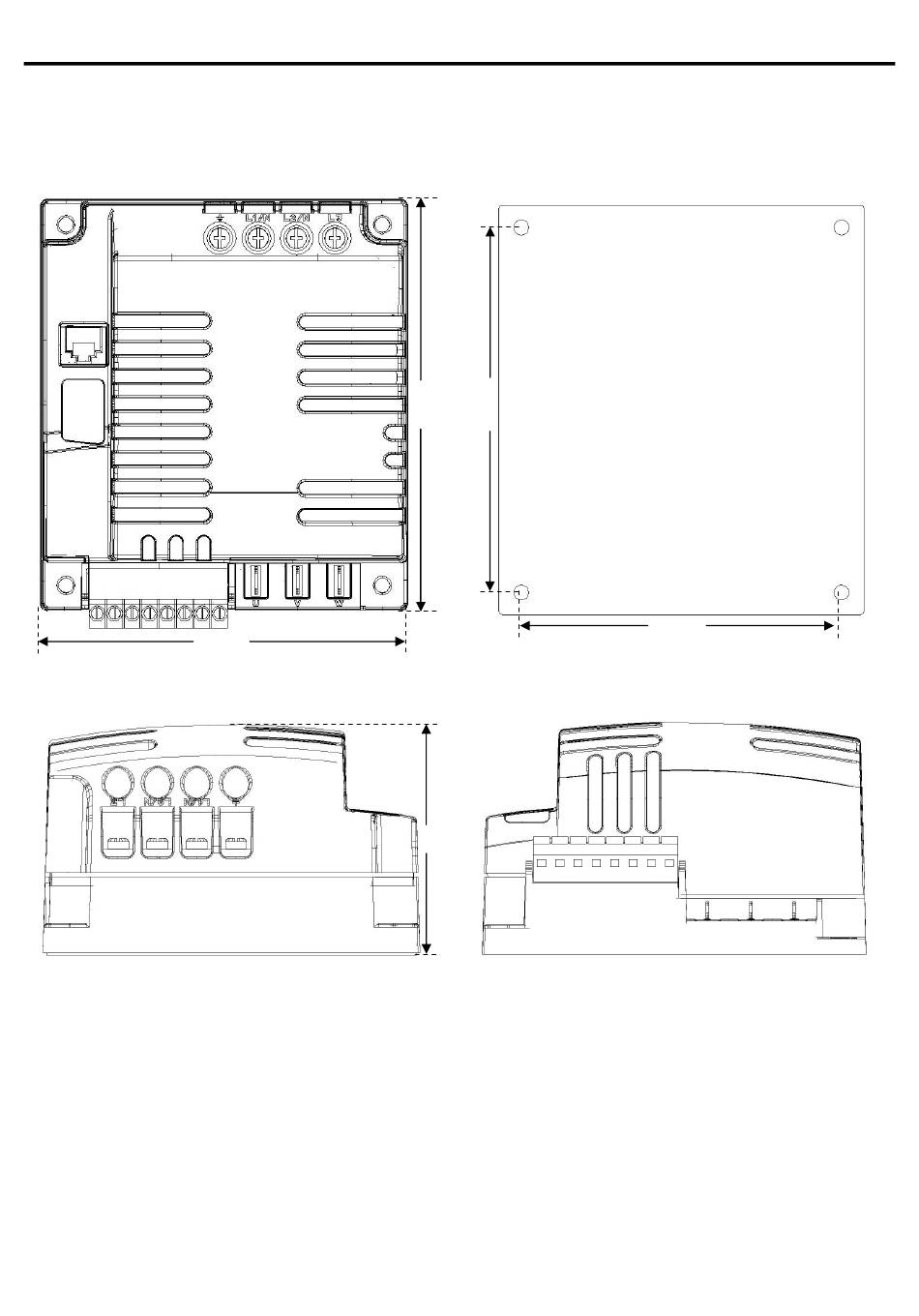

3.2. Mechanical dimensions and mounting

106mm
Power Connection End View

3.3. Enclosure mounting

The Optidrive Plus 3GV Compact is supplied in an IP20 enclosure, designed to be mounted by the user on a thermally conductive material
•
to dissipate the heat generated by the drive. Typically, this can be a motor or steel control panel.
The temperature of the heatsink and drive module must be maintained in the range -10 to + 65°C
•
The ambient temperature around the drive must not exceed 60°C
•
Typically power losses are approximately 3% of motor absorbed power
•
If the external environment contains contamination particles (e.g. dust), the unit should be suitably protected to ensure no damage can
•
occur.
High moisture, salt or chemical content environments should use a suitably sealed (non-vented) enclosure.
•
6
Optidrive Plus 3
Top View
www.invertek.co.uk
GV
Compact - User Guide
120mm
104.5mm
Four Total, located at each corner, 4.3mm Diameter suitable for
M4 screws, 2.5Nm Max.
Motor & Control Terminals End View
66mm
Base View
91.5mm
Mounting Location Holes
