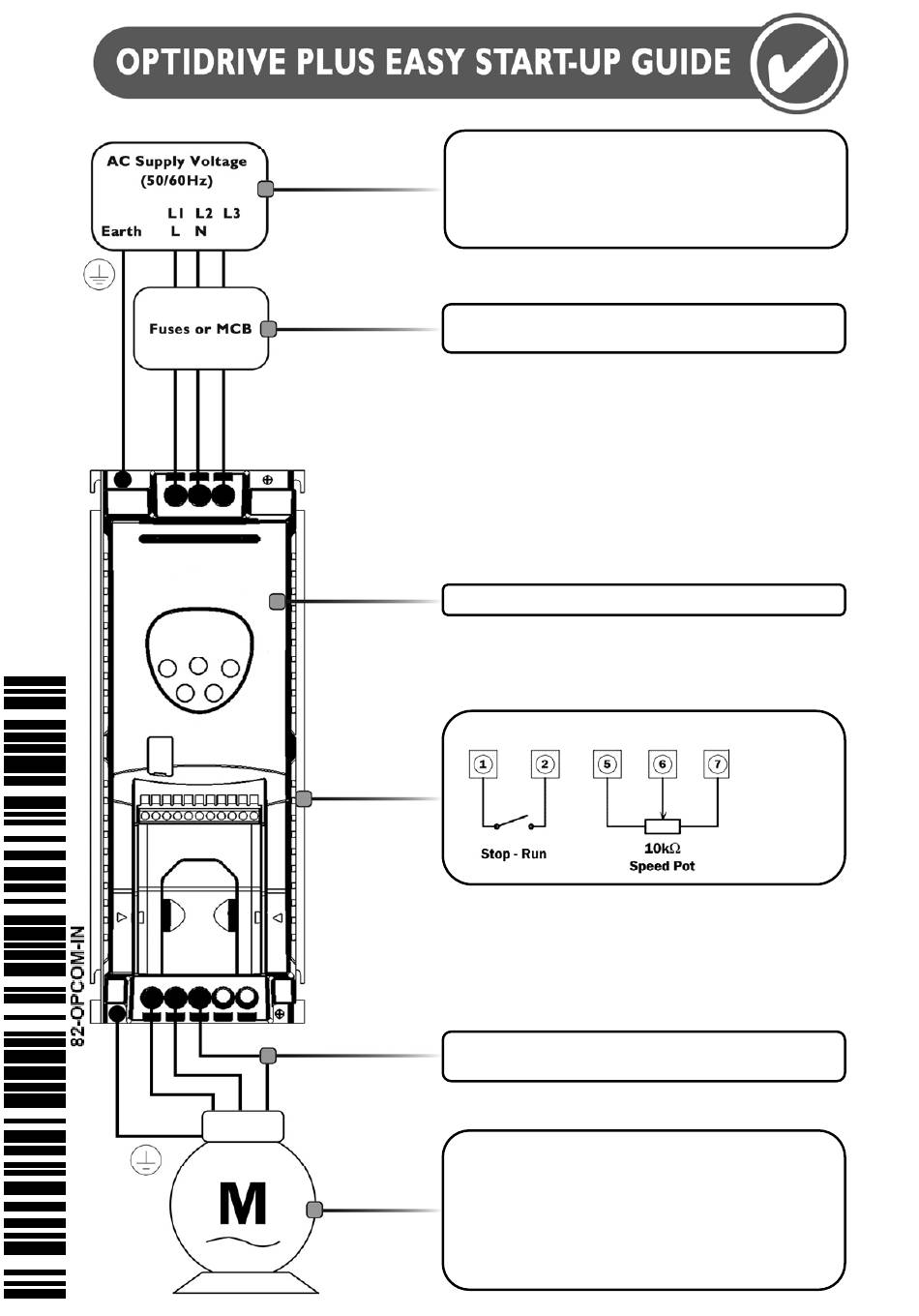

Supply Voltage
‐ 200 – 240 Volt + / ‐ 10%, 1 or 3 Phase
‐ 380 – 480 Volts + / ‐ 10%, 1 or 3 Phase
‐ 480 – 525 Volts + / ‐ 10%, 3 Phase
‐ 500 – 600 Volts + / ‐ 10%
See Page 5
Fuses or MCB & Cable Sizes
‐ Check drive rating information on page 27
Keypad operation – see page 14
Control Terminal Wiring – based on default settings :‐
Motor Cable Sizes
‐ Check drive rating information on page 27
Motor Connections
‐ Check for Star or Delta (see page 10)
Motor Nameplate Details
‐ Enter the motor rated voltage(V) in P1‐07
‐ Enter the motor rated current (A) in P1‐08
‐ Enter the motor rated frequency (Hz) in P1‐09
