3. Mechanical Installation
3.1. General
T he Optidrive should be mounted in a vertical position only, on a flat, flame resistant, vibration free mounting using the integral
mounting holes.
D o not mount flammable material close to the Optidrive.
E nsure that the minimum cooling air gaps, as detailed in section 3.4. Guidelines for mounting (IP66 Units).
E nsure that the ambient temperature range does not exceed the permissible limits for the Optidrive given in section 10. 1 .
Environmental.
3.2. UL Compliant Installation
Refer to section 10.4. Additional Information for UL Compliance on page 48 for Additional Information for UL Compliance.

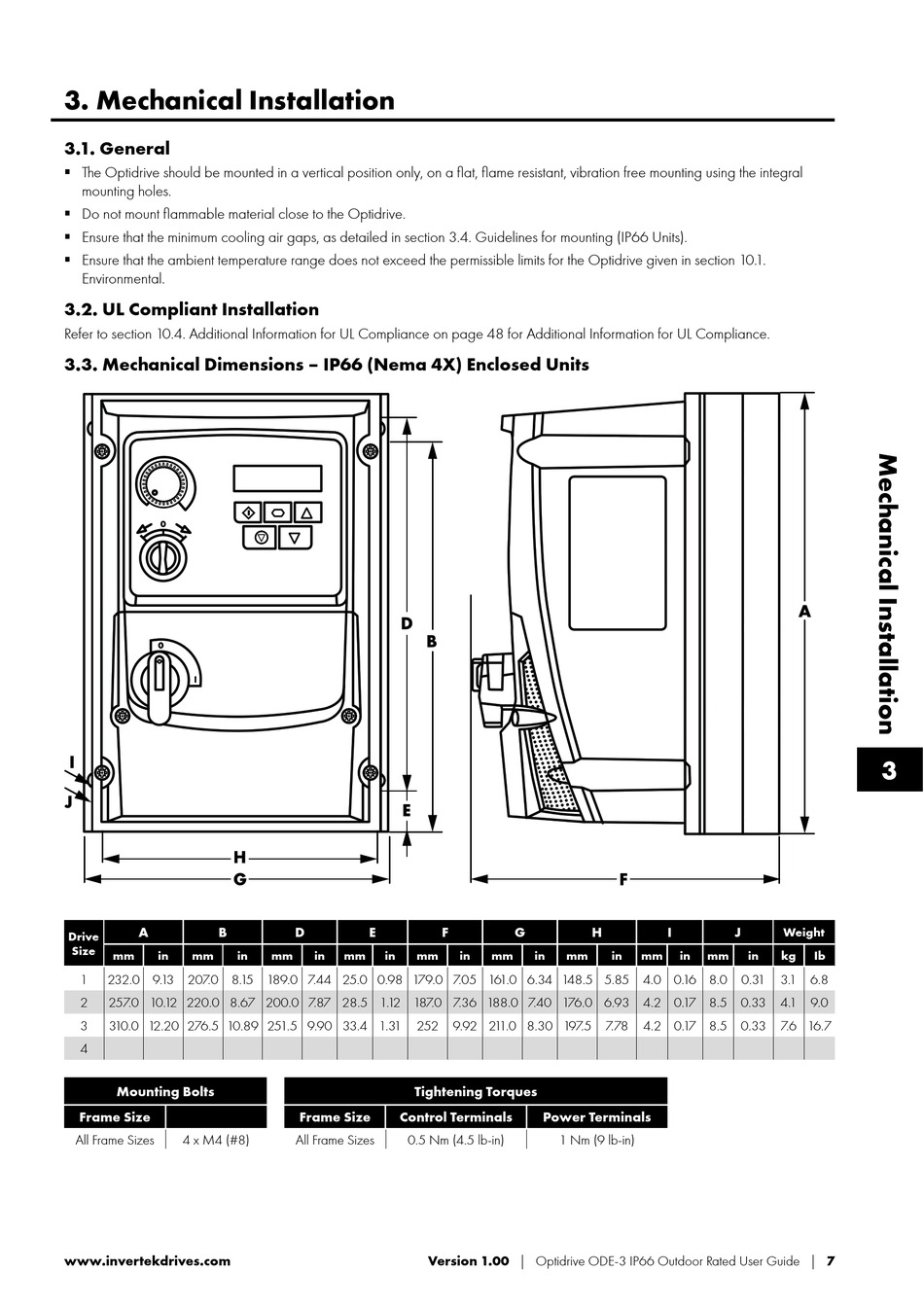

3.3. Mechanical Dimensions – IP66 (Nema 4X) Enclosed Units
A
B
Drive
Size
mm
in
mm
in
1
232.0 9. 1 3 207.0 8. 1 5 189.0 7.44 25.0 0.98 179.0 7.05 161.0 6.34 148.5 5.85 4.0 0. 1 6 8.0 0.31
2
257.0 10. 1 2 220.0 8.67 200.0 7.87 28.5 1. 1 2 187.0 7.36 188.0 7.40 176.0 6.93 4.2 0. 1 7 8.5 0.33 4. 1 9.0
3
310.0 12.20 276.5 10.89 251.5 9.90 33.4 1.31
4
Mounting Bolts
Frame Size
All Frame Sizes
4 x M4 (#8)
www.invertekdrives.com
D
E
F
mm
in
mm
in
mm
252 9.92 21 1.0 8.30 197.5 7.78
Tightening Torques
Frame Size
Control Terminals
All Frame Sizes
0.5 Nm (4.5 lb-in)
Version 1.00 | Optidrive ODE-3 IP66 Outdoor Rated User Guide | 7
G
H
in
mm
in
mm
in
Power Terminals
1 Nm (9 lb-in)
I
J
Weight
mm
in
mm
in
kg
Ib
3. 1 6.8
4.2 0. 1 7 8.5 0.33 7.6 16.7
