11.4.

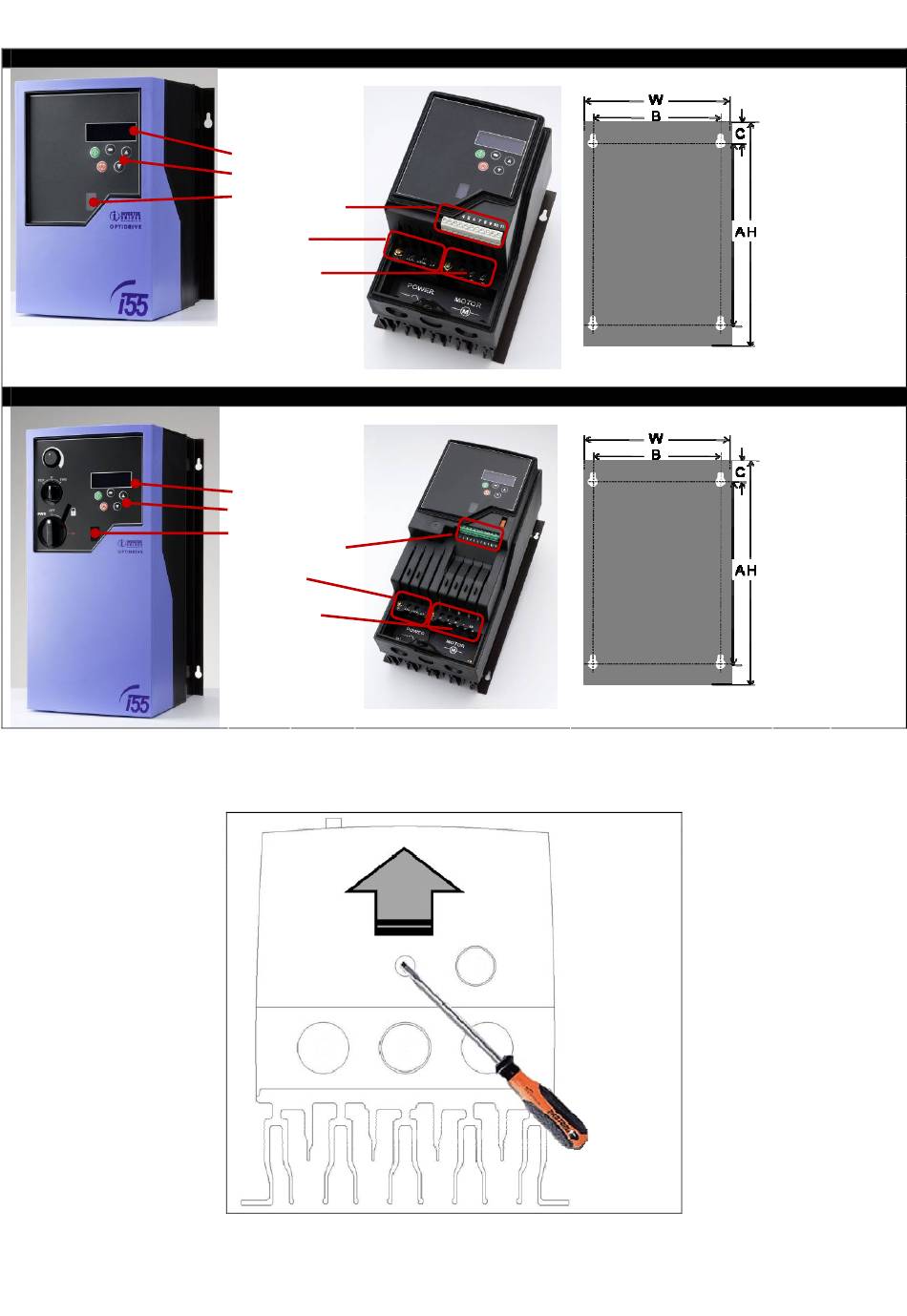

Dimensions and Mounting
Optidrive Plus IP55 Size 1 Layout, Dimensions and Mounting
Optidrive Plus IP55 Size 2 Layout, Dimensions and Mounting
11.5.
Removing the Terminal Cover
To access the connection terminals, the drive front cover needs to be removed as shown below.


34
www.invertek.co.uk

Height
200mm
Width
140mm
Depth
162mm
Weight  2.3Kg
Display
Keypad
IR Interface
Control Terminals
Power Input
Terminals
Motor Output
Terminals





Height
310mm
Width
165mm
Depth
176mm
Weight  4.5Kg
Display
Keypad
IR Interface
Control Terminals
Power Input
Terminals
Motor Output
Terminals





Footprint View

Fixings : 4 x M4 Keyhole slots
Footprint View

Fixings : 4 x M4 Keyhole slots

GV
Optidrive Plus 3
 User Guide
Height  200mm
Width
140mm
Depth
162mm
141.5mm
127.5mm
25mm





Height  310mm
Width
165mm
Depth
176mm
251.5mm
153mm
25mm
