Product description

Vacuum generator

4.3
The vacuum is generated by a dry-running vacuum pump (3), which is driven by a
V-belt. The vacuum generation is designed for smooth and suction-tight loads.
4.3.1

Suction plates

The suction plate is not included in the scope of delivery. It is used for suctioning
the load. The selection of the suction plate depends on the load (weight,
geometry and surface properties).
Only use suction plates from the manufacturer Probst on which the maximum
permissible load capacity at a negative pressure of -0.6 bar is clearly indicated on
the load capacity sticker. If the situation is unclear, the lifting device and the
suction plate must not be put into operation under any circumstances. Contact
Probst GmbH!
Standard suction plates are not suitable for handling glass panes.

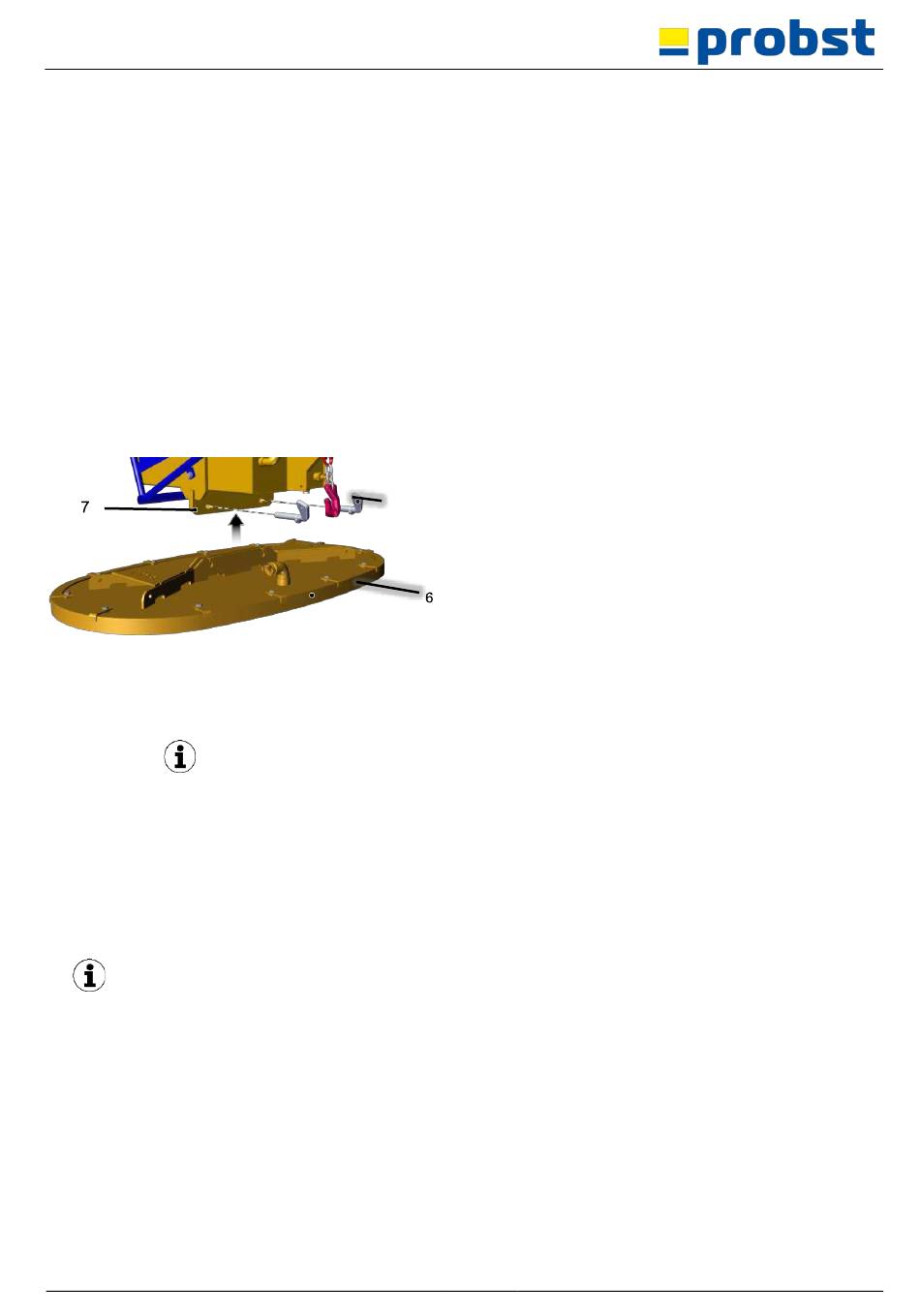

The suction plate (6) must be attached to the base body (7) using the two locking bolts (6.1).
The maximum permissible load of the suction plate determines the
maximum permissible load of the entire lifting device (see load plate of
the suction plate).
4.3.2

Energy supply

The vacuum pump (3) is driven by a combustion engine (23) via a V-belt. The
vacuum pump is put into operation by starting the combustion engine.
See operating instructions for the combustion engine in the appendix.
