Security

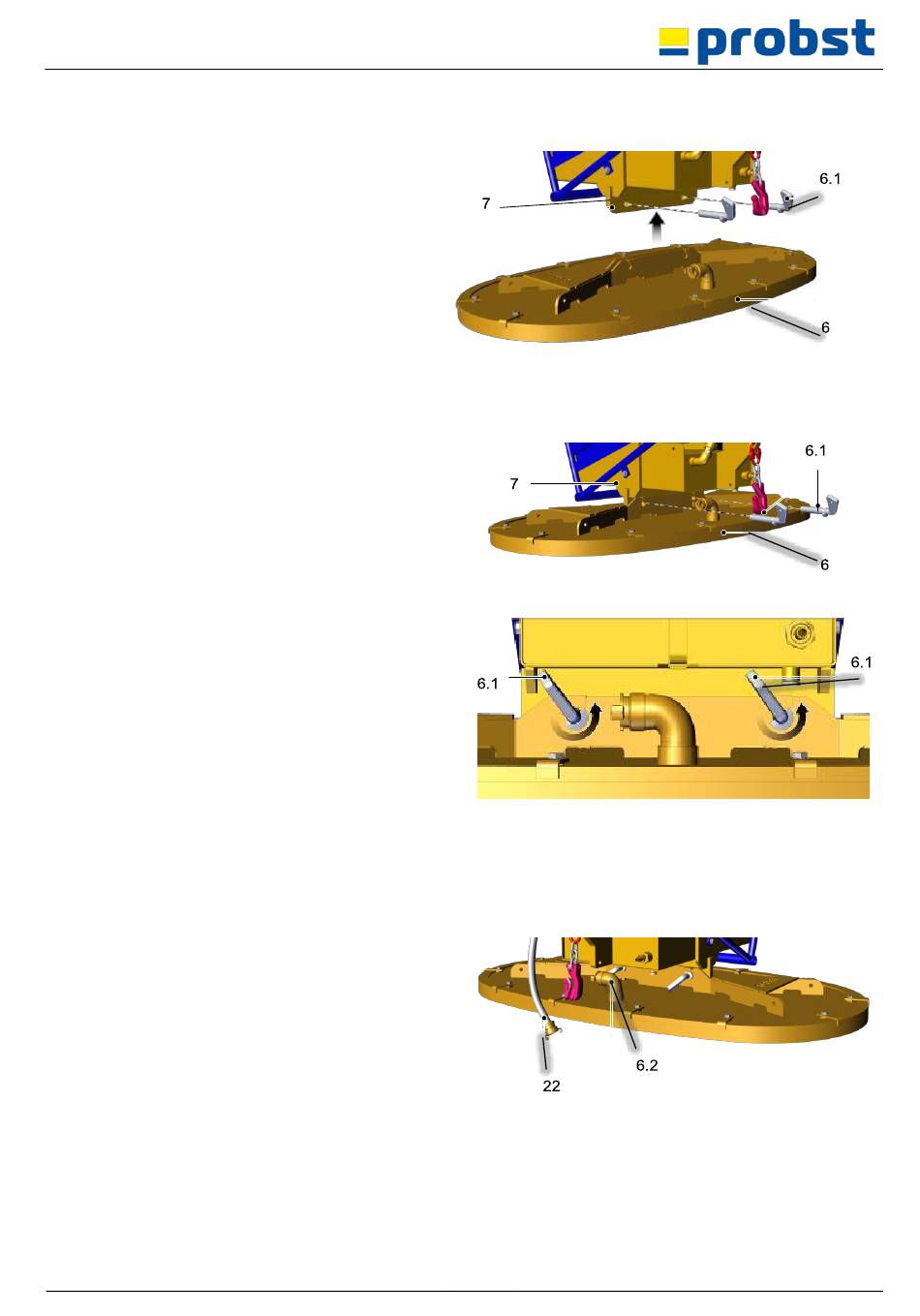

3. Place the suction plate (6) on
the base body (7). Use a
suitable lifting aid for heavy
suction plates.
Fasten the suction plate (6) to the base body (7)
using the two locking bolts (6.1).
to the base body (7).
4. Turn both locking bolts
(6.1) in the direction of the
arrow
cantilever clamps securely
behind
bracket.
5. Ensure that both locking
bolts cannot be pulled
out.
6. Connect the vacuum hose
(22) to the suction
connection (6.2) of the
suction plate.
52400043
so that the
the retaining
29 / 47 GB
