probst VPH 150 Manual

Vacuum power handy
Hide thumbs Also See for VPH 150:
Table of Contents

Advertisement

Quick Links

Vacuum Power Handy
VPH 150
5
Vacuum Power Handy
VPH 150
V5
Order-No.:
Serial-No.:
5271.0001
Translation of original operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VPH 150 and is the answer not in the manual?

Questions and answers

Related Manuals for probst VPH 150

Summary of Contents for probst VPH 150

  • Page 1 Vacuum Power Handy VPH 150 Vacuum Power Handy VPH 150 Order-No.: Serial-No.: 5271.0001 Translation of original operating instructions...

  • Page 2: Table Of Contents

    Contents 10/01/13 VPH 150 2 / 23 Contents Contents ..................... 2 Declaration of Conformity ................4 General ....................... 6 Authorized use ....................6 Survey and construction ................... 8 Technical data ....................8 Safety ......................9 Safety symbols....................9 Definition skilled worker / specialist ..............9 Safety Marking ....................
  • Page 3 Fault finding .................... 17 Repairs ......................18 Safety procedures ..................18 Hints to the identification plate ............... 19 Hints to the renting/leasing of PROBST devices ..........19 Vacuumpump .................... 20 General ......................20 Safety Advice ....................20 Description ....................21 7.3.1...

  • Page 4: Declaration Of Conformity

    Hersteller: PROBST GREIFTECHNIK VERLEGESYSTEME Manufacturer: Gottlieb-Daimlerstraße 6 Fabricant: 71729 Erdmannhausen Costruttore: Probst Greiftechnik Verlegesysteme GmbH Fabricante: info@probst.eu www.probst.eu Complies with the following provisions applying to it EC-machinery directive 2006/42/EG DIN EN ISO 12100 Safety of machinery - General principles for design - Risk assessment and risk reduction (ISO 12100:2010) DIN EN ISO 13857 Safety of machinery ―...
  • Page 5 DIN EN 55014-2 (IEC/CISPR 14-2) Electromagnetic compatibility – Requirements for household appliances, electric tools, and similar apparatus. Part 2: Immunity. Authorized person for EC-dokumentation: Name: J. Holderied Adress: Probst GreiftechnikVerlegesysteme GmbH; Gottlieb-Daimler-Str. 6; D-71729 Erdmannhausen Signature: Erdmannhausen, 10.01.2013................(M. Probst, Managing director)

  • Page 6: General

    The device (VPH 150) is additional equipped with a suspension lug for crane hook. Some of the suction plates, which can be attached to the device (VPH 150), reduce its carrying capacity. The maximum load permitted is stated on each suction plate.
  • Page 7 - especially when lifting large stone slabs with a small suction plate. ● Standard suction plates are not suitable for the transport of glass plates! Only suction plates of the manufacturer PROBST shall be used!

  • Page 8: Survey And Construction

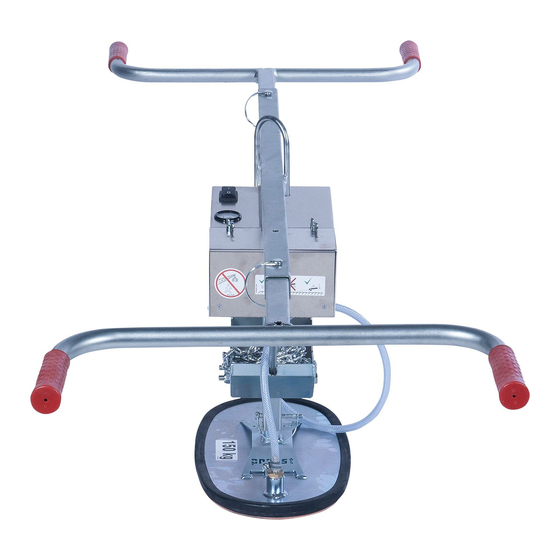

    General 10/01/13 VPH 150 8 / 23 3.2 Survey and construction Suspension lug Handles Vacuumpump Foot Suction hose Suction plate Suction filter 3.3 Technical data Type Carying capacity(kg) valve at - 500 mbar under-pressure Dead weight (kg) VPH 150 16,5...

  • Page 9: Safety

    Safety 10/01/13 VPH 150 9 / 23 Safety 4.1 Safety symbols Danger to life! Identifies imminent hazard. If you do not avoid the hazard, death or severe injury will result. Danger Hazardous situation! Identifies a potentially hazardous situation. If you do not avoid the situation, injury or damage to property can result.

  • Page 10: Safety Marking

    Safety 10/01/13 VPH 150 10 / 23 4.3 Safety Marking WARNING SIGN Symbol Meaning Order-No.: It is not allowed to be under hanging loads. Danger to life! 2904.0101 Do not lift any components off-centre. 2904.0383 (102x52 mm) WARNING SIGN Symbol Meaning Order-No.:...

  • Page 11: Instructions For Installation, Maintenance And Operating Personnel

    Safety 10/01/13 VPH 150 11 / 23 4.4 Instructions for Installation, Maintenance and Operating Personnel The device must be installed and maintained by qualified personnel, mechanics and electricians. Each person in your company involved in the installation, start-up, operation, maintenance, and repair of the device must have read and understood the operating instructions and especially the chapter "Safety"...

  • Page 12: Special Hazards

    Safety 10/01/13 VPH 150 12 / 23 4.5 Special Hazards ● The operating range have to be covered for unauthorized persons, especially children ● The workplace have to be sufficiently illuminated. Danger ● Take care handling wet, dirty and not solidified components.

  • Page 13: Checking The Safety Equipment

    Safety 10/01/13 VPH 150 13 / 23 4.9 Checking the safety equipment The vacuum lifting device has the ● Pressure gauge following safety equipment: Checking the ● Switch on the VPH. Pressure Gauge: ● Place the VPH onto a metal plate, or similar, and suction.

  • Page 14: Operating

    Operating 10/01/13 VPH 150 14 / 23 Operating 5.1 Operating Elements Main switch –on / off. This is to turn the pump on and off. Caution! The suction guide line is automatically bled when the VPH is switched off. Attention...

  • Page 15: Lifting Loads

    Operating 10/01/13 VPH 150 15 / 23 5.4 Lifting Loads ● Position the device VPH directly, above the load. Avoid pulling it diagonally. Make sure the load is evenly distributed.. ● Place the device VPH onto the load. ● Switch the device VPH on using the main =ON / OFF switch.

  • Page 16: Maintenance And Care

    Maintenance and care 10/01/13 VPH 150 16 / 23 Maintenance and care 6.1 Maintenance To ensure the correct function, safety and service life of the device the following points must be executed in the maintenance interval. Take care that for all maintenance services the device is completely shut down!!

  • Page 17: Removing Errors

    Maintenance and care 10/01/13 VPH 150 17 / 23 6.2 Removing errors 6.2.1 Fault finding Fault Cause Remedy A vacuum of -0,5 bar cannot be The item to be lifted has splits, recesses The item is not suitable to be lifted with the acieved.

  • Page 18: Repairs

    Maintenance and care 10/01/13 VPH 150 18 / 23 6.3 Repairs ● Only persons with the appropriate knowledge ● Before the device is used again, it has to be and ability are allowed to repair the device checked by an expert.

  • Page 19: Hints To The Identification Plate

    Examplel: Hints to the renting/leasing of PROBST devices With every renting/leasing of PROBST devices the original operating instructions must be included unconditionally (in deviation of the users country's language, the respective translations of the original operating instructions must be delivered additionally)!

  • Page 20: Vacuumpump

    Vacuumpump 10/01/13 VPH 150 20 / 23 Vacuumpump 7.1 General This vacuum pump is equipped with a rechargeable 12 Volt 6,5 Ah lead battery, and the pump is powered by an in-built lead battery. The recharging control system lets you see how charged up the battery is.

  • Page 21: Description

    21 / 23 7.3 Description The pump consist of the following parts: ● Robust aluminium casing with a ... to fix it onto the Probst stand. ● Two 12 Volt diaphragm pumps. ● Main switch – on / off function – using the main switch you can switch the pump on or off. By switching it off, the suction lead is automatically ventilated.

  • Page 22: Charge Battery

    Vacuumpump 10/01/13 VPH 150 22 / 23 7.3.1 Charge battery To ensure the perfect working of the pump, it is important that the lead rechargeable battery is always charged up. To charge the battery: Proceed as follows: ● Set the main switch to 0.

  • Page 23: Technical Data

    Vacuumpump 10/01/13 VPH 150 23 / 23 7.5 Technical Data Pump / Solenoid Valve Type of Pump 7012 V (2) Line Voltage 12 Volt DC Power Inut 1,4 A Conveying Caacity 18 NL/min. Final Vacuum Minimum 70 % 2/2 Way Solenoid Valve...
  • Page 24 1420 / 1565 / 1710 Bei Änderungen Rücksprache TB ! Gewicht: 19,4 kg Schutzvermerk nach DIN 34 beachten! Nachdruck nur mit unserer Genehmigung! Benennung Datum Name Vakuum-Power-Handy VPH 150 Erst. 7.9.2011 Perumal.Hurth Gepr. 2-Mann-Bedienung Blatt Artikelnummer/Zeichnungsnummer D52710001 Kunde: Urspr.
  • Page 25 Bei Änderungen Rücksprache mit TB ! Oberflächen- Format Maßstab: Gewicht: 1:10 16,7 kg behandlung Schutzvermerk nach DIN 34 beachten! Nachdruck nur mit unserer Genehmigung! Name Datum Benennung Vakuum-Power-Handy VPH 150 Erst. Perumal.Hurth 7.9.2011 Gepr. 2-Mann-Bedienung Werkstoff: Blatt Artikelnummer/Zeichnungsnummer 52710001 Kunde: Zust. Änderungstext Datum Urspr.
  • Page 26 42710004 Ansaugfilter für VPH Air filter for VPH 150 Air filter for VPH 150 42710020 Innenfilter für VPH VPH Internal Filter VPH Internal Filter...
  • Page 27 Spare Parts Vakuum-Power-Handy VPH 150 Art.Nr.: 5271.0001 Discription Art. Nr. Aluminium – Housing 4271.0014 complete 6 parts Aluminium Housing top 4271.0005 Aluminium 4271.0015 Housing bottom 4271.0016 Pump sheet metal 4271.0017 Accu sheet metal 4271.0018 Sheet metal 4271.0019 Accu cover plate 2530.0008...
  • Page 28 Spare Parts Vakuum-Power-Handy VPH 150 Art.Nr.: 5271.0001 2530.0008 2410.0165 2410.0166 4271.0005 2412.0018 2410.0154 2410.0162 2213.0019 4271.0018 4271.0019 4271.0004 Zubehörteil : Akkuadapterkabel mit Klemmen EYU0001.000 05.2012...
  • Page 29 12 V Bordspannungs- überwachung Manometer Pneumatik Plan Schottverschraubung Filter Magnet Ventil Filter Filter Probst Greiftechnik - Verlegesysteme GmbH • Gottlieb- Daimler-Str. 6 • D-71729 Erdmannhausen • Tel.: 07144 / 3309-0 • Fax: 07144 / 3309-50 e-mail: info@probst-gmbh.de • Internet: www.probst-gmbh.de...
  • Page 30 Proof of maintenance The claim under guarantee for this device only exists and is subject to the proper execution of the mandatory maintenance works. (In case of warranty request please always attach a copy of the proof of maintenance) Operator: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Device type: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Article -No.:...
  • Page 31 Proof of maintenance The claim under guarantee for this device only exists and is subject to the proper execution of the mandatory maintenance works. (In case of warranty request please always attach a copy of the proof of maintenance) Operator: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Device type: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Article -No.:...
  • Page 32 Proof of maintenance The claim under guarantee for this device only exists and is subject to the proper execution of the mandatory maintenance works. (In case of warranty request please always attach a copy of the proof of maintenance) Operator: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Device type: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Article -No.:...
