Attach traverse for several suction plates (option)

8.4

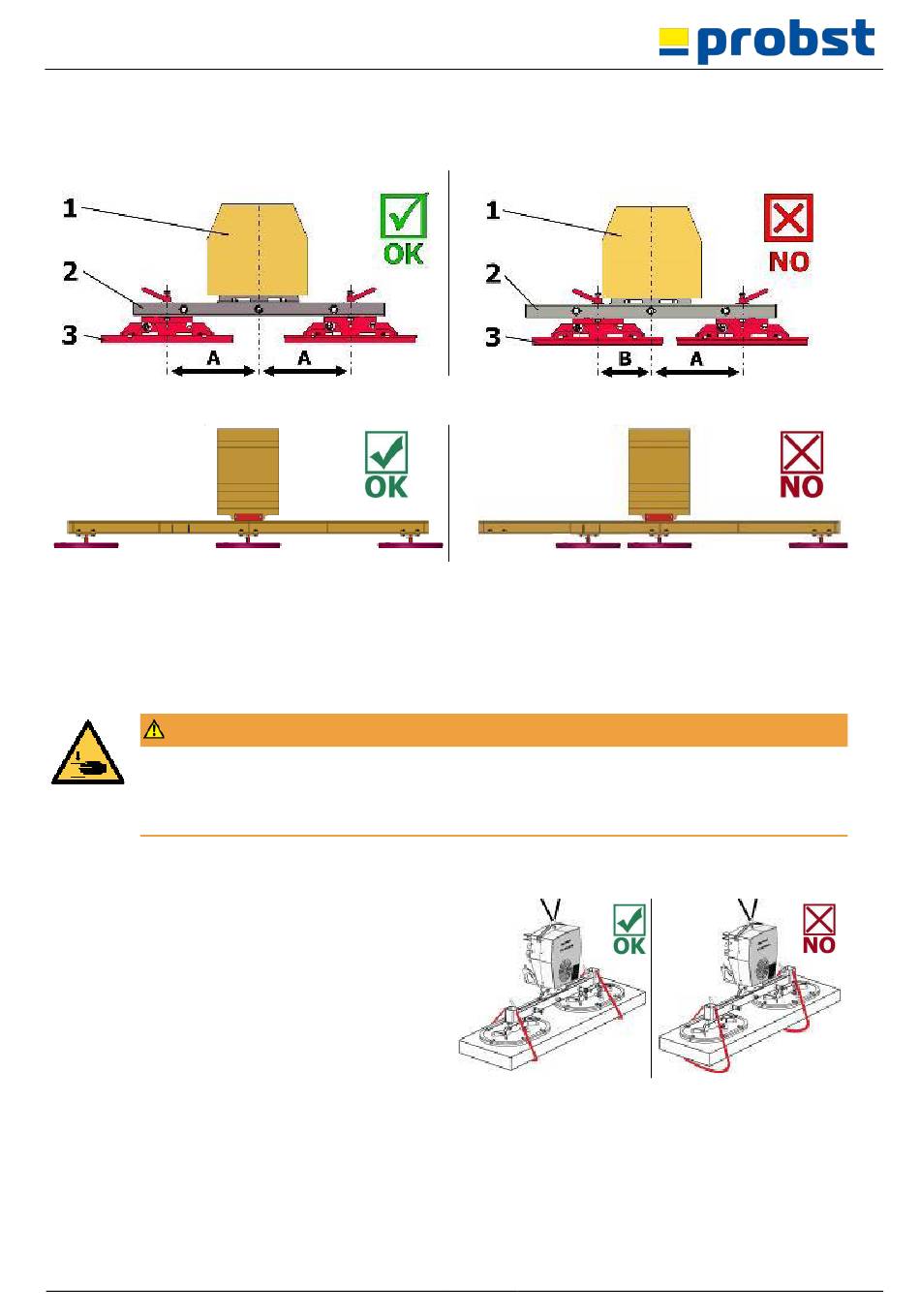

Attach two suction plates symmetrically
Attach three suction plates symmetrically
• Only use suction plates of the same type (load capacity, dimensions, shape) on the
traverse.
• Always attach the suction plates symmetrically to the centre axis of the crossbar.
• Always suck in the load at the centre of gravity.
• Secure the load with two load securing chains.
WARNING
1. Lift load.
2. Throw both load securing chains
under the raised load.
3. Attach the load securing chains
to the traverse (see
illustration).

The load securing
chains must be in
close contact with
the load.
4. Stow the chain ends in the
chain boxes.

The load can now be transported close to the ground (approx. 50 cm above the ground).
52400043
The load falls when the load securing chain is attached
Crushing hazard!
Do not reach under the load when attaching the load securing chain.
