4.4.4.2 Screw tightening

4.4.5 Electrical installation checklist

No.
Checked the input and output power wiring and ensured
1
the wiring positions and voltages were correct.
Ensured that the input and output power wiring was
2
correct and fastened.
Ensured that the input and output power cable carrying
3
capacity selection was correct.
Ensured that routing the input and output power cables
4
that were shielded complied with EMC regulations.
Checked the external auxiliary power wiring and ensured
5
the wiring positions and voltages are correct.
Routed the control power cables and power cables
6
separately, complying with EMC regulations.
202401 (V1.0)

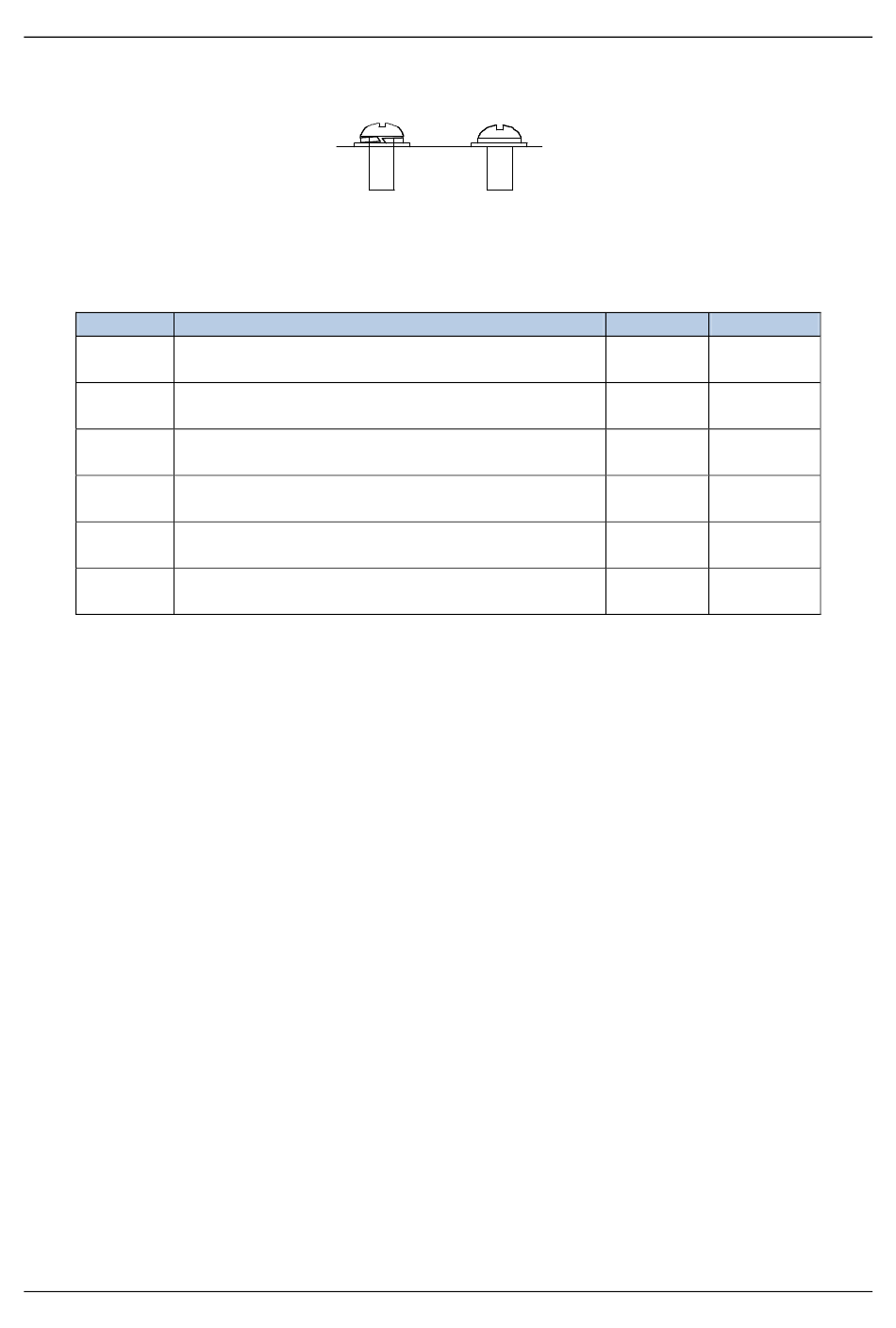

Figure 4-13 Screw installation requirements
NG
The screw is
not fastened.
Operation
Y
The screw is
fastened.
Compliant
Electrical installation
Completed
□ □
□ □
□ □
□ □
□ □
□ □
44
