Goodrive880 Series Regenerative Rectifier Unit Hardware Manual
3.

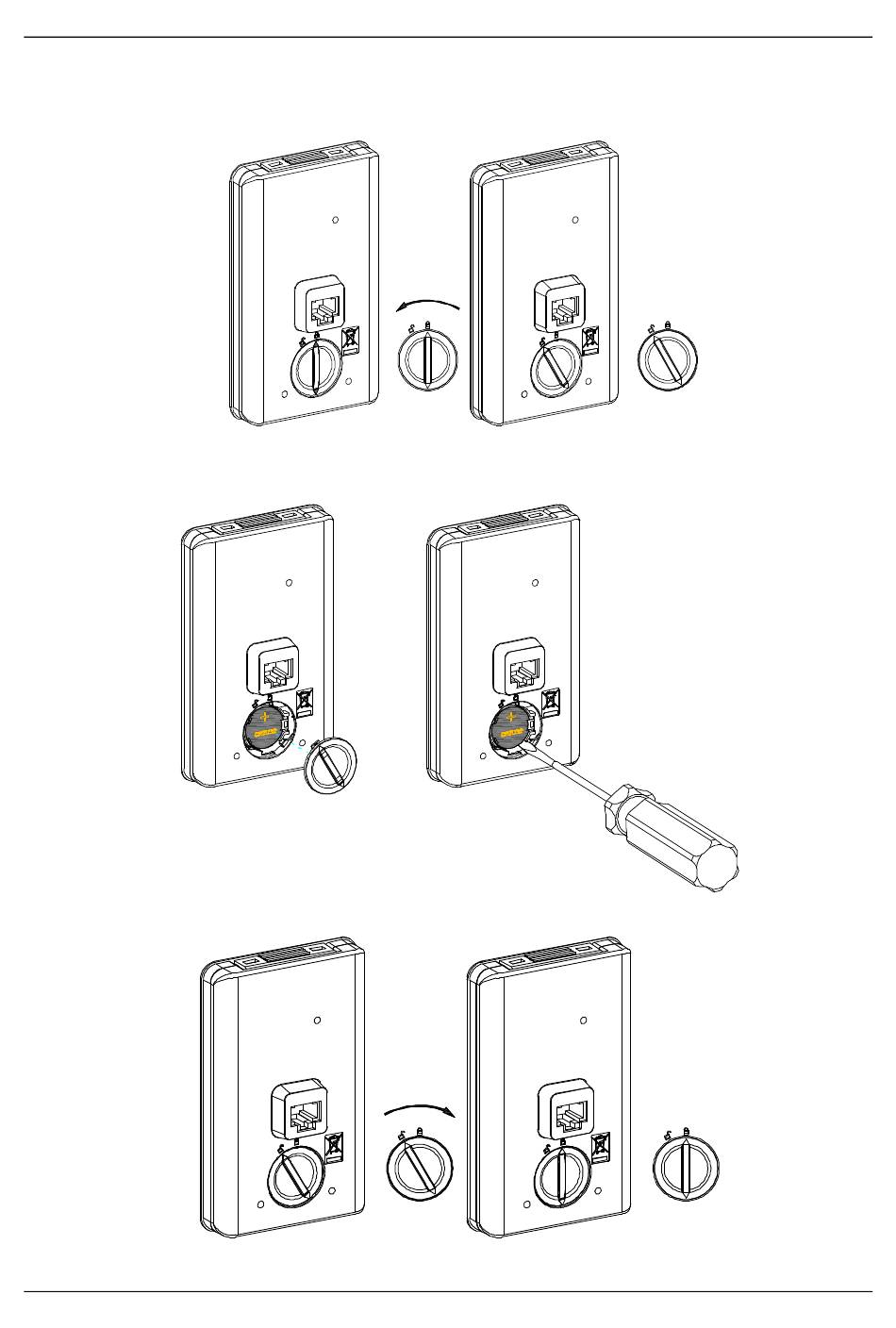

Replace the SOP battery.
The procedure is as follows:
Step 1 Rotate the battery cover counterclockwise by 30° by hand until the cover opens.
Step 2 Remove the cover, press one side of the battery with a screwdriver, remove and replace the battery
with a new one.
Step 3 Close the cover and rotate it clockwise by 30° to tighten it.
Step 4 Dispose of waste batteries in accordance with local disposal rules or applicable laws.
202401 (V1.0)
OPEN
CLOSE
Maintenance and inspection
68
