Goodrive880 Series Regenerative Rectifier Unit Hardware Manual
The regenerative rectifier unit has a high center of gravity and must be placed on a flat and solid ground with
sufficient support strength and a tilt angle of less than 5°. Failure to comply with this requirement will cause
the unit to tip over or topple over, which may result in serious injury or property damage.
Note the following to fold or unfold the anti-tipping stand:
1. To unfold the anti-tipping stand, pull down the anti-tipping stand to press the spring, wrap it around
the restraining pin and rotate it 180° to snap into the slot as shown in
2. To fold the anti-tipping stand, rotate the anti-tipping stand in the slot by 180° to restore the pressed
spring back to its original state to clamp the anti-tipping stand, as shown in
3. The restraint of the pin ensures that the anti-tipping stand will fold properly due to shaking. The
anti-tipping stand folds, as shown in
Stand slot
202401 (V1.0)

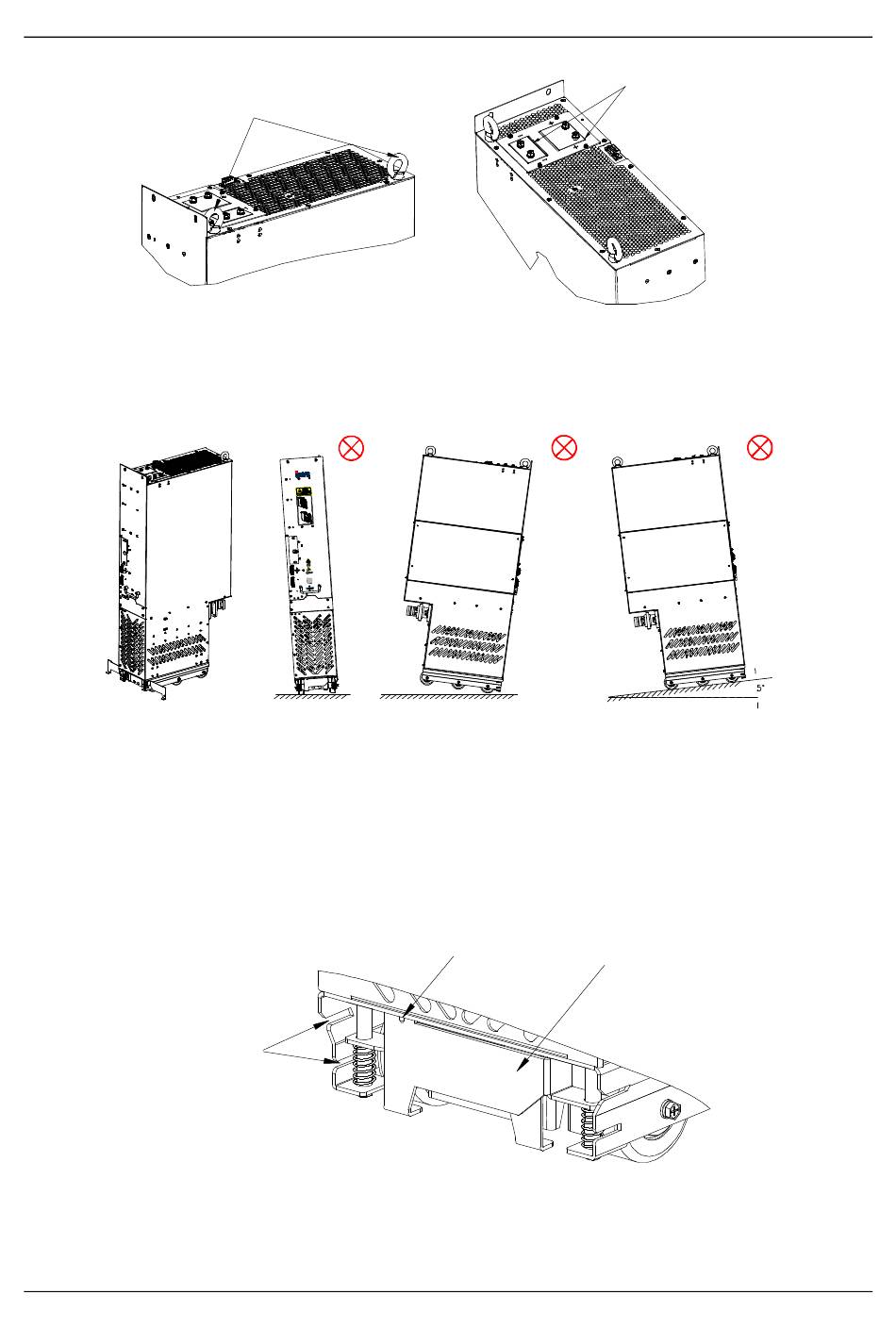

Figure 3-5 Unit top structure
Lifting ring
Figure 3-6 Unit bottom structure
Figure 3-6.
Restraint pin
Mechanical installation
Never apply force
＞
Figure 3-7.
Figure 3-8.
Anti-tipping
stand
