Goodrive880 Series Regenerative Rectifier Unit Hardware Manual

7.2.5 RCU and keypad

Replace the storage card.

After the RCU control module is replaced, the existing parameter settings can be preserved by transferring

the storage card from the faulty module to a new module.

The procedure is as follows:

Step 1 Press the SD storage card once, and pull the SD storage card out from the faulty module after the SD

card is ejected.

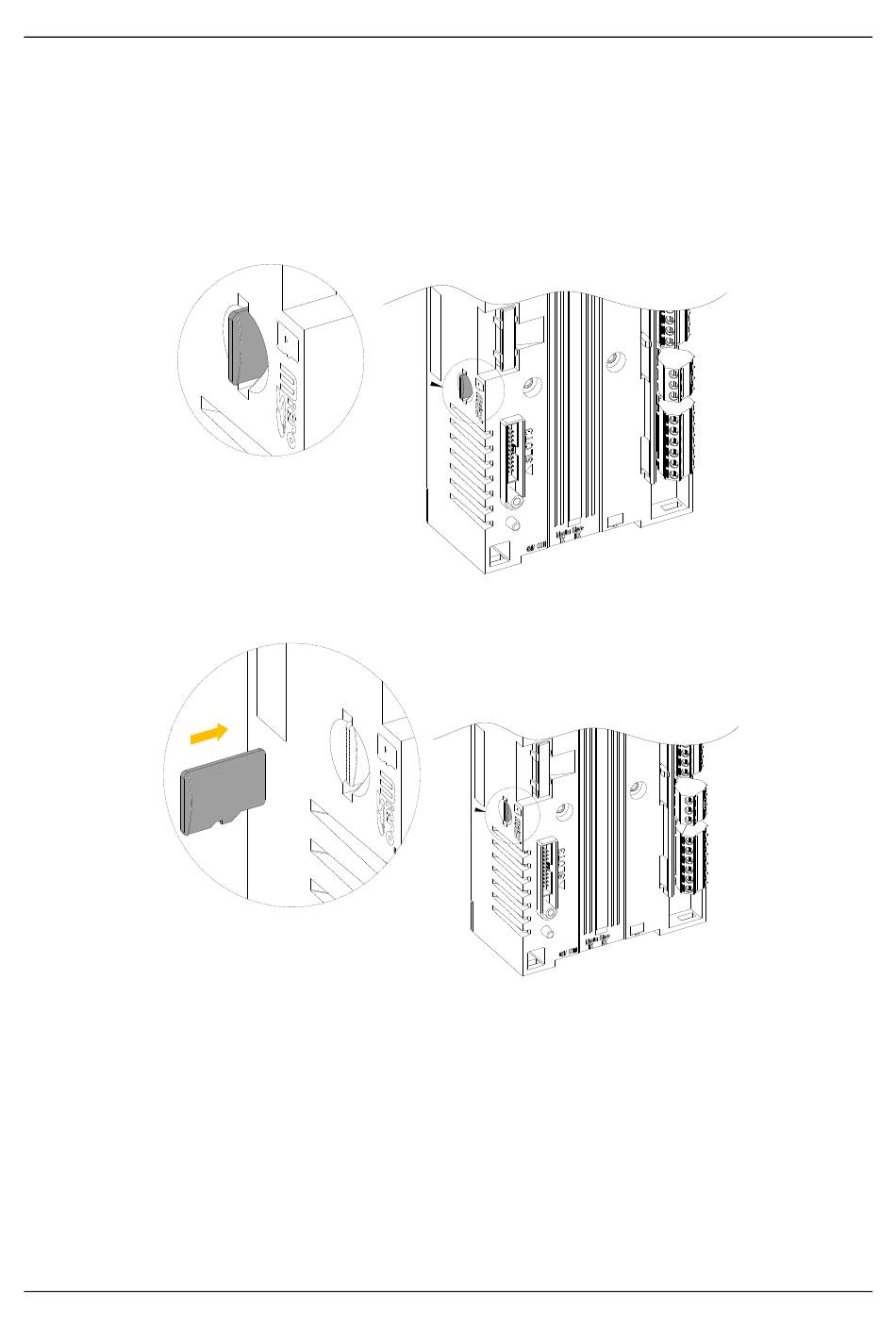

Step 2 Insert and push the SD card into the card holder of the new module in the direction shown in the

figure.

Step 3 Ensure that the SD storage card is pushed into place. Otherwise, abnormalities may occur due to

poor contact.

202401 (V1.0)
