Goodrive880 Series Regenerative Rectifier Unit Hardware Manual

6.3 EMI filter module

For products in A4–A7 frames, precharge components are not configured with EMI filtering modules, which
can be used for interference generated by the system and external interference to improve EMC
performance. The dimensions of the EMI filter module is 200*134*37 mm (W*D*H), as shown in
6.4 A6&A7 maintenance bracket
When installing or maintaining the regenerative rectifier unit in an A6&A7 frame in a cabinet, to make it
convenient for the regenerative rectifier module to enter or exit the cabinet, it is necessary to use the
regenerative rectifier unit maintenance bracket.
202401 (V1.0)

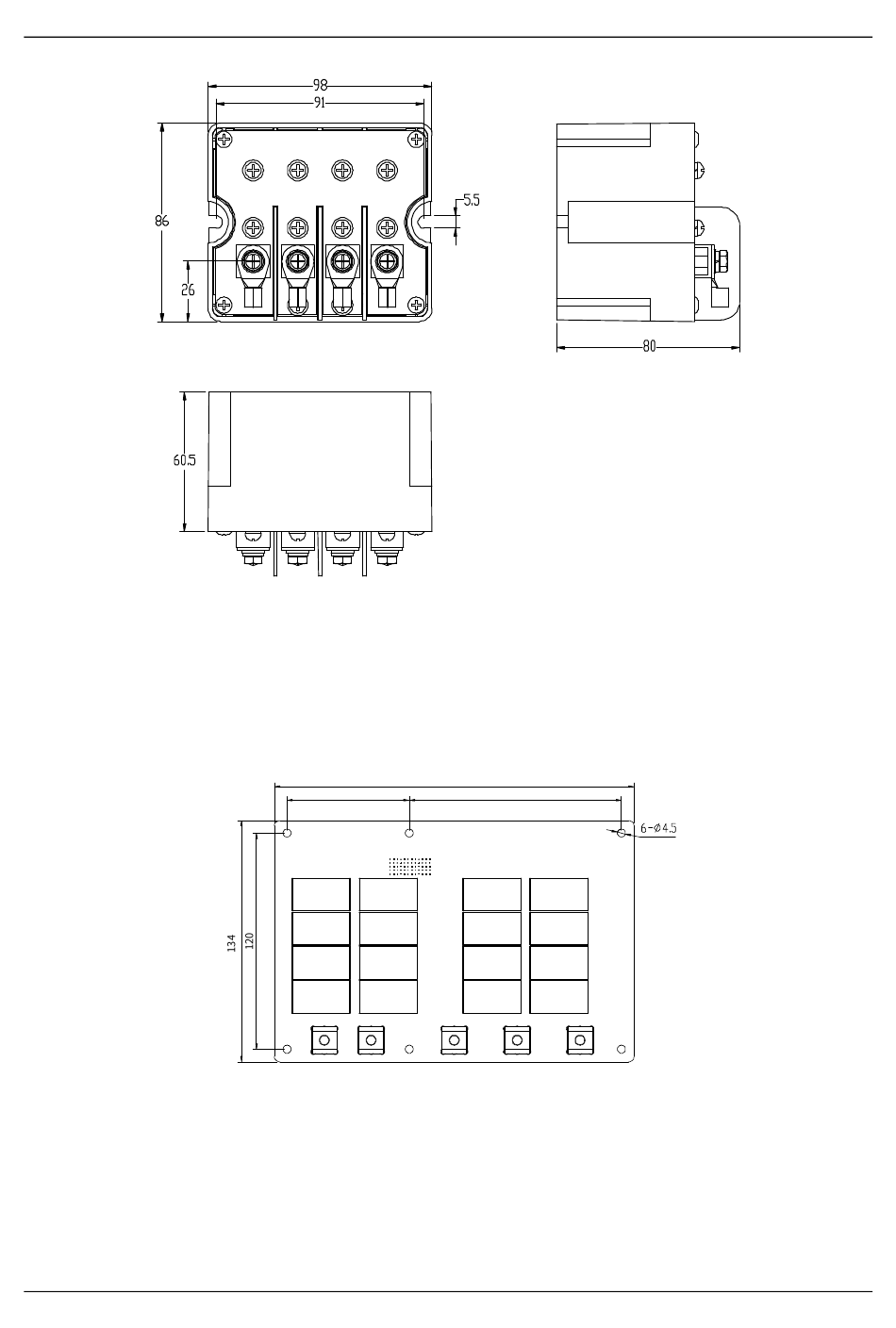

Figure 6-3 Surge protection module
Figure 6-4 EMI filter module
200
68
R S T
118
N PE
Accessories
Figure 6-4.
55
