4.4.1.3 Screw tightening

4.4.2 Electrical installation checklist

No.
Checked the input and output power wiring and ensured the
1
wiring positions and voltages were correct.
Ensured that the input and output power wiring was correct and
2
fastened.
Ensured that the input and output power cable carrying capacity
3
selection was correct.
Ensured that routing the input and output power cables that
4
were shielded complied with EMC regulations.
Checked the external auxiliary power wiring and ensured the
5
wiring positions and voltages are correct.
The date of manufacture can be known from the inverter unit
nameplate. If the interval to the first commissioning time or the
power module downtime is less than 2 years, precharge for the
6
DC bus capacitors is not needed; if the downtime is more than 2
years, precharge for the DC bus capacitors is needed. For details
about precharge, see 6.2.1Capacitor.
Routed the control power cables and power cables separately,
7
complying with EMC regulations.
202212 (V1.0)

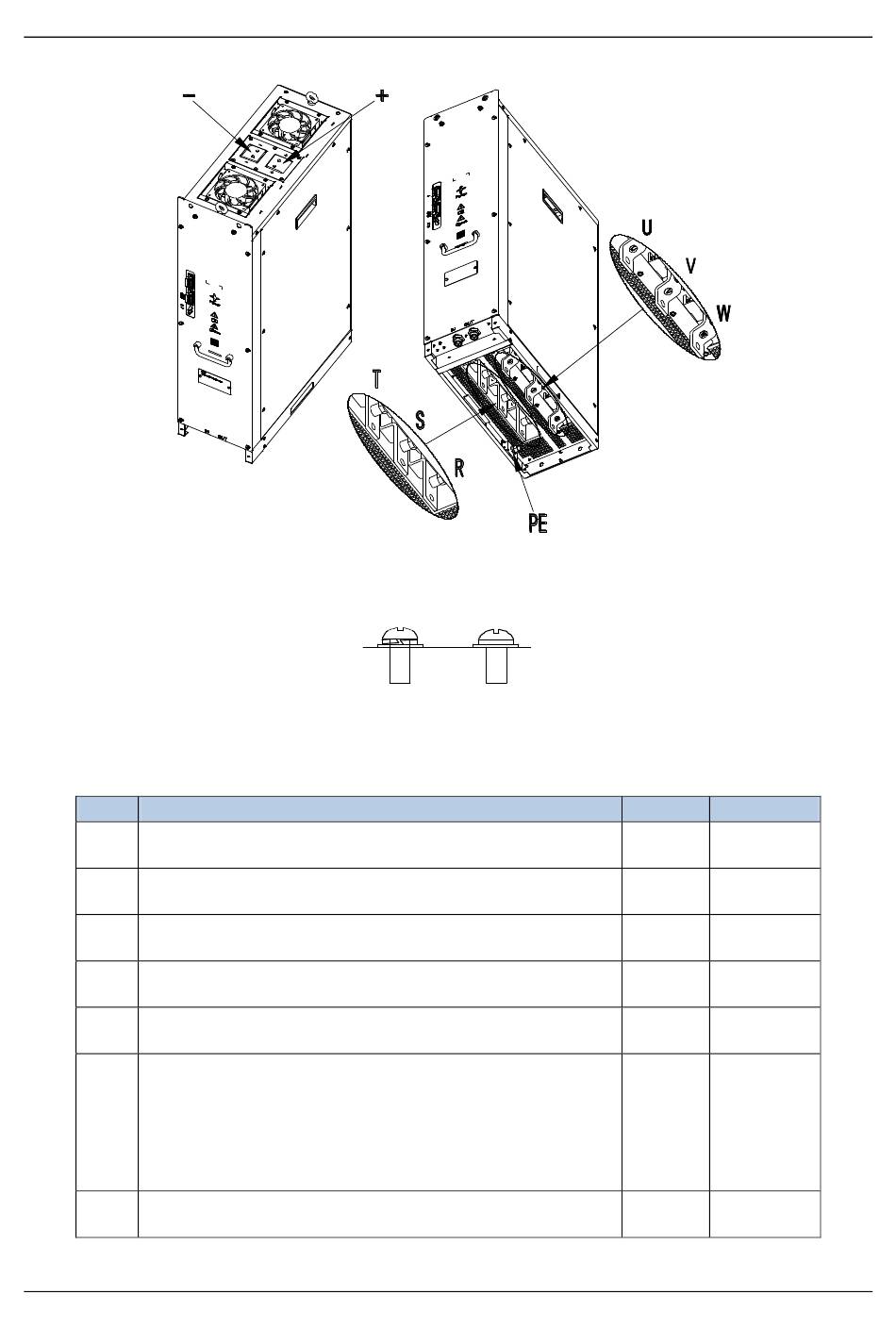

Figure 4-13 Water-cooled VFD unit terminal diagram
Figure 4-14 Screw installation requirements
NG
The screw is
not fastened.
Operation
Y
The screw is
fastened.
Compliant Completed
Electrical installation
□ □
□ □
□ □
□ □
□ □
□ □
□ □
47
