INVT Goodrive880 Series Hardware Manual page 81

Goodrive880 Series Regenerative Rectifier Unit Hardware Manual
608.9
370
(Frame bottom holes for fixing)
居中压 居中压
字印 字印
定位支撑柱压铆后,要确保卡入的零
件顺畅卡紧
技术要求
1.未注线性公差按GB1804-m级。
2.要求各零部件间装配严谨,紧固件连接牢固;
无任何装配干涉或变形等不良现象。
3.表面不许划伤,凹凸不平等不良现象。
4.产品所有来料需符合INVT《环境有害物质管理标准》。
攻丝
M4
202401 (V1.0)

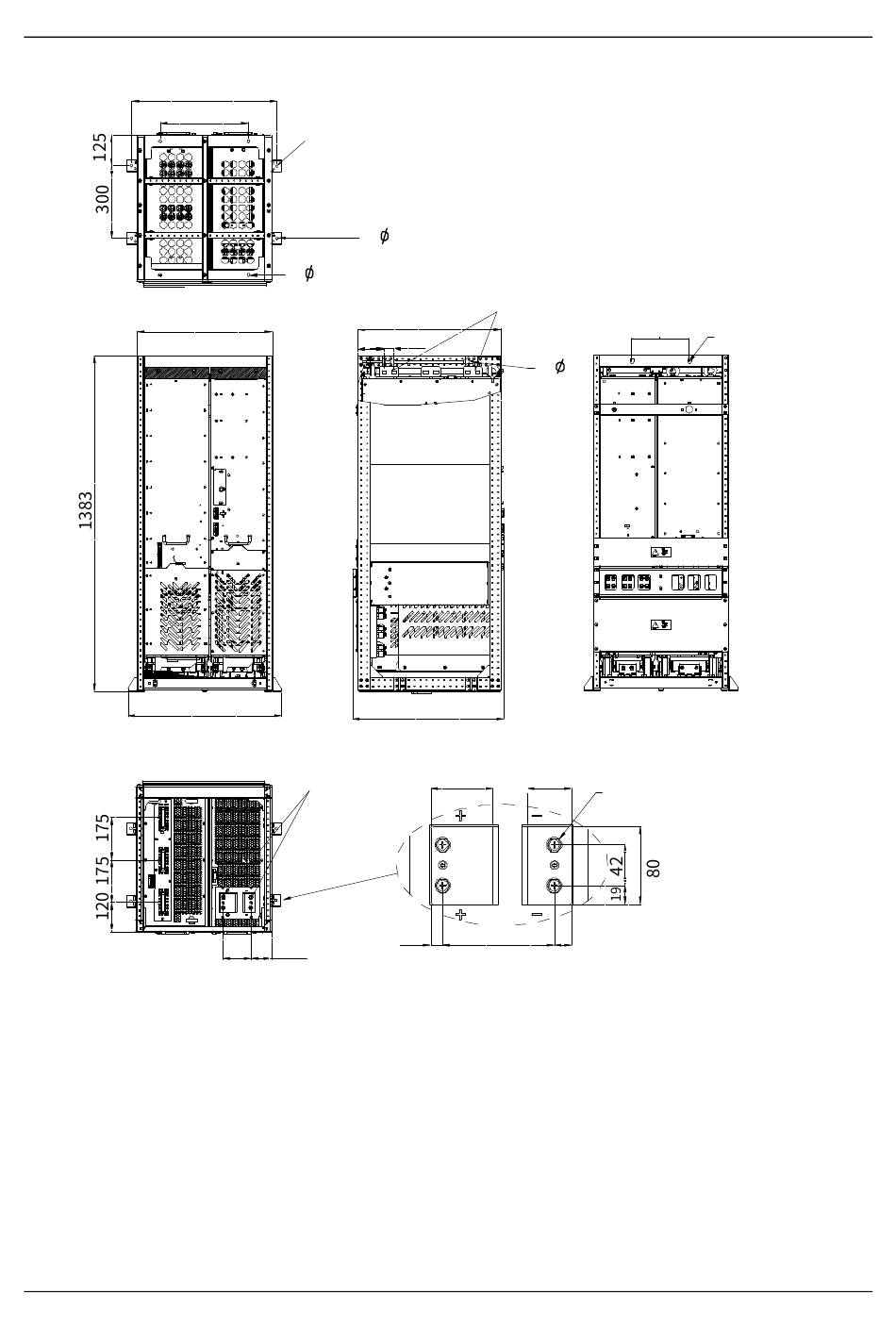

Figure B-7 Installation dimensions of A8+L frame (unit: mm)
Anchor fixIng
4-M8
4- 11
（anchor bolt fixing hole during transportation）
4- 12
565
110
645
+\- input fixing
screws 4-M10
84.5
117
U\V\W, cup head square
neck bolts 6-M10 for fixing
600
40
4-
20
(Lifting hole)
截面 XSEC0001-XSEC0001
635
(Effective overlap area of copper bars)
260 188
50 468
74
Dimension drawings
2-OB12X22
240
1.6
4-M8
75
