6.1 Function expansion module

The function expansion module mainly used in the regenerative rectifier is an AC voltage detection module,
which is used for input voltage detection. The following figure shows the outline structure.
The dimensions of the AC voltage detection module is 37.4x113x180 mm (W*D*H), as shown in
Installation of voltage detection module: The rear mounting method is used. Align the installation holes and
tighten the screws.
202401 (V1.0)

6 Accessories

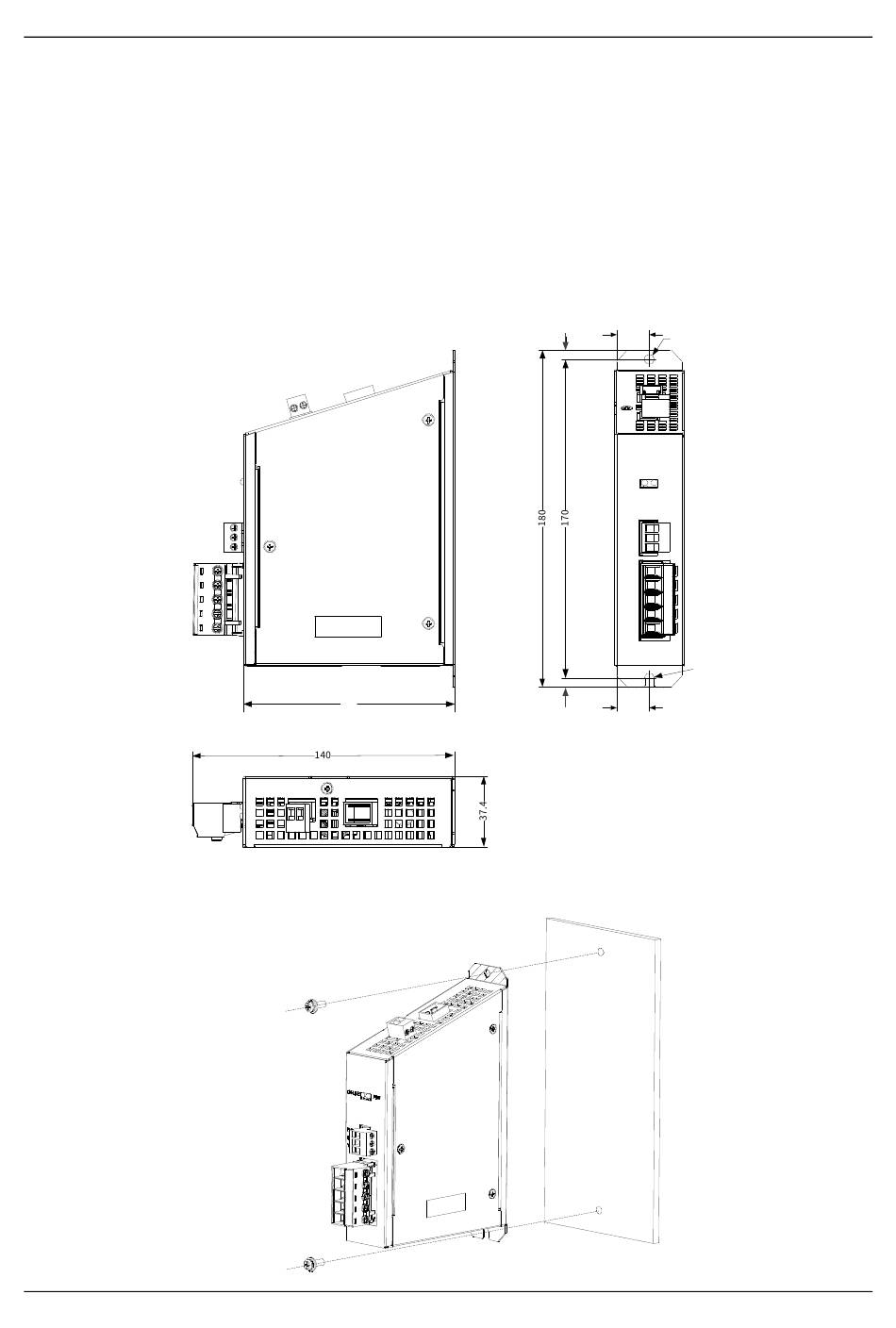

Figure 6-1 Product outline and mounting dimensions (unit: mm)
