Goodrive880 Series Regenerative Rectifier Unit Hardware Manual
Maintenance and inspection

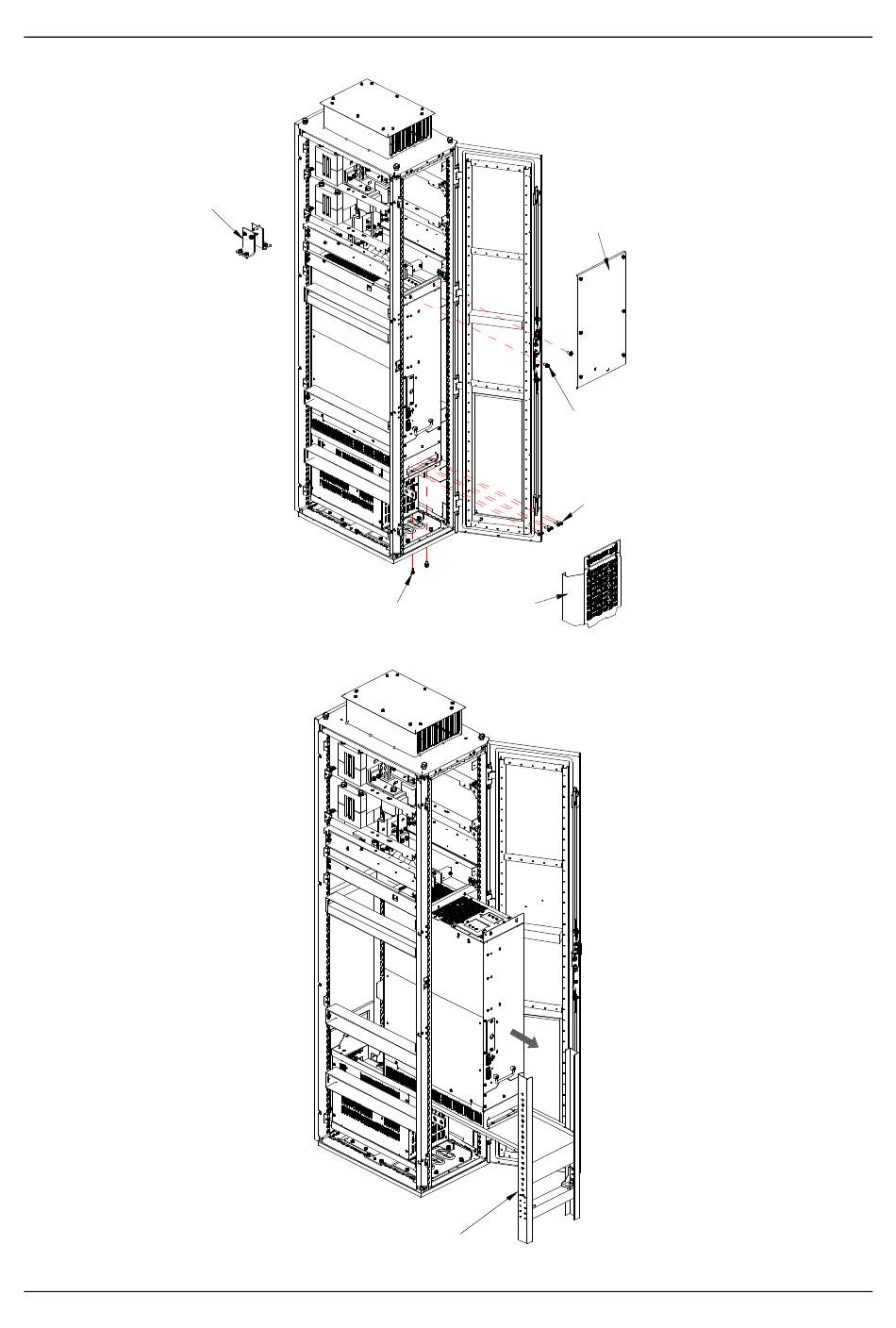

Figure 7-6 Replacing the A8n rectifier unit
Disassember the (+)
and (-) DC input
copper bars.
Remove the
protective plate.
Remove the two fixing screws
at the top of the unit.
Remove the six M6*25 screws
connecting the copper bar
between the reactor base and
the unit.
Remove the two fixing screws
Remove the
protective plate.
at the bottom of the unit.
Figure 7-7 Installation and maintenance bracket
Installation and
maintenance bracket
202401 (V1.0)
65
