Output Not: Out Not - Omron SYSMAC CJ - REFERENCE MANUAL 08-2008 Reference Manual

Sequence Output Instructions

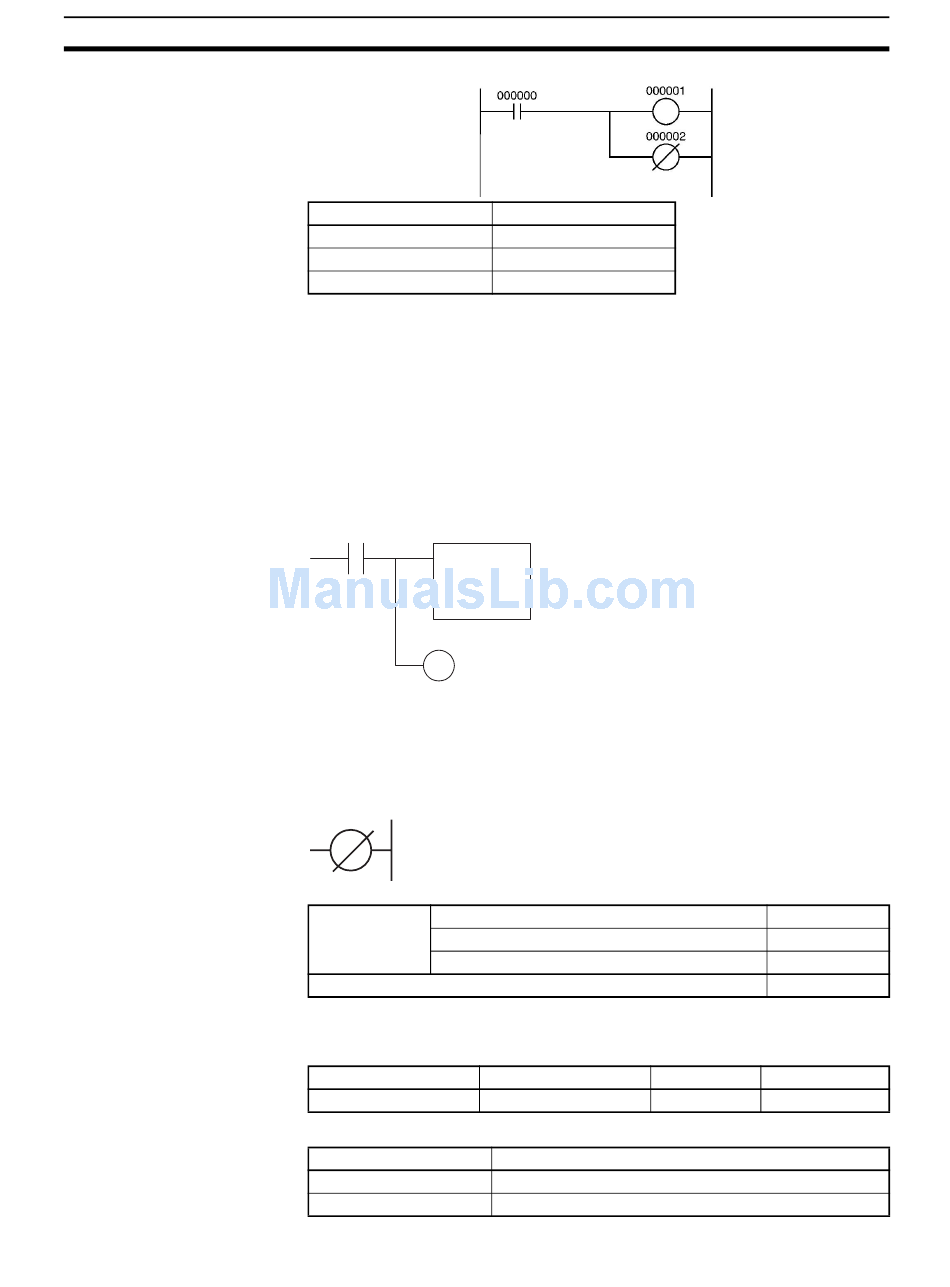

Example
3-4-2

OUTPUT NOT: OUT NOT

Purpose
Ladder Symbol
Variations
Applicable Program Areas
Operand Specifications
Instruction
LD
OUT
OUT NOT
Note Difference between SET/RSET and OUT
For OUT, the operand bit is turned ON when the input condition turns ON and
is turned OFF when the input condition turns OFF. For SET and RSET, the
operand bit turns ON or OFF, respectively, when the input condition turns ON
and the operand bit does not change when the input condition turns OFF.
Note Precaution for Index Registers
OUT is executed even when the input condition turns OFF. Be particularly
careful when programming OUT using an indirect index register address.
Input condition
,IR0
Reverses the result (execution condition) of the logical processing, and out-
puts it to the specified bit.
Variations Executed Each Cycle for ON Condition
Executed Once for Upward Differentiation
Executed Once for Downward Differentiation Not supported.
Immediate Refreshing Specification (See note.)
Note Immediate refreshing is not supported by CS1D CPU Units.
Block program areas
Not allowed
Area
CIO Area
Work Area
Operand
000000
000001
000002
MOVR
W0.0
IR0
When the input condition is OFF,
MOVR(560) is not executed, but OUT
is executed for the address stored in
the index register.
Step program areas
OK
OUT bit operand
CIO 000000 to CIO 614315
W00000 to W51115
Section 3-4
OUT NOT
Not supported.
!OUT NOT
Subroutines Interrupt tasks
OK OK
187
