1.8 The D70 MT Coil

1.8.1. Overview
The D70 MT Coil is used for single pulse stimulation during Motor Threshold (MT)
assessments. The coil has a Double 70mm, figure-of-eight winding, with an output
matched to the AirFIlm
Coil Connector
Coil Cable

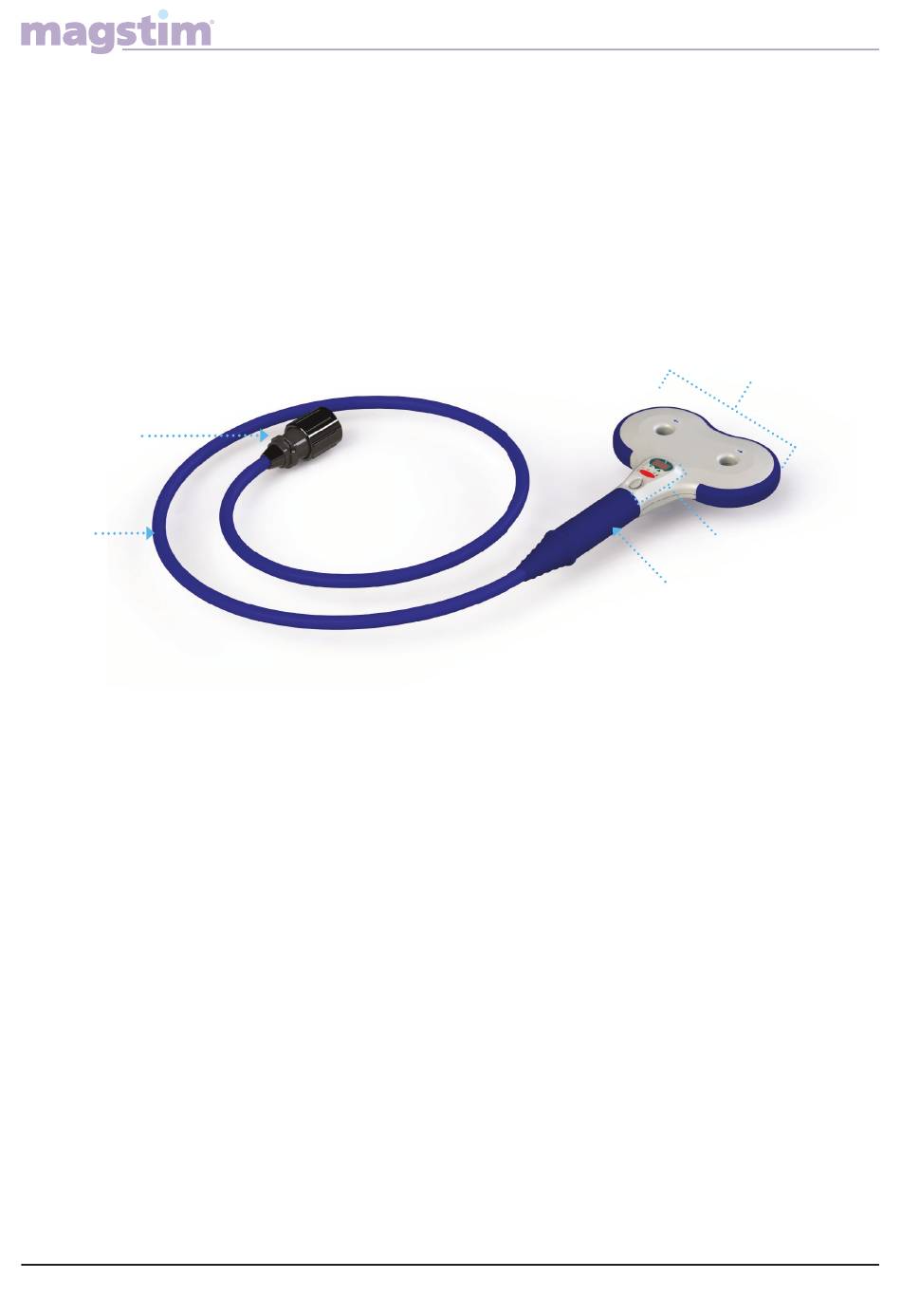

Figure 1.7: The D70 MT Coil overview
Coil Connector
The coil connector attaches to the
coil socket on the mainframe.
Coil Cable
The coil cable links the coil to the
mainframe.
Coil Head
The coil's figure-of-eight winding
is located within the coil head. This
generates a magnetic field which
provides the stimulation.
The Magstim ® Company Ltd.
® Coil.
Coil User Interface (UI)
The D70 MT Coil features integrated
controls. More information is given
on page 15.
Coil Handle
The coil handle allows you to safely
hold and position the coil during
stimulation.
MOP16-EN-02
Coil Head
Coil User Interface (UI)
Coil Handle
