Rapid Stimulator - MAGSTIM The Rapid2 Operating Manual

1.6 Rapid 2 Stimulator
1.6.1 Front View
i. Rapid2 User Interface (UI)
Touch Screen

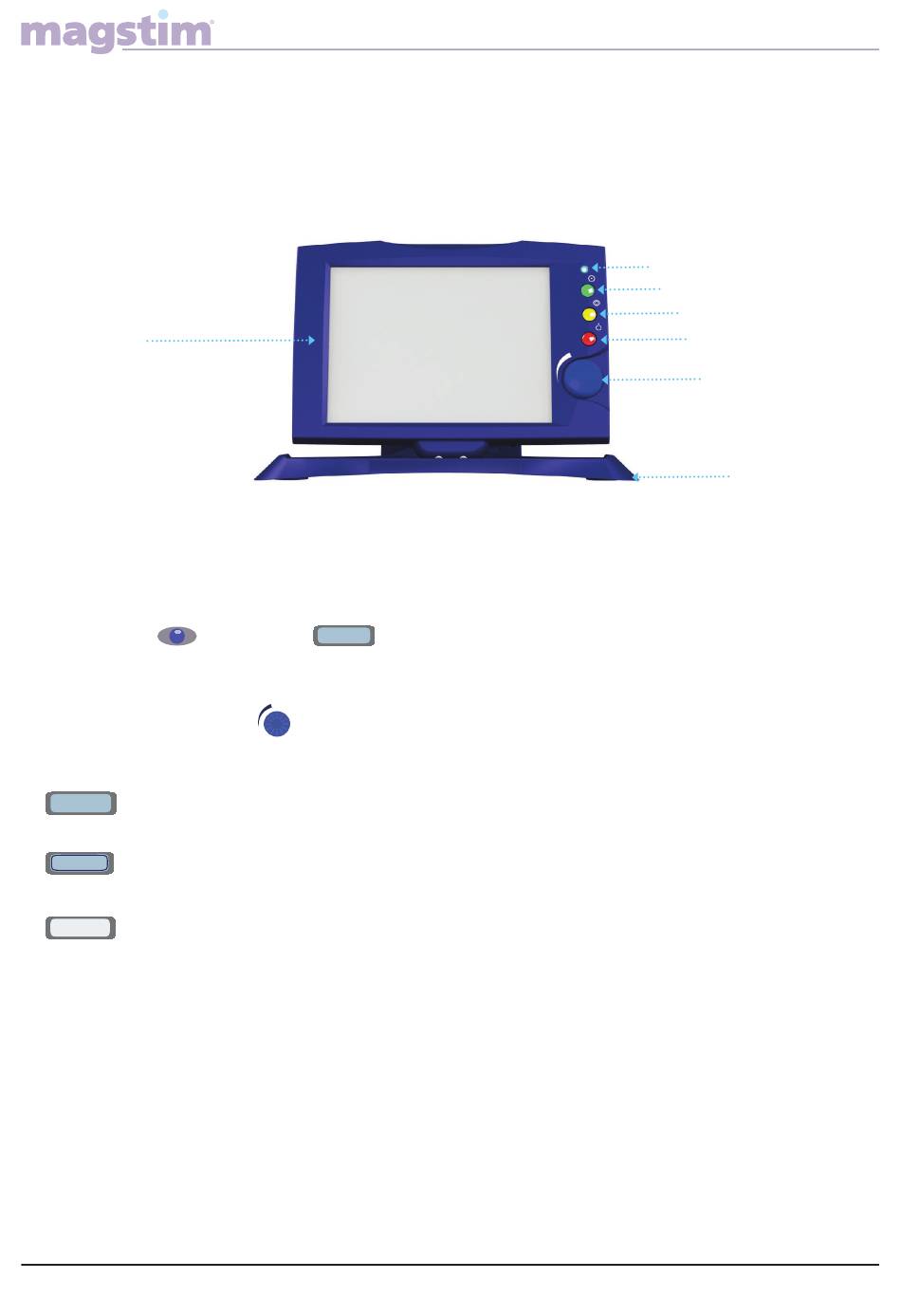

Figure 1.2: Rapid2 UI front view
Touch Screen
To make a selection on the touch
screen, use your finger to press on
the button
wish to select.
Once a window is selected you can
use the control dial
value in that window.
Selectable windows appear
10.0
Hz
as pale blue.
The selected window will be
10.0
Hz
highlighted with a blue line.
You cannot select windows
3000
which are white.
Caution: Do not press hard, or use a sharp or
pointed object to make the selection, as this
may damage the touch screen.
Stand-by Indicator
If the UI is not used for 30 minutes
it will go into stand-by. The screen
will appear blank and the stand-by
indicator will pulse.
Touch the screen to wake the UI.
The Magstim ® Company Ltd.
or window
10.0
Hz
to alter the
Run Button
Pushing the green 'run' button will
charge
you stimulation (if the stimulating coil is
correctly connected).
Trigger Button
Pushing the yellow 'trigger' button will
deliver a stimulation pulse, or begin
the set therapy protocol depending
on which menu the Rapid
currently showing.
System Stop Button
Pressing the red 'Stop' button will
immediately disarm the stimulator.
Control Dial
The output control dial alters the
stimulator power output or changes
the selected on-screen setting.
Base Plate
The base plate provides stability to
the stimulator UI.
MOP16-EN-02
Stand-by Indicator
Run Button
Trigger Button
System Stop Button
Output Control
Base Plate
the stimulator ready for
2 UI is
7
