3. Instructions
Sample program

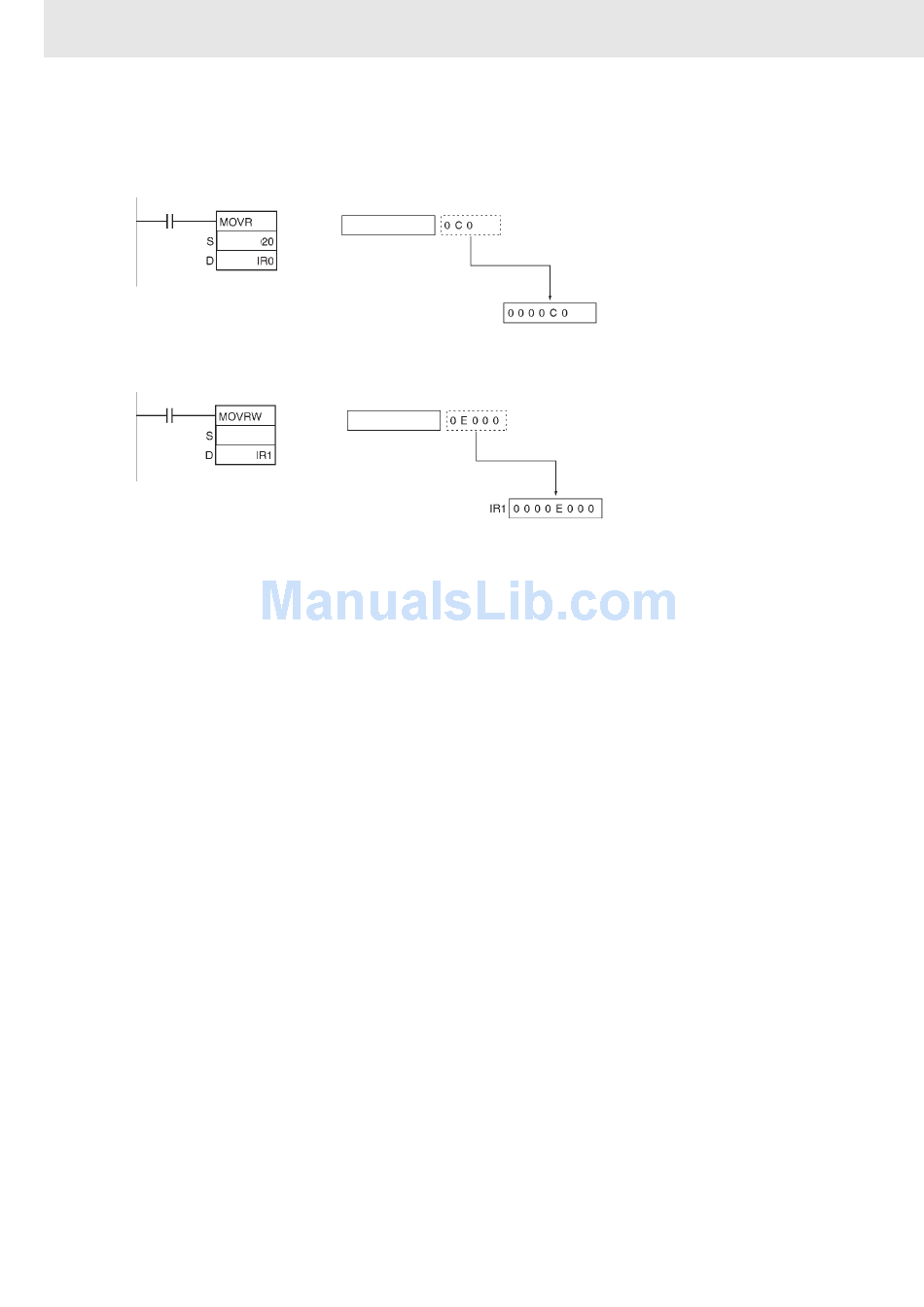

When CIO 0.00 is ON in the following example, MOVR(560) writes the PLC memory address of CIO 20
to IR0.
0.00
When CIO 0.00 is ON in the following example, MOVRW(561) writes the PLC memory address for the
PV of timer T0 to IR1.
0.00
Refer to the CS/CJ Series Operation Manual or the CJ2 CPU Unit Software Operation Manual (W473)
for specific PLC memory addresses.
298
S: 20
T0
S:
T0
Internal I/O memory address
1 4
Internal I/O memory
address of CIO 20
1 4
D: IR0
Internal I/O memory address
CS/CJ/NSJ Series Instructions Reference Manual (W474)
