3. Instructions

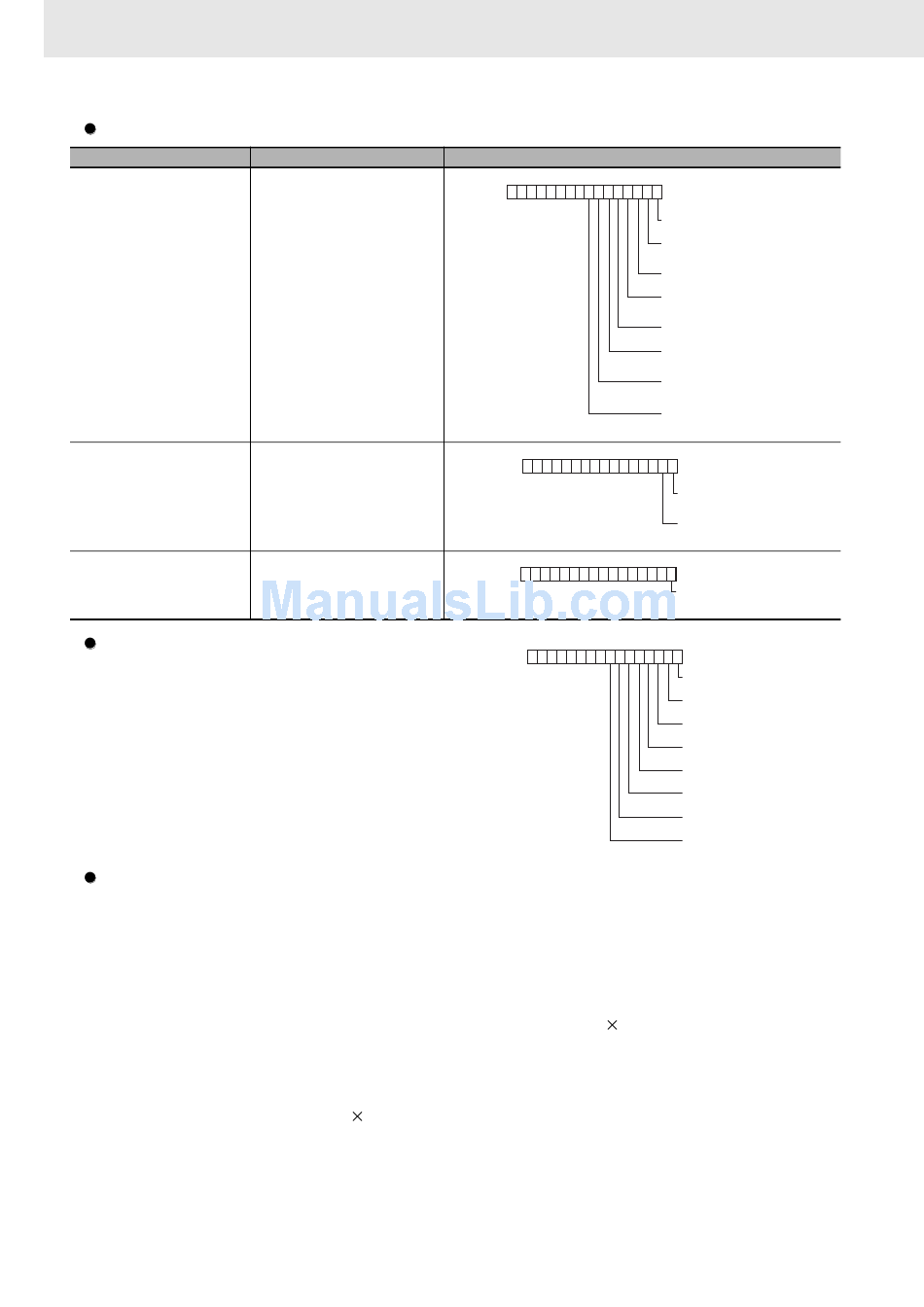

Reading Status (C = 0001 hex)
Port and mode
Pulse output
High-speed counter input
PWM(891) output
Reading the Results of Range Comparison
(C = 0002 hex)
If C is 0002 hex, PRV(881) reads the results of
range comparison and stores it in D as shown in
the following diagram.
Reading Pulse Output or High-speed Counter Frequency (C = 00
If C is 00@3 hex, PRV(881) reads the frequency being output from pulse output 0 or 1 or the frequency
being input to high-speed counter 0 and stores it in D and D+1.
0000 or 0001 hex (Reading the frequency of pulse output 0 or 1)
0000 0000 to 0001 86A0 hex (0 to 100,000)
0010 hex (Reading the frequency of high-speed counter 0)
Counter input method: Any input method other than 4 differential phase mode:
Result = 00000000 to 000186A0 hex (0 to 100,000)
Note If a frequency higher than 100 kHz has been input, the output will remain at the maximum value of 000186A0
hex.
Counter input method: 4 differential phase mode:
Result = 00000000 to 00030D40 hex (0 to 200,000)
Note If a frequency higher than 200 kHz has been input, the output will remain at the maximum value of
00030D40 hex.
726
Operation
The pulse output status is stored in D.
The high-speed counter status is
stored in D.
The PWM(891) output is stored in D.
Results of reading
15 0
D 0 0 0 0 0 0 0 0
Pulse Output Status Flag
OFF: Constant speed
ON: Accelerating/decelerating
PV Overflow/Underflow Flag
OFF: Normal
ON: Error
Pulse Output Amount Set Flag
OFF: Not set
ON: Set
Pulse Output Completed Flag
OFF: Output not completed
ON: Output completed
Pulse Output In-progress Flag
OFF: Stopped
ON: Outputting
No-origin Flag
OFF: Origin established
ON: Origin not established
At-origin Flag
OFF: Not stopped at origin
ON: Stopped at origin
Pulse Output Stopped Error Flag
OFF: No error
ON: Pulse output stopped due to error
15 0
D 0 0 0 0 0 0 0 0 0 0 0 0 0 0
15 0
D 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
15
D 0 0 0 0 0 0 0 0
@
CS/CJ/NSJ Series Instructions Reference Manual (W474)
Comparison In-progress Flag
OFF: Stopped
ON: Comparing
PV Overflow/Underflow Flag
OFF: Normal
ON: Error
Pulse Output In-progress Flag
OFF: Stopped
ON: Outputting
0
Comparison Result 1
OFF: Not in range ON: In range
Comparison Result 2
OFF: Not in range ON: In range
Comparison Result 3
OFF: Not in range ON: In range
Comparison Result 4
OFF: Not in range ON: In range
Comparison Result 5
OFF: Not in range ON: In range
Comparison Result 6
OFF: Not in range ON: In range
Comparison Result 7
OFF: Not in range ON: In range
Comparison Result 8
OFF: Not in range ON: In range
3 hex)
