3. Instructions

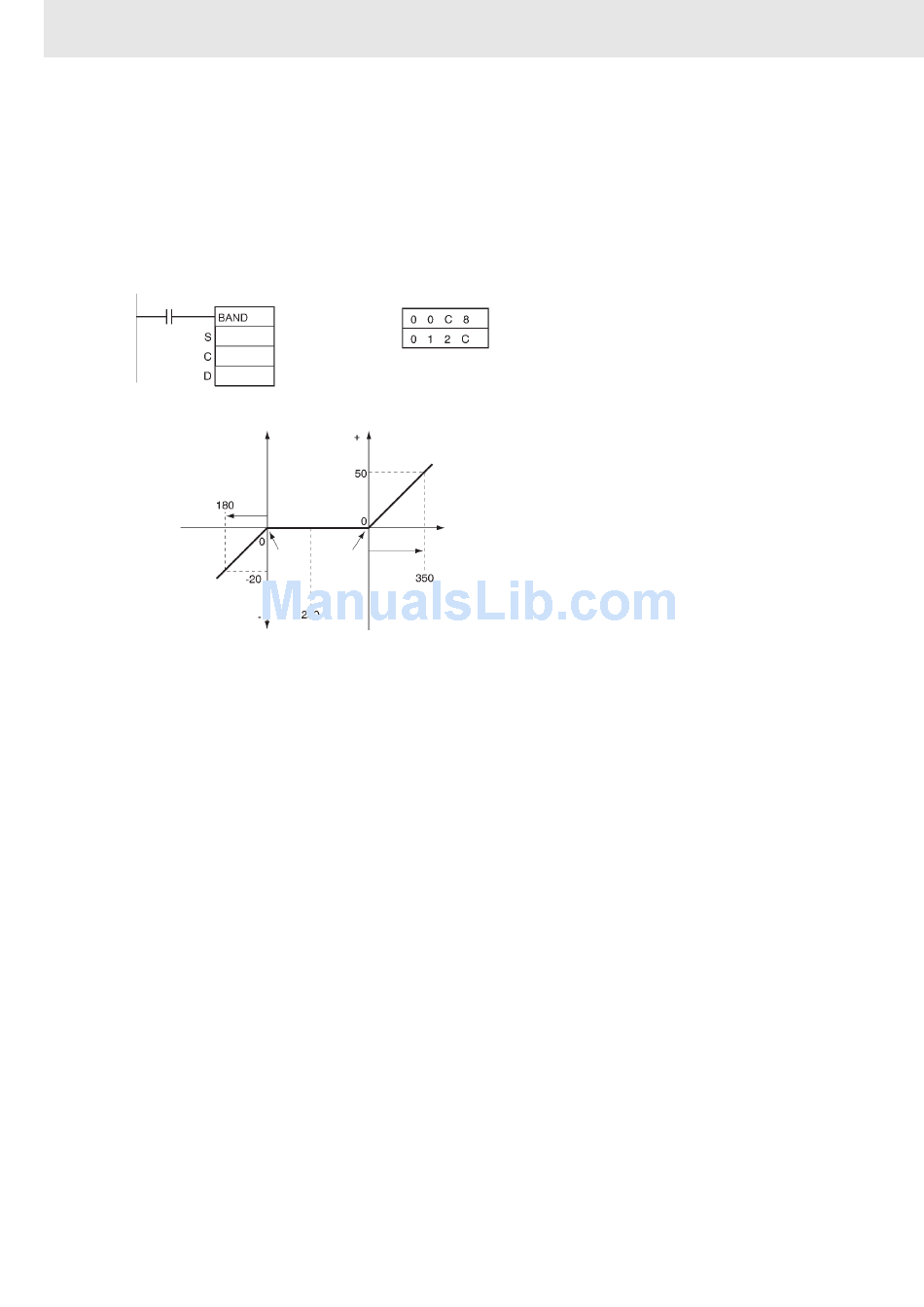

Sample program
If D100 is 00B4 hex (180), then 180–200=FFEC hex (–20) will be output to D300 because 180 is less
than the lower limit of 200.
If D100 is 00E6 hex (230), then 0 will be output to D300 because 230 is within the upper and lower
limits.
If D100 is 015E hex (350), then 350–300=0032 hex (50) will be output to D300 because 350 is greater
than the upper limit of 300.
Lower limit
654
C: D200
D100
D201
D200
D300
D300 D300
Lower Upper
limit: limit:
200 300
Upper limit
Lower limit: 200
Upper limit: 300
D100
