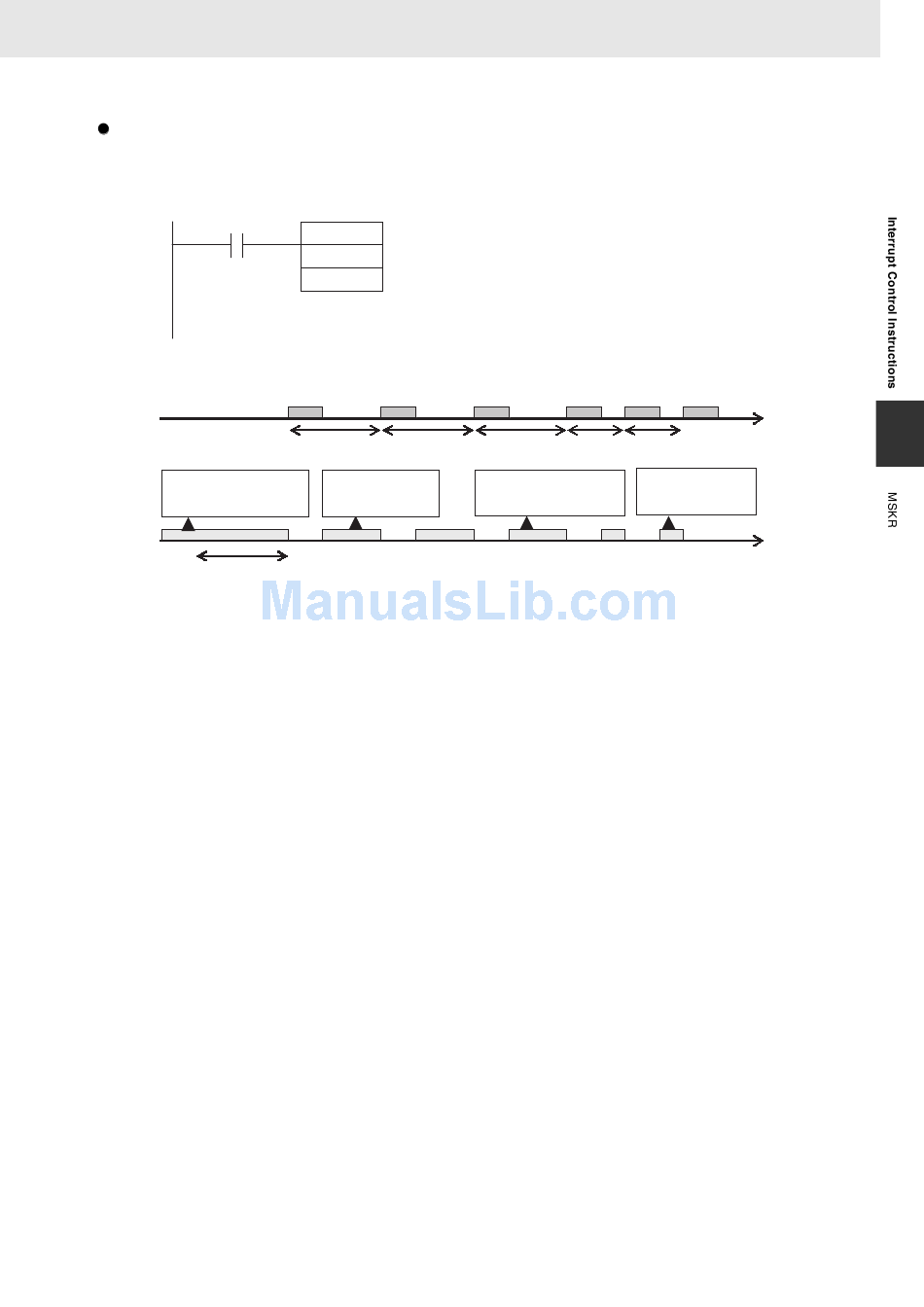

Example for Scheduled Interrupts
When W0.00 goes from OFF to ON while the internal timer is operating for scheduled interrupt 1,
MSKR(692) reads the interrupt time interval setting and outputs the setting to D100.
W0.00
Scheduled interrupt task number 3
Cyclic task
Execution of MSKS
(Interrupt enabled, 24 ms)
24 ms
CS/CJ/NSJ Series Instructions Reference Manual (W474)
@MSKR
N 5
D
D100
24 ms 24 ms
Execution of MSKR
(Reads 24.)
24 ms 12 ms 12 ms
Execution of MSKS Execution of MSKR
(Interrupt enabled, 12 ms) (Reads 12.)
3. Instructions
