Cycle Time/High-speed Processing
Communications Port Enabled Flags
278
Name Address
Background A595 and
Execution A596
IR00 Output
Background A597
Execution
DR00 Output
Background A59801
Execution
Equals Flag
Output
Note The CS1G/H-CPU@@ (-V1) and CJ1@-CPU@@ CPU Units do not support
this function.
Note The communications ports (internal logical ports) in the CPU Unit are used
both for background execution and the following instructions
• SEND(090), RECV(098), and CMND(490) (Network Communications
Instructions)
• PMCR(260) (PROTOCOL MACRO)
• TXDU(256) and RXDU(255) (the no-protocol communications instructions
used with Serial Communications Units)
Background instructions and the above instructions cannot be executed simul-
taneously on the same port. Use the Communications Port Enabled Flags to
be sure that only one instruction is executed on each port at any one time.
Note If an instruction is specified for execution in the background for a port
for which the Communications Port Enabled Flag is OFF, the ER Flag
will turn ON and the background instruction will not be executed.
The Communications Port Enabled Flags are ON when the port is not being
used and OFF when processing is being performed on the port.

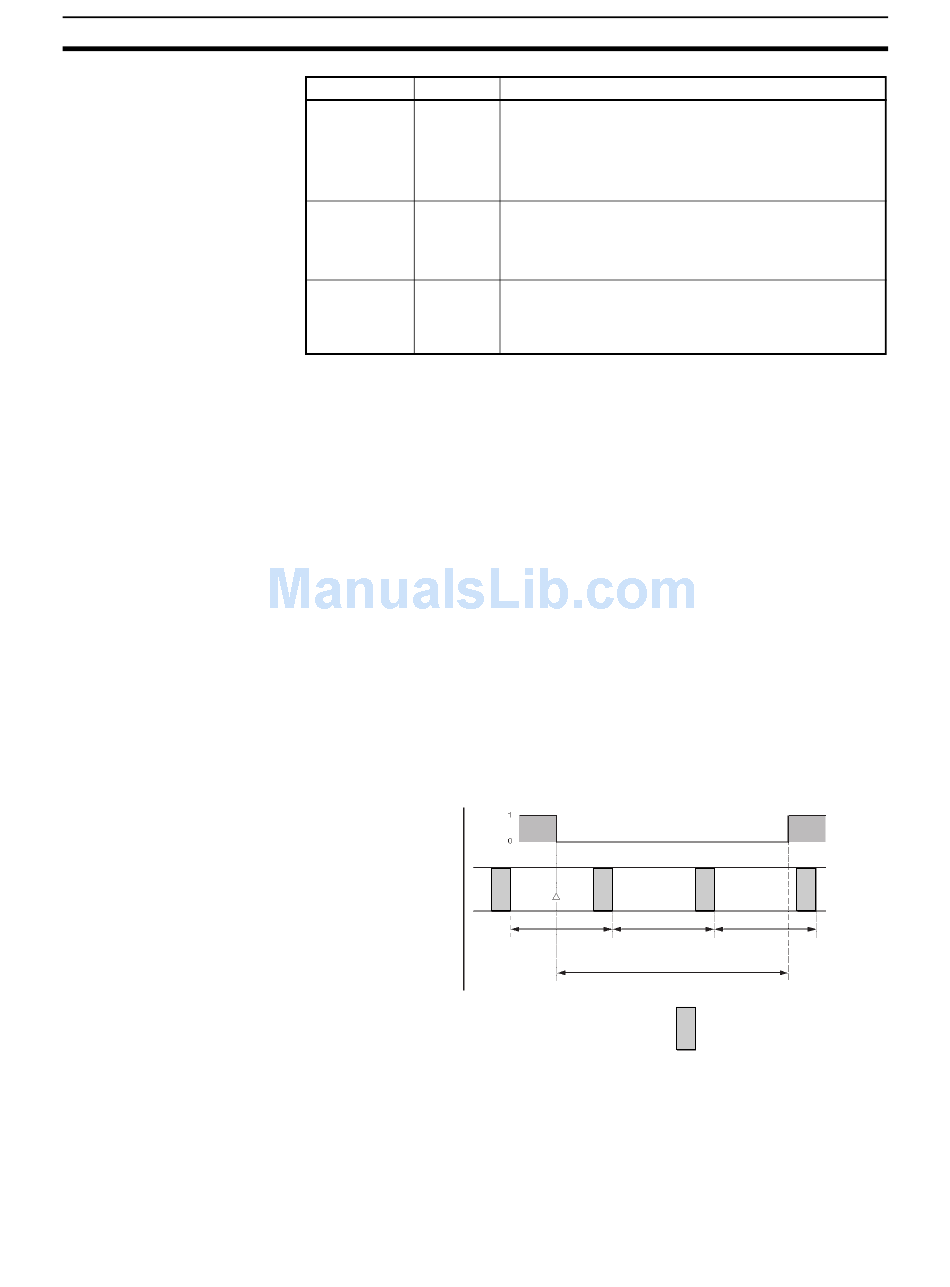

Communications Port
Enabled Flag
Background instruction
processing for user
program
Description
These words receives the output when the output of an
instruction executed in the background is specified for
an index register. No output will be made to IR00.
Range: 0000 0000 to FFFF FFFF Hex
Lower 4 digits: A595, Upper 4 digits: A596
This word receives the output when the output of an
instruction executed in the background is specified for a
data register. No output will be made to DR00.
Range: 0000 to FFFF Hex
This flag is turned ON when matching data is found for
a SRCH(181) executed in the background.
Instruction
executed
Cycle time Cycle time
Background execution
Section 6-1
Cycle time
I/O refresh
