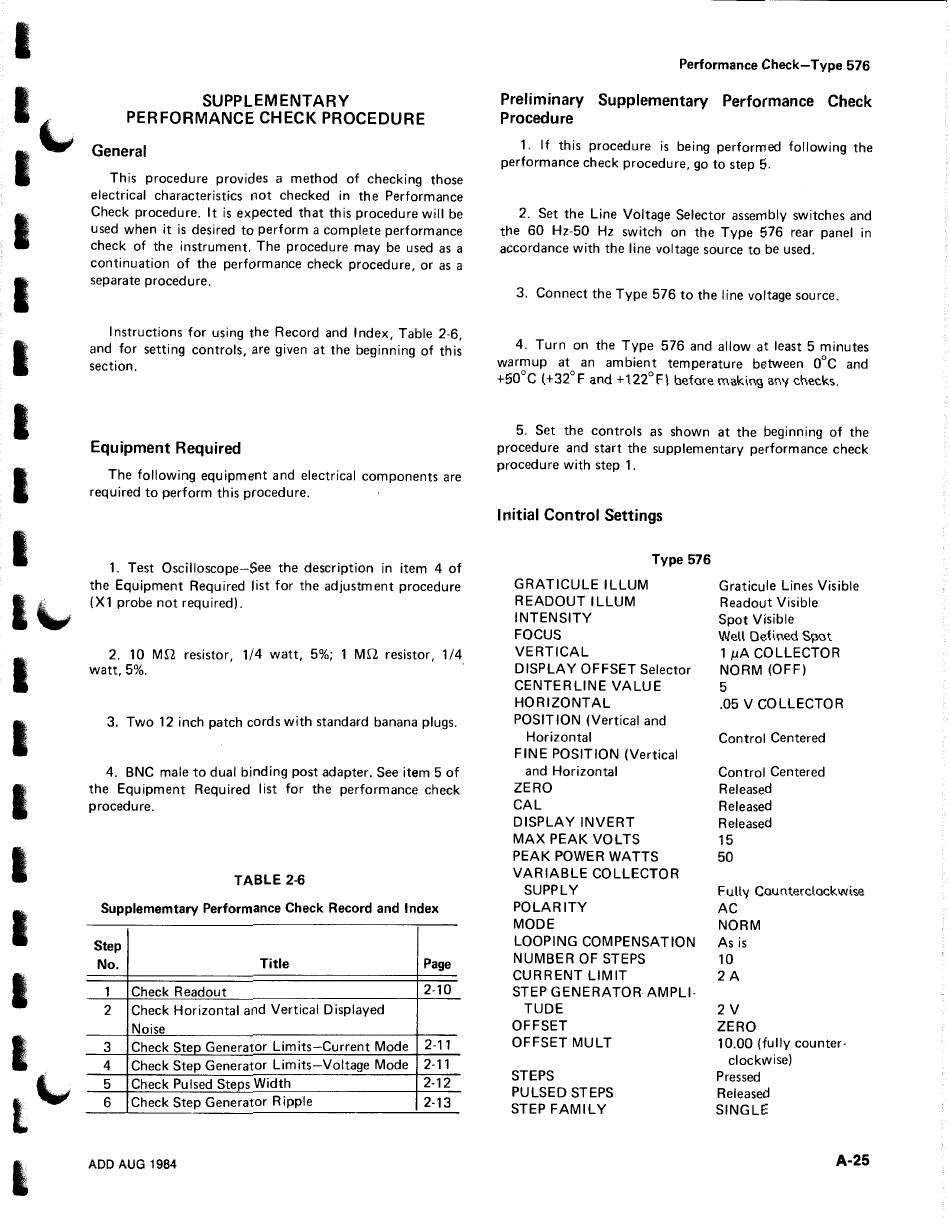

SUPPLEMENTARY
PERFORMANCE CHECK PROCEDURE
General
This procedure provides a method of checking those
electrical characteristics not checked in the Performance
Check procedure. It is expected that this procedure will be
used when it is desired to perform a complete performance
check of the instrument. The procedure may be used as a
continuation of the performance check procedure, or as a
separate procedure.
Instructions for using the Record and Index, Table 2-6,
and for setting controls, are given at the beginning of this
section.
Equipment Required
The following equipment and electrical components are
required to perform this procedure.
1. Test Oscilloscope-See the description in item 4 of
the Equipment Required list for the adjustment procedure
(X1 probe not required).
2. 10
M~
resistor, 1/4 watt, 5%; 1
M~
resistor, 1/4
watt, 5%.
3. Two 12 inch patch cords with standard banana plugs.
4. BNC male to dual binding post adapter. See item 5 of
the Equipment Required list for the performance check
procedure.
TABLE 2-6
Supplememtary Performance Check Record and Index
Step
No. Title
Page
1
Check Readout
2-10
2
Check Horizontal and Vertical Displayed
Noise
3
Check Step Generator Limits-Current Mode
2-11
4 Check Step Generator Limits-Voltage Mode
2-11
5
Check Pulsed Steps Width
2-12
6
Check Step Generator Ripple
2-13
ADD AUG 1984
Performance Check-Type 576
Preliminary Supplementary Performance Check
Procedure
1. If this procedure is being performed following the
performance check procedure, go to step 5.
2. Set the Line Voltage Selector assembly switches and
the 60 Hz-50 Hz switch on the Type 576 rear panel in
accordance with the line voltage source to be used.
3. Connect the Type 576 to the line voltage source.
4. Turn on the Type 576 and allow at least 5 minutes
warmup at an ambient temperature between 0°C and
+50°C (+32°F and +122°F) before making any checks.
5. Set the controls as shown at the beginning of the
procedure and start the supplementary performance check
procedure with step 1.
Initial Control Settings
Type 576
GRATICULE ILLUM
READOUT ILLUM
INTENSITY
FOCUS
VERTICAL
DISPLAY OFFSET Selector
CENTERLINE VALUE
HORIZONTAL
POSITION (Vertical and
Horizontal
FINE POSITION (Vertical
and Horizontal
ZERO
CAL
DISPLAY INVERT
MAX PEAK VOLTS
PEAK POWER WATTS
VARIABLE COLLECTOR
SUPPLY
POLARITY
MODE
LOOPING COMPENSATION
NUMBER OF STEPS
CURRENT LIMIT
STEP GENERATOR AMPLI-
TUDE
OFFSET
OFFSET MULT
STEPS
PULSED STEPS
STEP FAMILY
Graticule Lines Visible
Readout Visible
Spot Visible
Well Defined Spot
1 J.1A COLLECTOR
NORM (OFF)
5
.05 V COLLECTOR
Control Centered
Control Centered
Released
Released
Released
15
50
Fully Counterclockwise
AC
NORM
As is
10
2A
2V
ZERO
10.00 (fully counter-
clockwise)
Pressed
Released
SINGLE
A-25
