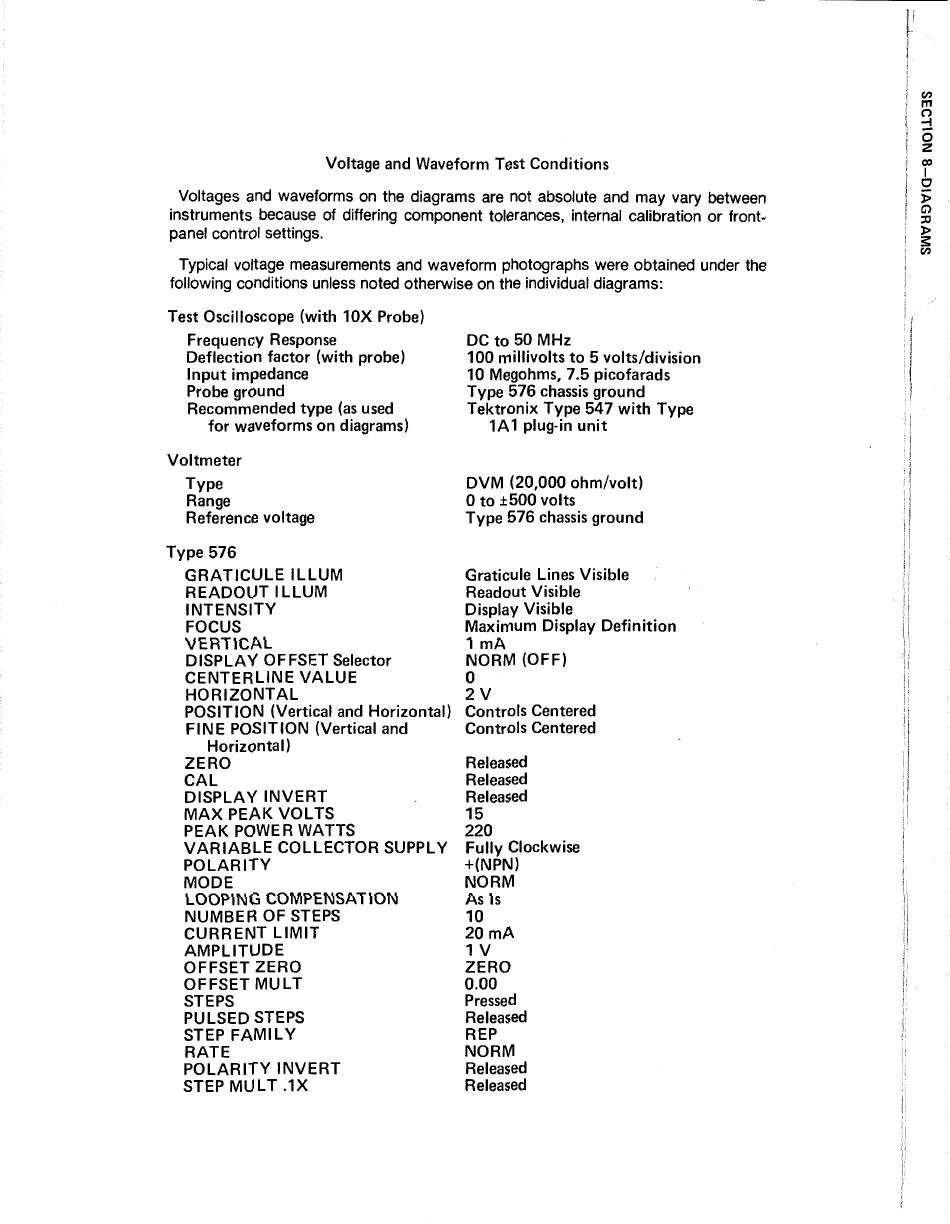

Voltage and Waveform Test Conditions
Voltages and waveforms on the diagrams are not absolute and may vary between
instruments because of differing component tolerances, internal calibration or front-
panel control settings.
Typical voltage measurements and waveform photographs were obtained under the
following conditions unless noted otherwise on the individual diagrams:
Test Oscilloscope (with 10X Probe)
Frequency Response
Deflection factor (with probe)
Input impedance
Probe ground
Recommended type (as used
for waveforms on diagrams)
Voltmeter
Type
Range
Reference voltage
Type 576
GRATICULE ILLUM
READOUT I LLUM
INTENSITY
FOCUS
VERTICAL
DISPLAY OFFSET Selector
CENTERLINE VALUE
HORIZONTAL
POSITION (Vertical and Horizontal)
FINE POSITION (Vertical and
Horizontal)
ZERO
CAL
DISPLAY INVERT
MAX PEAK VOLTS
PEAK POWER WATTS
VARIABLE COLLECTOR SUPPLY
POLARITY
MODE
LOOPING COMPENSATION
NUMBER OF STEPS
CURRENT LIMIT
AMPLITUDE
OFFSET ZERO
OFFSET MULT
STEPS
PULSED STEPS
STEP FAMILY
RATE
POLARITY INVERT
STEP MULT .1X
DC to 50 MHz
100 millivolts to 5 volts/division
10 Megohms, 7.5 picofarads
Type 576 chassis ground
Tektronix Type 547 with Type
1A 1 plug-in unit
DVM (20,000 ohm/volt)
0 to ±500 volts
Type 576 chassis ground
Graticule Lines Visible
Readout Visible
Display Visible
Maximum Display Definition
1 rnA
NORM (OFF)
0
2V
Controls Centered
Controls Centered
Released
Released
Released
15
220
Fully Clockwise
+(NPN)
NORM
As Is
10
20mA
1V
ZERO
0.00
Pressed
Released
REP
NORM
Released
Released
