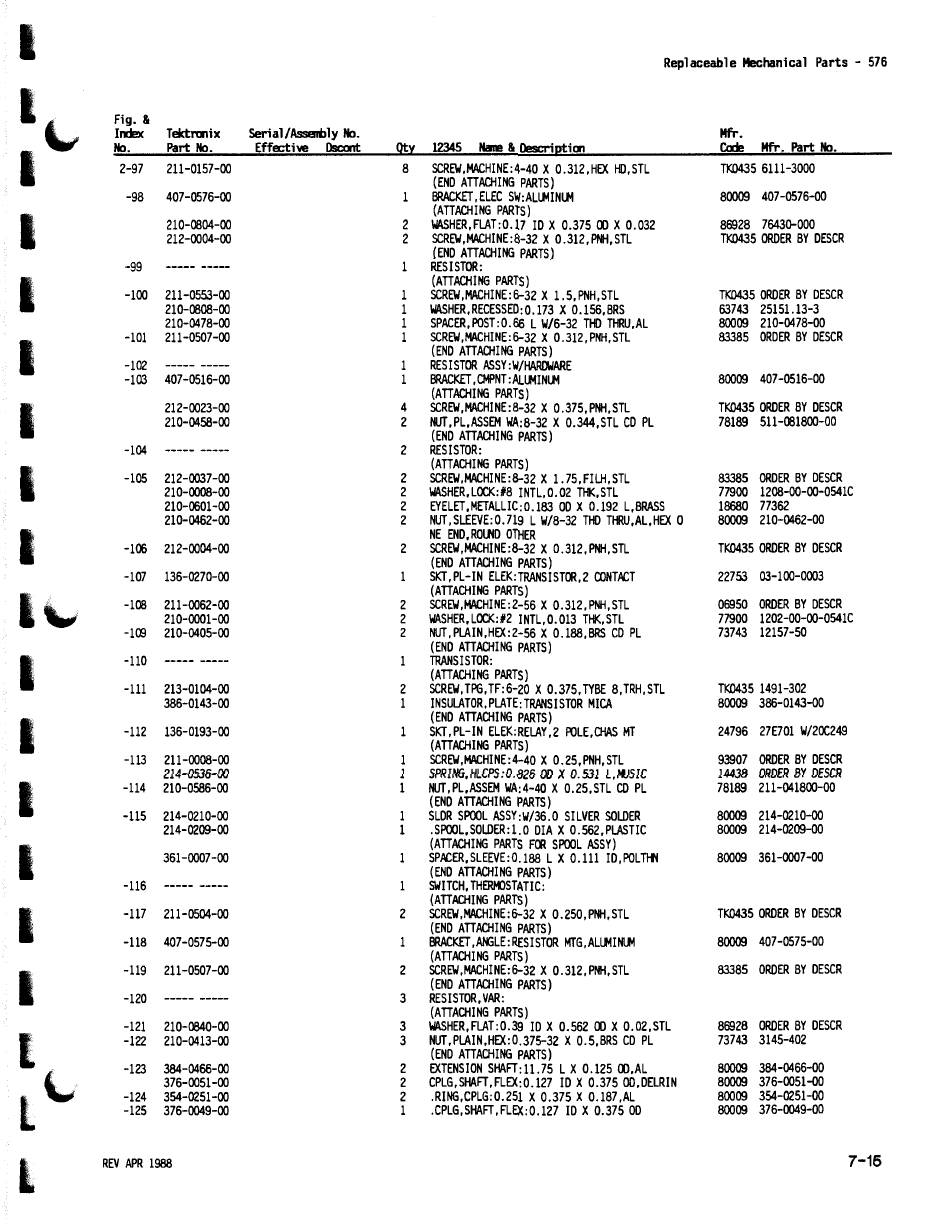

Replaceable Mechanical Parts - 576
1\...
Fig.
&
Index
Tektrcnix Serial/Assamly
No. Mfr.
No. Part No.
Effective
llscont !l!::t 12345 Na1e
&
Descrie!ion Code Mfr. Part No.
I
2-97 211-0157-00
8
SCREW,MACHINE:4-40 X 0.312.HEX HO,STL TKD435 6111-3000
(END ATTACHING PARTS)
-98 407-0576-00 BRACKET,ELEC SW:ALUMINUM 80009 407-0576-00
I
(ATTACHING PARTS)
210-0804-00
2
WASHER,FLAT:O.l7 ID X 0.375 00 X 0.032 86928 7643Q-OOO
212-0004-00
2
SCREW,MACHINE:8-32 X 0.312,PNH,STL TKD435 ORDER BY DESCR
(END ATTACHING PARTS)
-99
-----
-----
RESISTOR:
I
(ATTACHING PARTS)
-100 211-0553-00 SCREW,MACHINE:6-32 X 1.5,PNH,STL TKD435 ORDER BY DESCR
210-0808-00 WASHER,RECESSED:0.173 X 0.156,BRS
63743 25151.13-3
210-0478-00 SPACER,POST:0.66 L W/6-32 THO THRU,AL 80009 210-0478-00
I
-101 211-0507-00 SCREW,MACHINE:6-32 X 0.312,PNH,STL 83385 ORDER BY OESCR
(END ATTACHING PARTS)
-102
----- -----
RESISTOR ASSY:W/HARCWARE
-103 407-0516-00 BRACKET,CMPNT:ALUMINUM
80009 407-0516-00
(ATTACHING PARTS)
I
212-0023-00 4 SCREW,MACHINE:8-32 X 0.375,PNH,STL TK0435 ORDER BY DESCR
210-0458-00
2
NUT,PL,ASSEM WA:8-32 X 0.344,STL CD PL 78189 511-081800-00
(END ATTACHING PARTS)
-104
----- -----
2 RESISTOR:
I
(ATTACHING PARTS)
-105 212-0037-00
2
SCREW,MACHINE:B-32 X 1.75,FILH,STL 83385 ORDER BY DESCR
210-0008-00
2
WASHER,LOCK:#8 INTL,0.02 THK,STL 77900 1208-00-00-0541C
210-0601-00 2 EYELET,METALLIC:0.183 OD X 0.192 L,BRASS
18680 77362
210-0462-00
2
NUT,SLEEVE:0.719 L W/8-32 THO THRU,AL,HEX 0 80009 210-0462-00
I
NE END,ROUND OTHER
-106 212-0004-00 2 SCREW,MACHINE:8-32 X 0.312,PNH,STL
TK0435 ORDER BY DESCR
(END ATTACHING PARTS)
-107 136-0270-00 SKT,PL-IN ELEK:TRANSISTOR,2 CONTACT
22753 03-100-0003
l\.
(ATTACHING PARTS)
-108 211-0062-00 2 SCREW,MACHINE:2-56 X 0.312,PNH,STL
06950 ORDER BY DESCR
210-0001-00 2 WASHER,LOCK:#2 INTL,0.013 THK,STL 77900 1202-00-00-0541C
-109 210-0405-00
2
NUT,PLAIN,HEX:2-56 X 0.188,BRS CD PL
73743 12157-50
(END ATTACHING PARTS)
I
-110
----- -----
TRANSISTOR:
(ATTACHING PARTS)
-111 213-0104-00
2
SCREW,TPG,TF:6-20 X 0.375,TYBE 8,TRH,STL TK0435 1491-302
386-0143-00
1
INSULATOR,PLATE:TRANSISTOR MICA 80009 386-0143-QO
I
(END ATTACHING PARTS)
-112 136-0193-00 SKT,PL-IN ELEK:RELAY,2 POLE,CHAS MT 24796 27E701 W/20C249
(ATTACHING PARTS)
-113 211-0008-00 SCREW,MACHINE:4-40 X 0.25,PNH,STL
93907 ORDER BY DESCR
214-0536-00 SPRING,HLCPS:0.826 00 X 0.531 L,MUSIC
14438 ORDER BY DESCR
I -114 210-0586-00 NUT,PL,ASSEM WA:4-40 X 0.25,STL CD PL 78189 211-041800-00
(END ATTACHING PARTS)
-115 214-0210-00 SLDR SPOOL ASSY:W/36.0 SILVER SOLDER 80009 214-0210-00
214-0209-00 .SPOOL,SOLDER:1.0 DIA X 0.562,PLASTIC
80009 214-0209-00
I
(ATTACHING PARTS FOR SPOOL ASSY)
361-0007-00 SPACER,SLEEVE:0.188 LX 0.111 IO,POLTifl 80009 361-0007-00
(END ATTACHING PARTS)
-116
----- -----
SWITCH, THERMOSTATIC:
(ATTACHING PARTS)
I
-117 211-0504-00 2 SCREW,MACHINE:6-32 X 0.250,PNH,STL
TK0435 ORDER BY DESCR
(END ATTACHING PARTS)
-118 407-0575-00 BRACKET,ANGLE:RESISTOR MTG,ALUMINUM 80009 407-0575-00
(ATTACHING PARTS)
I
-119 211-0507-00 2 SCREW,MACHINE:6-32 X 0.312,PNH,STL
83385 ORDER BY DESCR
(END ATTACHING PARTS)
-120
----- -----
3
RESISTOR,VAR:
(ATTACHING PARTS)
-121 210-0840-00 3
WASHER,FLAT:0.39 ID X 0.562 00 X 0.02,STL
86928 ORDER BY DESCR
1
-122 210-0413-00 3
NUT,PLAIN,HEX:0.375-32 X 0.5,BRS CD PL 73743 3145-402
(END ATTACHING PARTS)
\.,
-123 384-0466-00 2
EXTENSION SHAFT:11.75 LX 0.125 OO,AL
80009
384-0466-00
376-0051-00 2
CPLG,SHAFT,FLEX:0.127 ID X 0.375 OO,DELRIN
80009 376-0051-QO
-124 354-0251-00 2
.RING,CPLG:0.251 X 0.375 X 0.187,AL 80009 354-0251-00
l
-125 376-0049-00
1
.CPLG,SHAFT,FLEX:0.127 ID X 0.375 00 80009 376-0049-00
l
REV APR 1988
7-15
'
