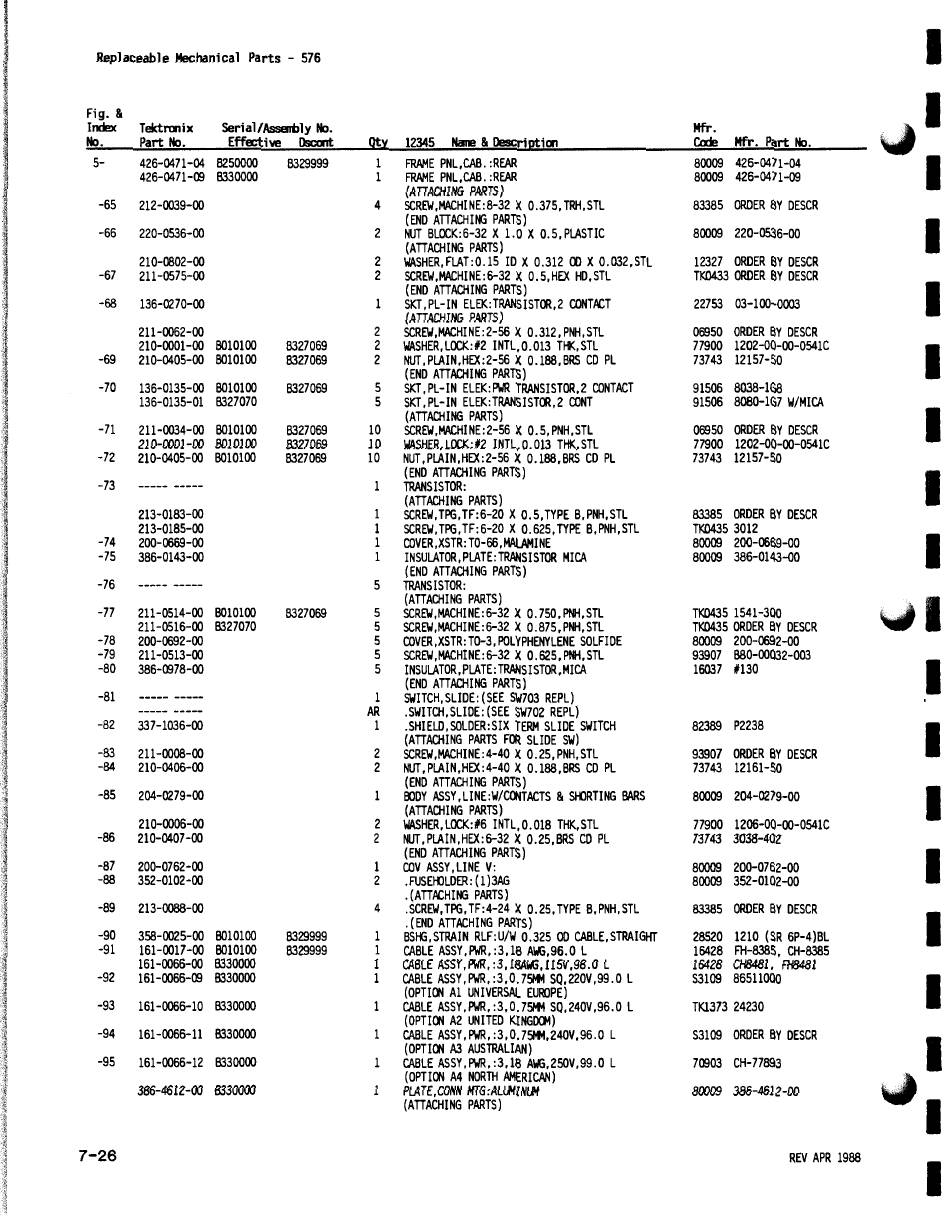

Replaceable Mechanical Parts - 576
I
Fig.
&
I
Index Tektronix Serial/Assamly
No. Mfr.
""
No.
Part
No.
Effective
Dsca1t ~:t
12345
Ncne & Descr1
~ion Caie
Mfr. Part
No.
5- 426-0471-04 8250000 6329999 1 FRIIJolE PNL,CAB. :REAR 80009 426-0471-04
I
426-0471-()9 6330000
1
FRIIJolE PNL,CAB. :REAR 80009 426-0471-09
(ATIACHING PARTS)
-65 212-0039-00 4 SCREW,MACHINE:B-32 X 0.375,TRH,STL 83385 ORDER BY DESCR
(END ATTACHING PARTS)
I
-66 220-0536-00 2 NUT BLOCK:6-32 X 1.0 X 0.5,PLASTIC 80009 220-0536-00
(ATIACHING PARTS)
210-0802-00
2
WASHER,FLAT:0.15 ID X 0.312 00 X 0.032,STL 12327 ORDER BY DESCR
-67 211-0575-00
2 SCREW,MACHINE:6-32 X 0.5,HEX HD,STL
TK0433 ORDER BY DESCR
(END ATTACHING PARTS)
I
-68
136-0270-00 SKT,PL-IN ELEK:TRANSISTOR,2 CONTACT 22753 03-100-0003
(ATIACHING PARTS)
211-0062-00
2
SCREW,MACHINE:2-56 X 0.312,PNH,STL 06950 ORDER BY DESCR
210-0001-00 8010100 6327069
2
WASHER,LOCK:#2 INTL,0.013 THK,STL 77900 1202-00-00-0541C
I
-69 210-0405-00 8010100 6327069
2
NUT,PLAIN.HEX:2-56 X 0.188,BRS CD PL 73743 12157-50
(END ATIACHING PARTS)
-70
136-0135-00 8010100 6327069 5 SKT,PL-IN ELEK:PWR TRANSISTOR,2 CONTACT 91506 8038-168
136-0135-01 8327070
5
SKT,PL-IN ELEK:TRANSISTOR,2 CONT 91506 8080-1G7 W/MICA
(ATIACHING PARTS)
I
-71
211-0034-00 8010100
6327069 10 SCREW,MACHINE:2-56 X 0.5,PNH,STL 06950 ORDER BY DESCR
210-0001-00 8010100 6327069 10 WASHER,LOCK:#2 INTL,0.013 THK,STL
77900 1202-Q0-00-0541C
-72 210-0405-00 8010100 6327069 10 NUT,PLAIN,HEX:2-56 X 0.188,BRS CD PL 73743 12157-50
(END ATTACHING PARTS)
I
-73
----- -----
TRANSISTOR:
(ATIACHING PARTS)
213-0163-00 SCREW,TPG,TF:6-20 X 0.5,TYPE B,PNH,STL 83385 ORDER BY DESCR
213-0185-00 SCREW,TPG,TF:6-20 X 0.625,TYPE B,PNH,STL TK0435 3012
I
-74 200-0669-00 COVER,XSTR:T0-66,MALAMINE 80009 200-0669-QO
-75 386-0143-00 INSULATOR,PLATE:TRANSISTOR MICA 80009 386-0143-QO
(END ATIACHING PARTS)
-76
----- -----
5 TRANSISTOR:
(ATIACHING PARTS)
~I
-77 211-0514-00 8010100 6327069
5
SCREW,MACHINE:6-32 X 0.750,PNH,STL TK0435 1541-300
211-0516-00 8327070 5 SCREW,MACHINE:6-32 X 0.875,PNH,STL TK0435 ORDER BY DESCR
-78 200-0692-00
5 COVER,XSTR:T0-3,POLYPHENYLENE SOLFIDE
80009 200-0692-00
-79 211-0513-00
5
SCREW,MACHINE:6-32 X 0.625,PNH,STL 93907 880-00032-003
I
-80 386-()978-00
5
INSULATOR,PLATE:TRANSISTOR,MICA 16037 #130
(END ATIACHING PARTS)
-81
-----
-----
1 SWITCH,SLIDE:(SEE SW703 REPL)
-----
-----
AR .SWITCH,SLIDE:(SEE SW702 REPL)
-82
337-1036-00 1 .SHIELD,SOLDER:SIX TERM SLIDE SWITCH 82389 P2238
I
(ATIACHING PARTS FOR SLIDE SW)
-63
211-0008-00
2
SCREW,MACHINE:4-40 X 0.25,PNH,STL 93907 ORDER BY DESCR
-84 210-0406-00 2 NUT,PLAIN,HEX:4-40 X 0.188,BRS CD PL 73743 12161-50
(END ATIACHING PARTS)
I
-85
204-0279-00 BODY ASSY,LINE:W/CONTACTS & SHORTING BARS 80009 204-0279-00
(ATIACHING PARTS)
210-0006-00
2 WASHER,LOCK:#6 INTL,0.018 THK,STL 77900 1206-00-00-0541C
-86 210-0407-00
2 NUT,PLAIN,HEX:6-32 X 0.25,BRS CO PL 73743 3038-402
(END ATIACHING PARTS)
I
-87
200-0762-00
1
COV ASSY,LINE V:
80009 200-0762-00
-88 352-0102-00
2 .FUSEHOLOER:(1)3AG 80009 352-0102-00
. (ATIACHING PARTS)
-89 213-0088-00
4 .SCREW,TPG,TF:4-24 X 0.25,TYPE B,PNH,STL 83385 ORDER BY OESCR
I
.(END ATIACHING PARTS)
-90 358-0025-00 8010100 8329999
BSHG,STRAIN RLF:U/W 0.325 00 CABLE.STRAIGHT 28520 1210 (SR 6P-4)BL
-91 161-0017-00 8010100 8329999 CABLE ASSY,PWR,:3,18 AWG,96.0 L
16428 FH-8385, CH-8385
161-0066-00 8330000
CABLE ASSY,PWR,:3,18AWG,115V,98.0 L 16428 CH8481, FH8481
-92 161-0066-()9 8330000
CABLE ASSY,PWR,:3,0.75MM SQ,220V,99.0 L S3109 86511000
I
(OPTION A1 UNIVERSAL EUROPE)
-93 161-0066-10 8330000
CABLE ASSY,PWR,:3,0.75MM SQ,240V,96.0 L TK1373 24230
(OPTION A2 UNITED KINGDOM)
-94 161-0066-11 8330000
CABLE ASSY,PWR,:3,0.75MM,240V,96.0 L S3109 ORDER BY DESCR
I
(OPTION A3 AUSTRALIAN)
-95
161-0066-12 8330000 CABLE ASSY,PWR,:3,18 AWG,250V,99.0 L 7()903 CH-77893
(OPTION A4 NORTH AMERICAN)
"'
386-4612-00 8330000
PLATE,CONN MTG:ALUMINUM 80009 386-4612-00
"
(ATIACHING PARTS)
I
7-26
REV APR 1988
