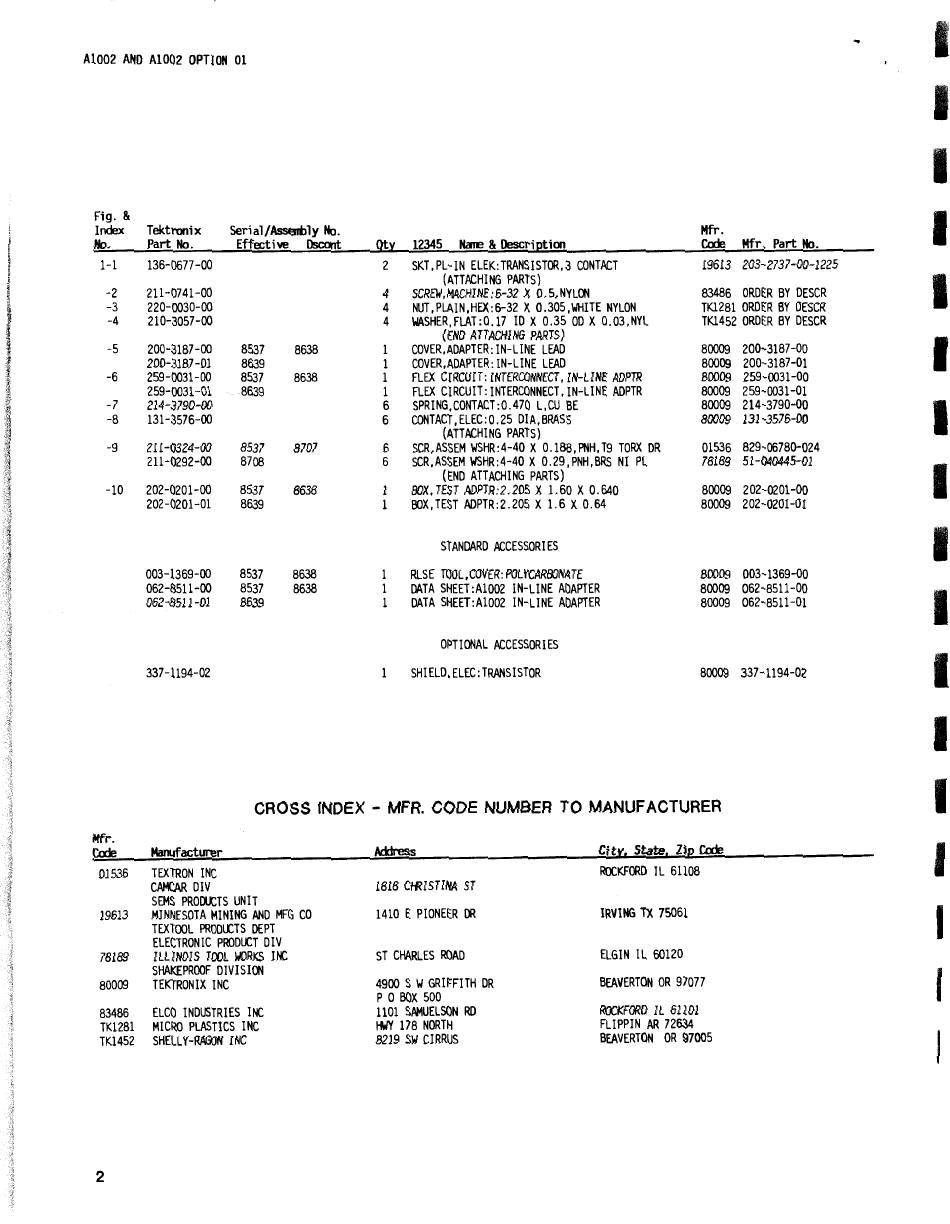

Tektronix CURVE-TRACER 576 Instruction Manual page 280

Al002 AND A1002 OPTION 01
Fig.
&
Index Tektronix
Serial/~ly
No.
Mfr.
No.
Part No. Effective
Dscont Qty
12345 Name
&
Description
Cede
Mfr. Part No.
1-1
136-0677-00 2 SKT,PL-IN ELEK:TRANSISTOR,3 CONTACT
19613 203-2737-00-1225
(ATTACHING PARTS)
-2
211-0741-00 4 SCREW,MACHINE:6-32 X 0.5,NYLON 83486 ORDER BY DESCR
-3 220-0030-00 4 NUT,PLAIN,HEX:6-32 X 0.305,WHITE NYLON TK1281 ORDER BY DESCR
-4 210-3057-00
4 WASHER,FLAT:0.17 ID X 0.35 OD X 0.03,NYL
TK1452 ORDER BY DESCR
(END ATTACHING PARTS)
-5
200-3187-00 8537 8638 1 COVER,ADAPTER:IN-LINE LEAD
80009 200-3187-00
200-3187-01 8639 1 COVER,ADAPTER:IN-LINE LEAD
80009 200-3187-01
-6
259-0031-00 8537 8638 1
FLEX CIRCUIT: INTERCONNECT, IN-LINE ADPTR 80009 259-0031-00
259-0031-01 8639 1 FLEX CIRCUIT: INTERCONNECT, IN-LINE ADPTR 80009 259-0031-01
-7
214-3790-00 6 SPRING,CONTACT:0.470 L,CU BE
80009 214-3790-00
-8 131-3576-00
6
CONTACT,ELEC:0.25 DIA,BRASS
80009 131-3576-00
(ATTACHING PARTS)
-9 211-0324-00 8537 8707 6 SCR,ASSEM WSHR:4-40 X 0.188,PNH,T9 TORX DR 01536 829-06780-024
211-0292-00 8708 6 SCR,ASSEM WSHR:4-40 X 0.29,PNH,BRS NI PL 78189 51-040445-01
(END ATTACHING PARTS)
-10
202-0201-00 8537 8638 BOX,TEST ADPTR:2.205 X 1.60 X 0.640 80009 202-0201-00
202-0201-01 8639
BOX,TEST ADPTR:2.205 X 1.6 X 0.64
80009 202-0201-01
STANDARD ACCESSORIES
003-1369-00 8537 8638 RLSE TOOL,COVER:POLYCARBONATE 80009 003-1369-00
062-8511-00 8537 8638 DATA SHEET:A1002 IN-LINE ADAPTER 80009 062-8511-00
062-8511-01 8639 DATA SHEET:Al002 IN-LINE ADAPTER 80009 062-8511-01
OPTIONAL ACCESSORIES
337-1194-02 SHIELD,ELEC:TRANSISTOR 80009 337-1194-02
CROSS INDEX - MFR. CODE NUMBER TO MANUFACTURER
Mfr.
Code
Manufacturer
Ackiress
City, State, Zip
Cede
01536 TEXTRON INC
ROCKFORD IL 61108
CAK:AR DIV
1818 CHRISTINA ST
SEMS PRODUCTS UNIT
19613
MINNESOTA MINING AND MFG CO
141D E PIONEER OR
IRVING TX 75061
TEXTOOL PRODUCTS DEPT
ELECTRONIC PRODUCT DIV
78189
ILLINOIS TOOL WORKS INC
ST CHARLES ROAD
ELGIN IL 60120
SHAKEPROOF DIVISION
80009 TEKTRONIX INC
4900 S W GRIFFITH DR
BEAVERTON OR 97077
P 0 BOX 500
83486 ELCO INDUSTRIES INC
1101 SAMUELSON RO
ROCKFORD IL 61101
TK1281 MICRO PLASTICS INC
I-MY
178 NORTH
FLIPPIN AR 72634
TK1452 SHELLY-RAGON INC
8219 SW CIRRUS
BEAVERTON OR 97005
